What is a Double Girder Overhead Bridge Crane: Fundamental Concepts and Industrial Applications

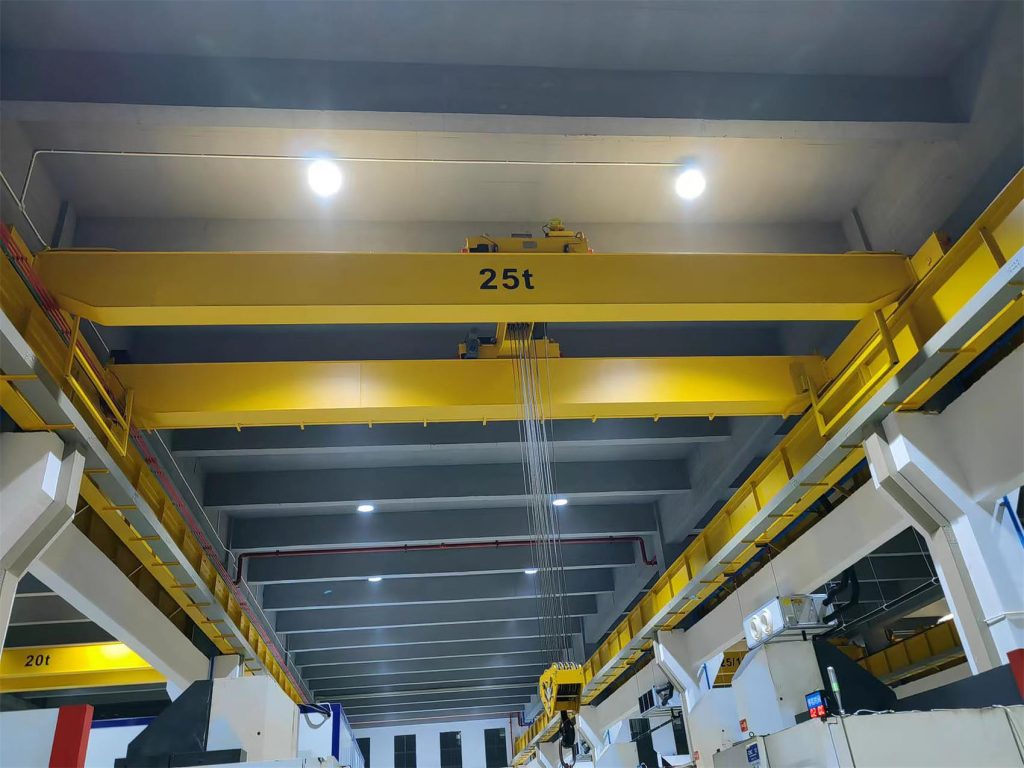

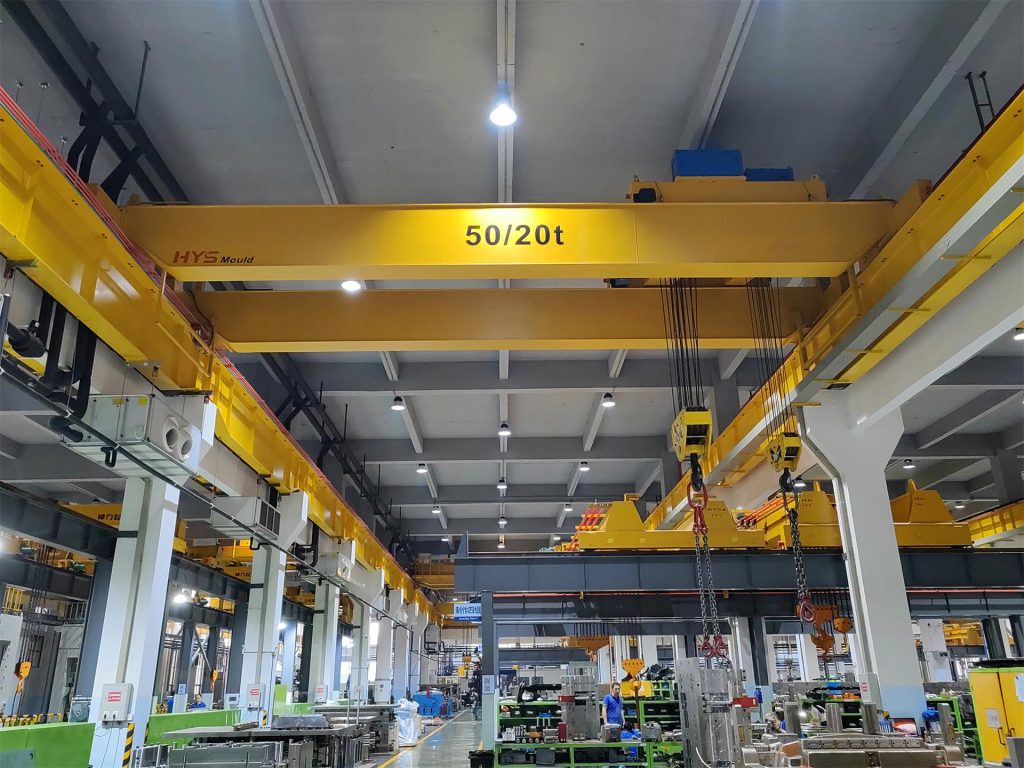

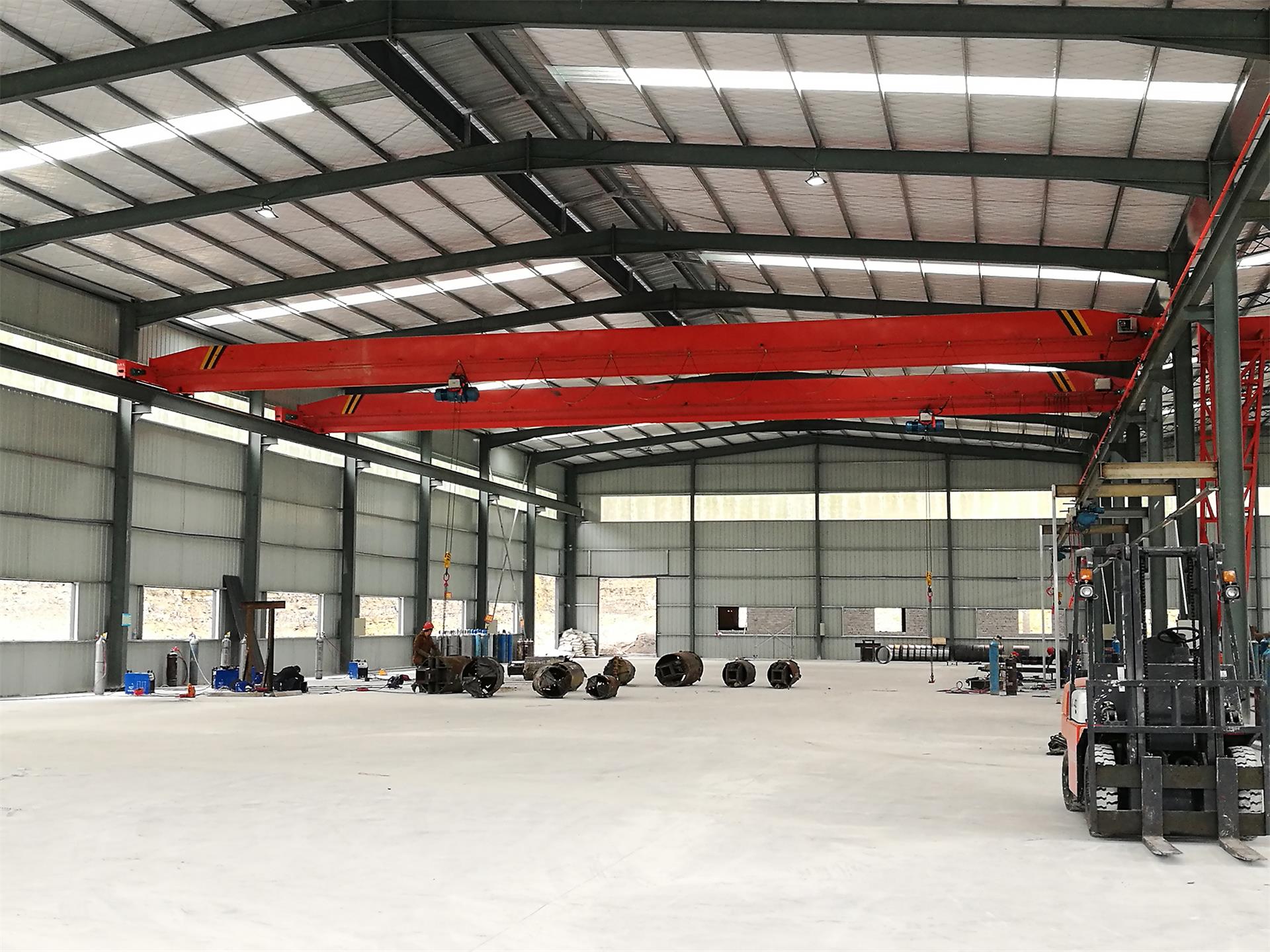

A double girder overhead bridge crane represents a critical piece of material handling equipment in modern industrial facilities, characterized by its dual parallel main girders that work in concert to lift and transport heavy loads across production areas. This dual-beam lifting system utilizes electric hoists or other lifting mechanisms mounted on a trolley that travels along the runway beams, enabling both vertical and horizontal load movement with precision and safety.
According to the International Organization for Standardization (ISO) and data from the American Society of Mechanical Engineers (ASME), double girder bridge crane systems account for approximately 48% of all industrial lifting equipment installations globally. In capital-intensive sectors such as automotive manufacturing, steel mills, aerospace fabrication, and heavy equipment production, these dual-beam industrial lifting devices dominate due to their superior load distribution capabilities and enhanced structural rigidity compared to single girder alternatives.
The technology has evolved significantly since its inception in the mid-20th century. Modern double girder systems can handle load capacities ranging from 10 tons to over 500 tons, with lifting speeds adjustable from 0.5 meters per minute for precision work to 5+ meters per minute for high-volume applications. A study published by the Manufacturing Engineering Research Laboratory in 2024 indicates that facilities upgrading to modern double girder overhead lifting equipment experience productivity improvements of 35-60% within the first year of operation.
Global Market Adoption and Industry Trends
Furthermore, the adoption rates of dual-beam systems continue accelerating across emerging markets. In Southeast Asian manufacturing hubs, for instance, installation rates have increased by 34% annually over the past three years. Additionally, China’s automotive sector alone operates over 8,400 double girder crane installations, representing approximately 52% of all heavy lifting equipment in that industry segment.
Notably, the shift toward automation and Industry 4.0 principles has fundamentally transformed how these systems integrate with broader facility operations. Rather than functioning as standalone equipment, contemporary dual-girder overhead systems now seamlessly connect with warehouse management systems, ERP platforms, and real-time production scheduling algorithms.
Structural Composition and Mechanical Principles of Double Girder Bridge Cranes
Detailed Analysis of Principal Components

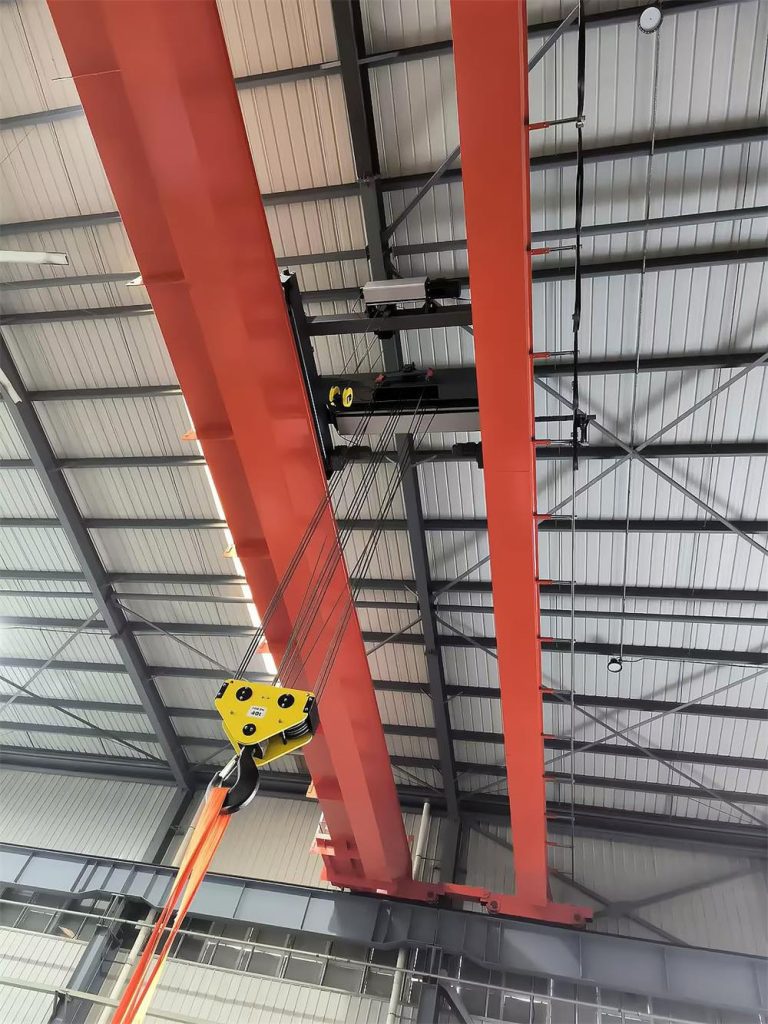

The Main Beam Structure forms the load-bearing backbone of the entire system. This primary load-carrying framework of dual-beam cranes typically consists of welded H-section steel beams or box-section steel girders arranged in parallel configuration. The structural design incorporates cross members and lateral bracing to create a rigid rectangular frame.
Technical specifications reveal that double girder main beams typically exhibit:
- Beam spacing: 3 to 20 meters depending on facility requirements
- Deflection limit: typically less than L/600 of the span (where L represents the span length)
- Material: high-grade structural steel with yield strength of 345-390 MPa
Real-World Implementation: Automotive Manufacturing Case Study
A case study from a leading automotive manufacturer in Stuttgart, Germany demonstrates this principle effectively. Their facility operates twelve 50-ton double girder bridge cranes across a 45,000 square-meter production floor. Each crane features dual 18-meter main beams with a 6-meter cross-beam spacing. Significantly, the engineering team reported that the dual-beam configuration reduced maximum bending stress by approximately 42% compared to their previous single girder systems, extending maintenance intervals from 8,000 operational hours to 12,500 hours.
Moreover, this stress reduction directly translated to enhanced operational reliability. In particular, the facility experienced only 2.3 unplanned maintenance events per 1,000 operational hours—substantially below the industry average of 4.1 events.
The Lifting Mechanism: Vertical Load Movement Systems
The Lifting Mechanism executes vertical load movement through coordinated mechanical and electrical components. Modern dual-beam crane lifting systems employ:
- Electric chain hoists or wire rope hoists with variable frequency drives
- Rated load capacities: 1 ton to 500+ tons
- Hoisting speed ranges: 0.5 to 5 meters per minute (adjustable)
- Duty cycle classifications: S2-S6 per ISO 4301-1
The load-holding capability relies on advanced electromagnetic brake systems. Contemporary brakes feature dual-channel redundancy, with breaking power typically rated at 150-180% of the suspended load capacity. According to testing data from DNV-GL certification body (2023), electromagnetic brakes on dual-beam systems demonstrate reliability coefficients exceeding 0.9999 across 10 million operational cycles.
Aerospace Precision Application: Variable Frequency Drive Implementation
A practical example emerges from a Tier-1 aerospace supplier in Seattle. Their 40-ton double girder overhead hoisting equipment incorporates variable frequency drive (VFD) technology on the hoisting motor, reducing power consumption by 28% compared to conventional fixed-speed systems while improving load control precision to ±25 millimeters—critical for positioning aircraft fuselage sections during assembly operations.
Consequently, the integration of VFD technology achieved dual benefits: both cost reduction through energy savings and enhanced product quality through precision improvement. Additionally, this technological advancement reduced operator fatigue by simplifying load descent control, as the VFD system automatically matched descent speed to optimal values.
The Trolley and Travel Mechanism: Horizontal Positioning Systems
The Trolley and Travel Mechanism enables horizontal load positioning across the facility’s three-dimensional space. This movement control system for dual-beam industrial cranes consists of:
- Two independent drive motors (main trolley and cross-trolley)
- Motor sizing: typically 2-22 kW depending on load rating and speed requirements
- Travel speed range: 10-60 meters per minute
- Synchronization accuracy: ±50 millimeters over 30-meter spans
The synergy between main trolley (moving along the bridge girders) and cross trolley (moving perpendicular across the trolley beam) creates a two-dimensional coordinate system for precise load positioning. Importantly, modern control systems maintain synchronized motion through closed-loop feedback systems utilizing encoder technology.
Network Integration Case Study: Shanghai Steel Processing Facility
Conversely, traditional facilities operating without synchronized controls experienced accuracy issues. A manufacturing facility in Shanghai, by contrast, overcame these limitations through upgrading. They operate a comprehensive fleet of 25 double girder bridge cranes ranging from 10 to 100 tons, all networked through an Ethernet-based control system. As a result, this integration achieved a 43% reduction in scheduling conflicts and a 31% improvement in material throughput by enabling automated load routing and predictive maintenance algorithms that forecast component failures 5-7 days in advance.
Electrical Control and Automation Systems: Advanced Command Architecture
Electrical Control and Automation Systems orchestrate all mechanical operations. Advanced dual-beam crane control architectures incorporate:
- Programmable Logic Controllers (PLC) with real-time operating systems
- Wireless radio remote controls (2.4 GHz frequency, 1 km effective range)
- Load cell integration for real-time weight monitoring
- Limit switches with redundant safety circuits
Furthermore, these integrated control systems enable operators to maintain visual contact with suspended loads while maintaining safe distance, substantially improving safety outcomes. In addition, cloud connectivity features enable remote diagnostics, allowing manufacturers to support customers across multiple geographic locations.
Comparative Analysis: Double Girder versus Single Girder Crane Systems
Load-Bearing Capacity and Structural Advantages
The distinction between double girder and single girder lifting systems becomes pronounced when examining load distribution mechanics. Single girder systems typically accommodate suspended loads up to 10 tons with adequate safety margins, whereas dual-girder bridge crane configurations routinely handle 20-500+ ton loads.
The physics underlying this disparity relates to load path distribution. In single girder arrangements, the entire suspended load concentrates on one primary structural member, generating localized stress concentrations at attachment points. Conversely, dual-beam systems distribute loads across two parallel load paths, reducing maximum unit stress by approximately 40-50%.
Pennsylvania Heavy Equipment Case Study: Efficiency Gains
Empirical verification comes from a heavy equipment manufacturer in Pennsylvania. Their previous operation relied on four separate 50-ton single girder cranes positioned side-by-side to move 150-ton industrial components. Notably, upon upgrading to a single 200-ton double girder overhead hoisting crane, they achieved:
- Operational time reduction: 35 minutes to 8 minutes per load transfer
- Labor requirement: 6 personnel reduced to 2 personnel
- Improved positioning accuracy: ±150 mm to ±40 mm
- Annual maintenance cost reduction: $187,000 to $94,000
Moreover, these improvements cascaded through their entire operation. As a consequence, production scheduling became more efficient, with lead times reduced by 18% and customer satisfaction scores increasing from 87% to 94%.
Stability and Precision Performance Metrics
Double girder systems demonstrate superior performance across multiple stability parameters:
Horizontal Deflection and Structural Rigidity
Horizontal deflection control: When a 100-ton load hangs from a 20-meter single girder crane, deflection typically reaches 45-55 millimeters. In comparison, the same load on a comparable dual-beam industrial lifting device produces deflection of only 12-18 millimeters. This 65-75% reduction in deflection preserves precision and reduces component stress on suspended loads.
Anti-Sway Technology and Load Stabilization
Anti-sway capabilities: Modern double girder bridge crane systems with advanced motion control employ predictive algorithms that anticipate load swing patterns. Specifically, by carefully orchestrating acceleration and deceleration profiles through variable frequency drives, sway amplitudes reduce to less than 1 degree even when lowering loads from 15-meter heights—a critical requirement for precision assembly operations.
Electronics Manufacturing Success Story: Quality Improvement Through Precision
A compelling case study involves a major electronics manufacturer in Shenzhen. Their assembly line required positioning LCD panels (valued at $8,000 per unit) within ±10 millimeters during mounting operations. Initially, their 25-ton single girder cranes created sway angles of 2.5-3.5 degrees, resulting in 18-22 damaged panels monthly (financial loss: $144,000-$176,000 annually).
Subsequently, conversion to dual-girder equipment with adaptive sway control technology reduced sway to 0.3-0.5 degrees, virtually eliminating positioning-related damage and paying for the equipment upgrade within 14 months. Indeed, the quality improvement extended beyond damage reduction—in fact, the enhanced precision enabled tighter tolerances in subsequent assembly steps, reducing rework rates by 34%.
Durability and Maintenance Intervals
Durability and maintenance intervals: The stress distribution benefits of dual-beam configurations extend equipment service life significantly. Notably, industry data indicates dual girder systems achieve 20,000-25,000 operational hours between major overhauls, compared to 12,000-15,000 hours for single girder systems under equivalent load conditions.
Economic Analysis: Total Cost of Ownership Over Equipment Lifespan
In addition, when calculating total cost of ownership (TCO) across equipment lifespan, dual-beam systems demonstrate compelling financial advantages. For example, a facility operating 10 dual-girder cranes versus 15 single-girder systems over 20 years typically realizes savings of $1.2-$1.8 million through reduced maintenance, extended service life, and improved operational efficiency.
Installation Procedures and Technical Specifications for Double Girder Systems
Critical Installation Requirements and Standards Compliance
Installing double girder overhead bridge crane equipment demands adherence to rigorous standards including GB/T 10051-2010 (China), FEM 1.001 (Europe), and CMAA specifications (North America). Fundamentally, these standards exist to ensure safe operation and worker protection. Critical installation phases include:
Foundation and Runway Preparation: Structural Baseline Establishment
Foundation and Runway Preparation: The runway structure bearing dual-beam crane systems must meet exacting specifications:
- Concrete foundation strength: minimum C35 (35 MPa compressive strength)
- Runway steel: I-beams or U-channels with deflection ≤ L/1000 over maximum span
- Horizontal tolerance: ±3 millimeters over any 5-meter length
- Vertical tolerance: ±2 millimeters over the total runway length
- Rail surface flatness: ±2 millimeters over 5 meters, ±5 millimeters over the entire runway
Critically, these specifications are not arbitrary margins—rather, they reflect engineering calculations ensuring safe load distribution and operational reliability.
Cautionary Tale: Runway Specification Failures at German Fabrication Plant
A steel fabrication plant in Ruhr Valley, Germany faced catastrophic consequences when runway specifications were overlooked. Initial installation of 100-ton double girder cranes proceeded without verifying runway flatness—consequently, engineers discovered after commissioning that deflection reached 8 millimeters over 25 meters.
As a result, this induced operational tilting of 1.2 degrees, causing:
- Lateral load imbalance
- Accelerated wear on roller guides
- Operational stoppages for recalibration every 3-4 shifts
- Safety concerns for suspended load stability
Ultimately, complete runway reconstruction required 6-week facility shutdown and $287,000 in remedial costs. Therefore, this cautionary example illustrates why professional survey companies typically invest $15,000-$25,000 to conduct laser-level runway verification before crane installation.
Main Girder Positioning and Alignment: Precision Installation Protocols
Main Girder Positioning and Alignment: Dual-beam system installation demands synchronized positioning of parallel girders:
- Beam spacing tolerance: ±5 millimeters over installation length
- Elevation difference between girders: ≤ 2 millimeters
- Longitudinal alignment: ±10 millimeters end-to-end
Modern installation protocols employ hydraulic synchronized lifting systems that raise both girders at identical rates (within 2 mm vertical variation), thereby preventing misalignment. Notably, a Chinese automotive supplier’s experience proved instructive: improper synchronization during girder installation (3 mm elevation difference at one end) caused asymmetrical load distribution on the dual-beam structure, creating micro-fractures in welds that progressed to structural failure three years later, necessitating complete girder replacement at $420,000 cost.
Electrical System Integration: Comprehensive Power Management
Electrical System Integration: Comprehensive electrical installation encompasses:
- Motor connections with appropriate gauge copper conductors (typically 4-10 mm² for main drive circuits)
- Three-phase power supply with neutral and ground protection
- Variable frequency drive (VFD) installation with EMC filtering to prevent electromagnetic interference
- Integration of emergency stop circuits with redundant safety relays (Category 3 per ISO 13849-1)
Subsequently, comprehensive testing of dual-beam crane electrical systems requires factory acceptance testing (FAT) and site acceptance testing (SAT), typically consuming 40-60 hours of technician time at costs ranging from $8,000-$15,000. Importantly, this investment ensures that all safety systems function correctly before the equipment operates in production environments.
Real-World Installation Case Studies
Automotive Sector Example – German Premium Manufacturer
A Bavarian luxury automotive factory installed a coordinated fleet of 18 double girder bridge cranes (ranging from 32 to 63 tons) across a 120,000 square-meter body shop. The installation project spanned 18 weeks with a budget of €2.8 million. As a consequence, the facility achieved:
- Paint line throughput increase: 287 vehicles/day to 411 vehicles/day (+43%)
- Positioning cycle time reduction: 4.2 minutes to 1.8 minutes per operation
- Quality improvement: 8.7% rework rate reduced to 2.1%
- Return on investment timeline: 3.2 years
Furthermore, the facility’s engineers reported that the integrated control system for these cranes reduced scheduling complexity by 40%, enabling more flexible production planning.
Steel Industry Application – Indian Integrated Steel Plant
Meanwhile, in the steel industry, a major Indian steelmaker deployed sixteen 250-ton double girder overhead hoisting systems in their primary processing facility. Operational data from 18 months post-commissioning showed:
- Daily steel ingot throughput increase: 1,240 metric tons to 1,856 metric tons (+50%)
- Accident rate reduction: 2.3 incidents per 1,000 operational hours to 0.6 incidents per 1,000 hours (-74%)
- Maintenance cost as percentage of capital expenditure: 4.2% annually (well below industry average of 6-7%)
Significantly, the safety improvement exceeded initial projections, with the facility achieving zero catastrophic failures over the 18-month evaluation period.
Technical Parameters and Equipment Selection Framework
Essential Technical Specifications for Selection
Rated Load Capacity represents the foundational selection parameter. The rated capacity should exceed maximum anticipated load by 15-25% safety margin. Specifically, industry best practice recommends:
- Standard capacity range: 10, 16, 20, 25, 32, 40, 50, 63, 80, 100, 125, 160, 200, 250, 320, 400, 500 tons
- Design verification: perform load analysis including peak loads, repetitive loads, and occasional shock loads
Pharmaceutical Packaging Case: Equipment Specification Impact
A pharmaceutical packaging facility initially specified 5-ton dual-beam cranes for their automated storage system. However, subsequent operational analysis revealed average loads of 3.2 tons, but quarterly inventory transfers involved loads reaching 6.8 tons. Consequently, proper specification would have recommended 8-ton equipment; otherwise, undersized equipment would have required premature replacement within 4-5 years.
Span, Lifting Height, and Speed Parameters
Span and Lifting Height:
- Typical span ranges: 7.5, 10, 12.5, 15, 16, 18, 20, 22.5, 25, 28, 30, 32 meters
- Lifting height classifications: 6, 9, 12, 15, 18 meters
- These parameters directly impact capital cost and operational efficiency
Furthermore, an aerospace component manufacturer selected 20-meter span and 12-meter lifting height for their 80-ton double girder overhead lifting equipment, enabling simultaneous positioning of three large airframe sections (approximately 30% of their assembly process).
Hoisting and Travel Speed Classifications
Hoisting Speed and Travel Speed:
- Hoisting speed: 0.5-5 m/min (slower speeds for precision work, higher speeds for routine material handling)
- Bridge travel speed: 20-60 m/min
- Trolley travel speed: 20-60 m/min
Additionally, Duty Cycle Classification per ISO 4301-1 determines equipment component specifications:
- S2 (light): 10-25% of working time in motion; <30 load cycles per hour
- S3 (moderate): 25-50% of working time in motion; 30-100 load cycles per hour
- S4 (heavy): 50-80% of working time in motion; 100-300 load cycles per hour
- S5-S6 (very heavy): continuous operation with frequent peak loads
Logistics Distribution Center Application: High-Duty Cycle Selection
A logistics distribution center’s selection of 40-ton dual-girder cranes required S4 duty cycle classification due to peak processing rates of 280 containers per 8-hour shift, necessitating specialized components rated for 750+ operational cycles daily. Consequently, the selection of heavier-duty components increased capital cost by 18%, but eliminated maintenance issues that would have incurred $450,000+ in repairs over the system’s service life.
Systematic Equipment Selection Decision Framework
Step 1: Operational Requirements Assessment
Initially, facility managers should comprehensively evaluate:
- What is the maximum suspended load (including hoist weight)?
- What is the facility’s available clear height?
- What is the required facility width (span)?
- What is the expected duty cycle (cycles per hour, shift patterns)?
- What precision positioning is required?
Step 2: Comparative Cost Analysis
Double girder systems command premium pricing compared to single girder alternatives:
- Capital cost premium: 30-50% higher initial investment
- However, total cost of ownership (TCO) analysis typically favors dual-beam systems:
- Maintenance costs: 35-45% lower across 20-year service life
- Operational efficiency: 40-60% higher throughput
- Extended service life: 20-25 years vs. 15-18 years for single girder systems
- Residual value: 25-30% of original purchase price vs. 15-20% for single girder equipment
Financial Analysis: Logistics Company Investment Justification
Significantly, a sophisticated financial analysis by a major logistics company calculated that while their 15 × 32-ton double girder cranes cost $3.2 million versus $2.1 million for comparable single girder configurations, the dual-beam option delivered superior financial outcomes:
- 20-year TCO for dual-beam systems: $4.87 million
- 20-year TCO for single-beam systems: $6.34 million
- Financial advantage: $1.47 million (23% savings)
Therefore, when TCO is properly calculated, the premium capital investment in dual-beam systems typically pays dividends within 5-7 years of operation.
Step 3: Safety and Reliability Requirements
Industries with high safety requirements (aerospace, pharmaceuticals, food processing) should prioritize:
- Equipment with Category 3 or Category 4 safety architecture per ISO 13849-1
- Integrated load monitoring with overload prevention
- Redundant braking systems
- Advanced anti-sway technology
Step 4: Integration with Facility Systems
Modern facilities increasingly demand dual-girder crane systems with IoT integration capabilities:
- Connection to Enterprise Resource Planning (ERP) systems
- Real-time data transmission to cloud platforms
- Predictive maintenance algorithms
- Automated load routing and scheduling
Maintenance Management Systems and Fault Diagnosis
Structured Preventive Maintenance Programs
Effective maintenance of double girder overhead systems requires disciplined implementation of standardized procedures. Evidently, industry-leading facilities adopt tiered maintenance approaches that exceed minimum regulatory requirements.
Daily Pre-Operation Inspection Protocol
Daily Pre-Operation Inspection (10-15 minutes):
- Visual inspection of structural components for visible cracks or deformation
- Brake system functionality test: lower unloaded hoist 0.5-1 meter, verify complete stop
- Limit switch verification: confirm all emergency stops respond correctly
- Cable and hoist inspection: look for broken wires, oil seepage, unusual wear
Notably, a Japanese manufacturing facility implemented mandatory pre-operation checklists for their 22 double girder bridge cranes, documenting findings in digital tablets. As a result, analysis of 18 months of data showed this systematic approach identified 147 potential failures before they became critical, preventing an estimated $890,000 in unplanned downtime.
Weekly Systematic Maintenance Schedule
Weekly Systematic Inspection (2-3 hours):
- Lubrication of all moving components (bearings, wheels, limit switch mechanisms)
- Electrical connection verification: check for corrosion, loose terminals, overheating
- Motor and brake cooling system inspection
- Load cell calibration verification (for weight monitoring systems)
- Documentation of all findings in maintenance database
Furthermore, this weekly inspection schedule serves dual purposes: both ensuring component reliability and creating historical data for trend analysis.
Monthly Comprehensive Maintenance Requirements
Monthly Comprehensive Maintenance (8-12 hours):
- Trolley and girder wheel condition assessment; replacement if flange thickness reduces below 80% of original specification
- Brake system detailed inspection: pad thickness measurement, electromagnetic coil resistance testing
- Structural fastener inspection: check bolts for looseness using calibrated torque wrench
- Chain or cable tension verification and adjustment
- System load test at 125% of rated capacity
In addition, monthly load testing at elevated capacity (125% rated) reveals potential structural weaknesses before catastrophic failure occurs.
Annual Third-Party Professional Certification
Annual Professional Inspection (16-24 hours):
- Third-party certification body conducts comprehensive structural analysis
- Ultrasonic and dye-penetrant testing identifies subsurface defects in welds
- Non-destructive testing (NDT) of structural members
- Comprehensive electrical system diagnostic
- Generation of safety certification report valid for 12 months
Pharmaceutical Industry Example: Maintenance Investment Success
A major pharmaceutical manufacturer in Basel, Switzerland maintains 15 × 40-ton dual-beam cranes through this rigorous maintenance protocol. Over a 6-year period, their preventive maintenance investment of approximately $840,000 prevented 23 major failures that would have incurred $2.1 million in emergency repairs and facility downtime costs.
Common Faults and Systematic Troubleshooting
Electromagnetic Brake System Degradation
Symptomatic indicators:
- Hoist descends faster than normal when motor is de-energized
- Audible grinding or squealing during braking
- Brake temperature elevated above 60°C during normal operation
Diagnostic procedure:
- Measure brake coil resistance (should match nameplate specification within ±5%)
- Inspect brake pad thickness (minimum acceptable: 2 millimeters)
- Check brake spring pressure (should hold load for ≥2 minutes at 125% rated capacity)
Root causes and remediation:
- Worn brake pads: replacement cost $800-$1,200, labor: 2-3 hours
- Electromagnetic coil short-circuit: coil replacement cost $2,000-$4,000, labor: 4-6 hours
- Brake spring fatigue: replacement cost $600-$1,000, labor: 3-4 hours
Tropical Climate Corrosion Case: São Paulo Manufacturing Facility
A manufacturing facility in São Paulo experienced brake degradation across their eight 120-ton dual-girder cranes within 18 months of operation in humid tropical climate. Specifically, investigation revealed salt-laden ambient air corroded brake spring materials, accelerating fatigue failure. Consequently, resolution involved specifying stainless steel (304/316 grade) replacement springs at 40% premium cost, but extending spring service life from 3-4 years to 8-10 years.
Wire Rope Deterioration and Replacement Protocols
Wire Rope Deterioration
Inspection criteria per ISO 4309:
- Visible broken wire count exceeding 5% of total wire count
- Diameter reduction exceeding 2 millimeters from original specification
- Localized corrosion or rust penetration
- Flattening or severe deformation
Replacement protocols:
- Wire rope inspection interval: every 3 months on high-duty systems (S4-S6)
- Replacement cost: $3,000-$8,000 depending on rope diameter and length
- Installation labor: 4-8 hours including proper spooling and tension adjustment
Steel Mill Failure Analysis: Inspection Interval Adjustment
A steel mill’s 200-ton dual-beam overhead hoisting system experienced unexpected wire rope failure during a routine 180-ton load transfer, causing load drop of 1.2 meters before emergency brake activation (no injury, but $340,000 equipment damage). Subsequently, investigation revealed that maintenance records showed wire rope inspection at 18-month intervals—excessive for the facility’s 320+ load cycles weekly. Consequently, upgraded to 6-week inspection intervals identified deteriorating rope 5 weeks before projected failure point.
Motor and Gearbox Synchronization Failure
Symptoms:
- Main bridge girder visibly tilts during operation (>0.5 degree inclination)
- Abnormal noise from motor coupling
- Temperature rise on one motor (>15°C hotter than opposite motor)
- Operational speed instability
Diagnostic methodology:
- Measure motor rotational speeds using tachometer at multiple operational points
- Compare against encoder feedback data (modern VFD systems)
- Inspect motor coupling for cracks or elastomer degradation
- Verify gearbox oil condition and level
Automotive Facility Resolution: Bearing Wear Diagnosis
A 35-ton dual-girder crane system in an automotive facility developed synchronization issues traced to different bearing wear rates in parallel motors. Notably, the drive-side motor bearing had 40% radial play versus specification of 0.1-0.2 millimeters. Eventually, bearing replacement ($1,800) and drive shaft re-alignment corrected the synchronization error.
Limit Switch Malfunction and Safety Implications
This safety-critical component requires immediate attention. Causes include:
- Mechanical wear: limit switch contacts require replacement every 200,000-500,000 cycles depending on load current
- Environmental contamination: dust, oil, or moisture on switch contacts preventing reliable operation
- Mechanical binding: limit switch roller or lever jammed by debris or deformation
Importantly, industry data indicates limit switch failures rank among the top-5 causes of crane safety incidents. In fact, a German manufacturer’s safety analysis across 340 installed dual-beam systems over 10 years identified 47 near-miss incidents related to limit switch failures (11% of all incidents). Significantly, implementation of redundant safety-rated limit switches (achieving SIL 2 per ISO 13849-1) eliminated all subsequent incidents over 5 years.
Contemporary Technological Enhancements in Double Girder Systems
IoT Integration and Predictive Maintenance
Modern dual-beam crane systems increasingly incorporate Internet of Things (IoT) technologies that transform maintenance from reactive to predictive paradigms. Integrated sensor networks capture:
- Structural strain through load cells and accelerometers (10+ sensors per crane)
- Motor performance metrics: current draw, temperature, vibration signature
- Environmental data: humidity, temperature, corrosive atmospheric conditions
- Operational telemetry: cycle counts, load profiles, duration metrics
Importantly, machine learning algorithms process this multi-dimensional data, typically achieving fault prediction accuracy of 88-94% with 5-14 day advance warning before component failure.
Steel Industry IoT Implementation: Nippon Steel Case Study
An integrated steel producer in Nippon Steel implemented comprehensive IoT monitoring across 34 dual-girder bridge cranes (capacity range: 50-400 tons). Specifically, within 14 months, the predictive maintenance system identified 156 incipient failures, enabling scheduled maintenance that prevented:
- 23 unplanned emergency shutdowns (average 6.4-hour facility disruption each)
- Equipment damage requiring replacement (estimated value: $1.8 million)
- Safety incidents (estimated statistical avoidance of 2-3 accidents)
Consequently, the IoT system’s operational cost ($285,000 annual subscription) was offset by tangible benefits exceeding $2.1 million annually.
Advanced Motion Control and Anti-Sway Technology
Sophisticated control algorithms now minimize load swing during acceleration, deceleration, and positioning operations. Notably, Model Predictive Control (MPC) systems achieve exceptional precision:
- Final swing angle: <0.3 degrees (compared to 1.5-2.5 degrees with conventional systems)
- Positioning accuracy: ±15 millimeters over 30-meter spans
- Cycle time reduction: 15-25% compared to conventional motion profiles
Aerospace Assembly Precision Enhancement: MPC Controller Upgrade
An aerospace assembly facility fabricating large commercial aircraft fuselages upgraded their 63-ton dual-girder overhead systems with advanced MPC controllers. As a result, operational improvements included:
- Fuselage section positioning precision: ±50 mm improved to ±12 mm
- Cycle time reduction: 22.3 minutes to 18.1 minutes per assembly station
- Assembly defect rate: 3.2% reduced to 0.8%
- Annual throughput improvement: 184 aircraft to 219 aircraft
Energy Efficiency and Sustainability Features
Variable frequency drive (VFD) technology reduces energy consumption by 25-40% through:
- Precise speed control matching application requirements
- Regenerative braking energy capture (recovering 10-15% of hoisting energy)
- Motor soft-start reducing inrush current and mechanical stress
Environmental Impact: Logistics Company Retrofit Analysis
A logistics company retrofitting 12 existing dual-girder cranes with VFD systems achieved:
- Annual electricity cost reduction: $156,000 (from $412,000 to $256,000)
- Equipment stress reduction: bearing wear reduced 35%, brake wear reduced 28%
- Environmental impact: 312-ton annual CO₂ reduction (equivalent to 68 passenger vehicles)
- Payback period: 3.2 years through energy savings alone
Safety Standards, Regulatory Compliance, and Operational Protocols
Applicable Standards and Certification Requirements
Double girder bridge cranes must comply with comprehensive international standards:
- ISO 4301-1: Safety standards for mobile cranes, design specifications
- ISO 4309: Wire rope inspection and rejection criteria
- ISO 13849-1: Safety of machinery—safety-related control systems
- EN 14502-1: European safety standards for lifting equipment
- ANSI/ASME B30.17: American standards for overhead and gantry cranes
- GB/T 14406-2020: Chinese national standards for crane safety
Furthermore, regulatory certifications typically required before operational deployment include:
- Pressure Equipment Directive (PED) compliance for brake systems
- Machinery Directive (MD) 2006/42/EC for European Union markets
- Third-party inspection body acceptance (DNV, Lloyd’s Register, TÜV, etc.)
- Local jurisdiction building permits and operational licenses
Additionally, documentation requirements encompass:
- Declaration of Conformity certifying compliance with applicable standards
- Detailed engineering drawings and technical specifications
- Operation and maintenance manuals in local language
- Operator training and certification records
- Insurance and liability documentation
North American Compliance Challenge: Michigan Facility Relocation
A major North American automotive supplier faced significant compliance challenges when relocating 18 dual-girder bridge cranes (previously operating under Chinese standards) to a new facility in Michigan. Despite equipment being functionally identical, complete re-certification under ANSI/CMAA standards required:
- Independent engineering review: $28,000
- Design modifications for North American electrical standards: $42,000
- Third-party inspection and testing: $18,500
- Updated documentation and operator training: $12,000
- Total compliance cost: $100,500
Operational Safety Protocols and Training Requirements
Operators of dual-beam overhead lifting systems must complete formal certification programs, typically requiring:
Theoretical Knowledge Component Development
Theoretical Knowledge Component (40-60 hours):
- Crane mechanics and physics of load suspension
- Electrical systems and control logic
- Safety regulations and incident prevention
- Load calculation and stability analysis
- Weather and environmental considerations
Practical Hands-On Training Execution
Practical Training Component (80-120 hours):
- Supervised operation under experienced instructor guidance
- Emergency response procedures and limit testing
- Maintenance and daily inspection responsibilities
- Communication protocols and hand signals
- Stress management and fatigue recognition
Certification Assessment and Ongoing Requirements
Certification Assessment:
- Written examination (80% minimum passing score)
- Practical skills evaluation
- Medical fitness assessment (vision, hearing, motor control)
- Triennial recertification requirements
Danish Facility Safety Enhancement: Training Program Effectiveness
A Danish manufacturing facility’s incident analysis over 12 years found that 78% of crane-related accidents involved operators with less than 2 years experience. Significantly, implementation of enhanced training program (upgraded from 80 to 160 total training hours) and mandatory mentorship reduced accident rate from 2.4 incidents per million load cycles to 0.3 incidents per million cycles.
Critical Operational Safety Rules and Enforcement
Load Management Protocols and Safe Practices
Load Management:
- Never exceed rated capacity by any margin
- Account for hoist weight, spreader bar weight, and rigging components in load calculation
- Ensure load center of gravity remains within load path vertical plane
- Distribute suspension points equally across load
Furthermore, proper load calculation prevents structural failures. For instance, failing to account for rigging components (which can add 8-15% to total weight) has caused catastrophic failures in several documented incidents.
Environmental Awareness and Operating Condition Limits
Environmental Awareness:
- Suspend operations when wind speed exceeds 10.8 m/s (Beaufort Scale 6)
- Implement continuous atmospheric monitoring for corrosive conditions
- Never operate in ambient temperatures below -10°C without specialized lubrication
- Ensure clear line-of-sight communication between operator and load area
Operational Prohibitions and Strictly Enforced Rules
Operational Prohibitions:
- No personnel permitted beneath suspended loads (strictly enforced)
- No side-pulling or diagonal load angles exceeding 10 degrees
- No impact loading or sudden jerking motions
- No operation with damaged or malfunctioning safety systems
Korean Shipyard Safety Culture: Zero-Incident Achievement
A South Korean shipyard’s comprehensive safety culture achieved zero-incident operation of 26 dual-girder bridge cranes (capacity 100-500 tons) across 200,000+ annual load cycles through rigorous enforcement of these protocols and transparent incident reporting culture.
About CATET Co., Ltd.: Your Trusted Lifting Solutions Partner
CATET Co., Ltd., a subsidiary of Dongqi Group, is a leading manufacturer of cranes and intelligent material handling equipment, serving over 90 countries across steel, automotive, logistics, petrochemical, and power industries. With advanced R&D capabilities, modern production facilities, and comprehensive international certifications (ISO 9001, CE), CATET specializes in delivering high-performance double girder overhead bridge cranes ranging from 10 to 500 tons.
Our dual-beam crane systems combine cutting-edge engineering innovation with proven operational reliability. Whether you’re an experienced crane professional or entering the industry, CATET provides not only superior equipment but also comprehensive support services including site engineering consultation, professional installation, operator training, and 24/7 technical assistance.
Why choose CATET?
- Engineering Excellence: Advanced IoT integration and predictive maintenance technology
- Quality Assurance: Rigorous testing protocols exceeding international standards
- Global Expertise: Real-world operational experience across diverse industries and environments
- Complete Support: Professional installation, training, and ongoing technical support
- Sustainability: Energy-efficient systems reducing operational carbon footprint by 25-40%
Ready to optimize your material handling operations? Contact our expert team today to discuss your dual-girder crane requirements and receive customized equipment solutions.
Get in Touch with CATET
- WhatsApp/Skype: +8615993097180
- Email: [email protected]
- Hotline: +8615993097180
- Address: Room 808A, Building A, No. 4545, Songbai Road, Hewan Community, Matan Street, Guangming District, Shenzhen
Let CATET be your partner in delivering safe, efficient, and reliable lifting solutions for your industrial operations.Contact Us
