1. Introduction to Electric Single Beam Bridge Cranes

Electric single girder overhead cranes offer high precision, compact design, and exceptional reliability, significantly improving the efficiency of current material handling operations. They are widely used worldwide in manufacturing, warehousing, and construction operations, providing excellent load handling capabilities while maximizing workspace utilization.

The advantage of the single-beam configuration is that a single main beam is used to support the lifting trolley, which can greatly save costs and space without affecting the lifting performance. It has excellent performance in the lifting capacity range of 1-30 tons.

Real-World Example: At BMW’s Leipzig manufacturing plant, a fleet of 15-ton single beam bridge cranes handles automotive components along the assembly line. The cranes’ compact design allows for installation in areas with limited headroom, while their precise positioning capabilities ensure accurate placement of engine blocks and transmission assemblies.

The M3-M5 working level classification indicates these cranes are designed for regular to intensive use, accommodating operations that require frequent lifting cycles throughout extended shifts. This classification system, established by international standards, ensures users select equipment appropriate for their operational demands.

Modern European electric single-girder overhead cranes are equipped with variable frequency drives, intelligent load detection systems, and remote error diagnosis functions. These functions help improve overall operational efficiency and enable predictive maintenance plans based on system feedback parameters.

2. Technical Specifications and Capacity Range

Lifting capacities ranging from 1 to 30 tons cover most medium-sized industrial applications. They provide ample lifting power for manufacturing and warehousing operations, significantly improving productivity while ensuring economic viability. So, how do we choose the right model to ensure it meets our workload requirements? Below, we’ll explain the technical specifications within this range to help you choose the right model.

Load Capacity Classifications:

Light Duty: 1-5 tons (suitable for parts handling, light assembly)
Medium Duty: 5-15 tons (general manufacturing, moderate production)
Heavy Medium Duty: 15-30 tons (heavy manufacturing, steel processing)

Span Specifications: Single beam bridge cranes in this capacity range typically accommodate spans from 8 to 35 meters. The maximum economical span decreases as capacity increases due to deflection considerations and structural requirements.

Real-World Example: A 20-ton single beam crane at a steel fabrication facility operates with a 25-meter span, handling structural steel beams in a workshop environment. The crane’s design incorporates camber in the main girder to compensate for deflection under full load, ensuring horizontal travel remains smooth throughout the span.

Lifting Heights: Standard lifting heights range from 6 to 18 meters, with special applications extending up to 24 meters. Height selection depends on building structure, operational requirements, and safety clearances.

Speed Specifications:

Hoisting speeds: 0.5-8 meters/minute (variable based on load and precision requirements)
Trolley travel: 2-20 meters/minute
Bridge travel: 3-30 meters/minute

Power Requirements: Electrical specifications vary significantly based on capacity and duty cycle. A typical 15-ton M4 classification crane requires approximately 25-35 kW total installed power, distributed across hoisting, trolley, and bridge drive systems.

The duty cycle rating directly impacts component sizing and electrical requirements. M5 classification requires robust electrical systems capable of handling frequent starts and stops with minimal thermal stress on motor windings and control components.

3. Understanding M3-M5 Working Level Classifications

As a key criterion for measuring a crane’s operating intensity, understanding its classification is crucial. A crane’s operating class directly impacts component selection, structural design, and the crane’s expected service life. We can select cranes of different operating classes based on the load spectrum and operating frequency of the operating environment.

M3 Classification represents regular use applications with moderate load factors and operating frequencies. Cranes in this category typically operate 4-8 hours daily with load factors averaging 0.125-0.25 of rated capacity.

Real-World Example: A automotive parts warehouse utilizes M3-rated 8-ton single beam cranes for loading and unloading delivery trucks. The cranes operate primarily during day shift hours, handling loads that average 3-4 tons, well within the classification parameters.

M4 Classification indicates intensive use with higher load factors and extended operating periods. These cranes accommodate 8-16 hours daily operation with load factors ranging from 0.25-0.5 of rated capacity.

M5 Classification represents the highest standard duty level for general industrial applications, supporting continuous or near-continuous operation with high load factors (0.5-1.0 of rated capacity). Components must withstand frequent cycling and thermal stress.

Real-World Example: A steel processing facility employs M5-rated 25-ton cranes in their continuous casting operation. These cranes operate 20-24 hours daily, handling hot steel billets weighing 15-25 tons each, requiring maximum durability and reliability.

Classification Impact on Design:

Structural Components: Higher classifications require increased safety factors and fatigue-resistant design
Electrical Systems: Enhanced insulation classes and thermal protection
Mechanical Components: Premium bearings, gears, and wear-resistant materials
Control Systems: Advanced monitoring and diagnostic capabilities

Selection Criteria: Proper classification selection requires careful analysis of operational patterns, load distribution, and environmental conditions. Under-classification leads to premature failure, while over-classification results in unnecessary capital expenditure.

4. Structural Design and Engineering Principles

European electric single-girder bridge crane has a good balance between its working strength, body weight and economy. Compared with traditional cranes, it focuses on optimizing the main beam design, ensuring the deflection limit while also meeting the requirements of equipment service life.

Main Girder Design: The single beam serves as the primary load-bearing structure, supporting both the lifted load and the trolley system. Common configurations include welded plate girders, rolled steel beams, and box beam constructions.

Real-World Example: A 12-ton crane at a machine shop utilizes a welded plate girder design with a depth of 800mm and overall length of 18 meters. The girder incorporates stiffener plates every 2 meters to prevent web buckling and maintain structural integrity under dynamic loading.

Deflection Considerations: International standards typically limit vertical deflection to span/500 for the main girder under rated load. This requirement directly influences structural depth and material selection.

End Truck Design: The end trucks transfer loads from the main girder to the runway structure while providing bridge travel capability. Key components include:

Wheel assemblies with anti-friction bearings
Drive mechanisms (motorized or idle)
Guide systems for lateral stability
Electrical conductor systems

Fatigue Analysis: M3-M5 classifications require comprehensive fatigue analysis considering load cycles, stress concentrations, and environmental factors. Design life typically ranges from 20-25 years with proper maintenance.

Real-World Example: A 30-ton crane in a steel service center underwent detailed finite element analysis during design to identify stress concentrations around trolley beam connections. The analysis led to modified weld details and additional reinforcement, extending expected service life by 30%.

Connection Details: Bolted connections allow for field assembly and future maintenance, while welded joints provide superior fatigue resistance. Modern designs incorporate both methods strategically based on accessibility and load transfer requirements.

Material Selection: High-strength, low-alloy steels provide optimal strength-to-weight ratios while maintaining weldability and cost-effectiveness. Surface protection through hot-dip galvanizing or premium paint systems ensures long-term durability.

5. Electrical Systems and Control Mechanisms

Compared to traditional electric overhead cranes, this model integrates a sophisticated electrical system, significantly improving accuracy, safety, and efficiency. The evolution from simple resistance control to advanced variable frequency drive has significantly enhanced the crane’s performance.

Power Distribution: Three-phase electrical systems dominate industrial crane applications, providing balanced loading and efficient power transmission. Voltage levels typically range from 380V to 480V for the specified capacity range.

Frequency converter cabinet for single-girder bridge crane

Motor Selection and Control:

Hoisting Motors: Wound rotor or squirrel cage designs with electromagnetic or mechanical brakes
Travel Motors: Squirrel cage motors with integral gear reducers
Control Methods: Variable frequency drives (VFDs) provide superior performance characteristics

Real-World Example: A 18-ton crane at an aluminum processing facility uses VFD-controlled AC motors throughout. The system provides stepless speed control from 0.1 to 100% of rated speed, enabling precise positioning of sensitive aluminum extrusions while reducing mechanical stress on structural components.

Control Systems Architecture:

Pendant Controls: Standard handheld units with pushbutton operation
Radio Controls: Wireless operation enhancing operator mobility
Cabin Controls: For intensive applications requiring operator comfort
Automated Systems: PLC-based controls for repetitive operations

Safety Electrical Features:

Load Monitoring: Real-time weight indication and overload protection
Anti-Collision Systems: Infrared or ultrasonic proximity detection
Emergency Stop Circuits: Hardwired safety systems independent of control logic
Phase Protection: Monitoring for phase loss and rotation

Real-World Example: A automotive assembly plant’s 10-ton crane system incorporates laser-based anti-collision technology that automatically reduces speed as cranes approach each other, preventing damage and ensuring operator safety in the busy production environment.

Energy Efficiency Features: Regenerative braking systems capture energy during lowering operations, returning power to the electrical supply. This technology can reduce energy consumption by 15-30% in applications with frequent load cycling.

Diagnostic Capabilities: Modern control systems provide real-time monitoring of motor temperatures, load cycles, and operational parameters. This data enables predictive maintenance strategies and optimizes equipment utilization.

6. Safety Systems and Protective Features

Safety is the top priority in any work environment. It is also the primary consideration in crane design and operation. The product is designed with a multi-layer protection system that protects workers, equipment and materials through active and passive safety measures.

Load Protection Systems:

Overload Protection: Electronic load cells or mechanical load blocks prevent lifting beyond rated capacity
Load Block Safety: Anti-two-blocking systems prevent cable over-winding
Controlled Load Lowering: Mechanical or electrical load brakes maintain control during lowering operations

Real-World Example: A 25-ton crane at a precast concrete facility incorporates a load monitoring system that displays actual load weight and provides visual/audible warnings at 90% and 100% of rated capacity. The system automatically prevents hoisting operations if overload conditions are detected.

Mechanical Safety Features:

Upper Limit Switches: Prevent over-hoisting and cable damage
Lower Limit Switches: Maintain minimum cable wraps on drum
Trolley Bumpers: Absorb impact energy at travel limits
Bridge Buffers: Protect against collision with runway ends

Electrical Safety Systems:

Ground Fault Protection: GFCI systems prevent electrical shock hazards
Emergency Stop Systems: Multiple E-stop locations with fail-safe operation
Lockout/Tagout: Electrical isolation systems for maintenance safety
Phase Monitoring: Protection against phase loss or incorrect rotation

Real-World Example: A manufacturing facility’s 15-ton crane system includes a comprehensive lockout/tagout system with individual disconnect switches for each motor circuit. The system requires physical key exchange between operators and maintenance personnel, ensuring equipment cannot be energized during service activities.

Operator Protection Features:

Warning Systems: Audible and visual alerts for crane movement
Dead Man Controls: Spring-return controls that stop motion when released
Ergonomic Design: Control pendants positioned for comfortable operation
Collision Avoidance: Automated systems preventing crane-to-crane contact

Environmental Protection: Sealed electrical enclosures protect control components from dust, moisture, and corrosive atmospheres. IP54 or higher ratings ensure reliable operation in challenging industrial environments.

Inspection and Certification Requirements: Regular safety inspections by qualified personnel ensure continued safe operation. Documentation systems track inspection results and maintenance activities for regulatory compliance.

7. Installation Requirements and Site Preparation

If you want your equipment to maintain high performance and long-term reliability, installation is a key consideration. Comprehensive planning, proper environmental preparation, and coordination between multiple disciplines are essential before installation to ensure optimal performance and reliability.

Runway Structure Requirements: The runway system must support crane loads, dynamic forces, and operational stresses throughout the equipment’s design life. Key considerations include:

Load Calculations: Dead load, live load, and dynamic factors
Deflection Limits: Runway beam deflection affects crane operation
Rail Installation: Proper alignment and joint details
Expansion Considerations: Thermal movement accommodation

Real-World Example: A 20-ton crane installation at a steel fabrication facility required runway beams spanning 12 meters between building columns. The structural engineer specified W24x94 beams with lateral bracing every 6 meters to limit deflection to L/600 and ensure smooth crane operation.

Foundation Requirements: Adequate foundation systems transfer crane loads to the ground while maintaining structural stability. Design considerations include:

Soil Bearing Capacity: Geotechnical analysis determines foundation requirements
Anchor Bolt Design: Proper embedment and tensile capacity
Vibration Control: Isolation systems for sensitive operations
Thermal Expansion: Joint details accommodating movement

Electrical Infrastructure:

Power Supply: Adequate capacity for starting currents and operational loads
Conductor Systems: Festoon cables or busway systems for mobile power
Grounding: Comprehensive grounding systems for safety and electromagnetic compatibility
Control Wiring: Separation from power circuits and proper shielding

Real-World Example: A food processing facility’s crane installation required special attention to electrical systems due to wash-down environments. All electrical components feature NEMA 4X enclosures with stainless steel hardware, ensuring reliable operation despite frequent high-pressure cleaning.

Installation Sequence:

Runway Installation: Rails, electrical systems, and alignment verification
Crane Assembly: On-ground assembly when possible to reduce elevated work
Lifting and Positioning: Crane placement using mobile cranes or specialized equipment
Final Alignment: Precise positioning and adjustment
Testing and Commissioning: Functional testing and safety verification

Quality Control Measures: Installation inspections verify dimensional accuracy, electrical continuity, and operational performance. Load testing confirms structural adequacy and system reliability.

Environmental Considerations: Weather protection during installation prevents damage to electrical components and ensures worker safety. Temporary enclosures may be required for sensitive installations.

8. Operation Procedures and Best Practices

The correct operation of electric single girder overhead crane requires trained personnel. Safe and efficient operation can extend the service life of the equipment and ensure maximum productivity while ensuring the safety of personnel and equipment.

Electric single girder bridge crane maintenance

Pre-Operation Inspection: Daily inspections identify potential issues before they impact operations or safety. Standard inspection items include:

Visual Inspection: Structural components, electrical connections, and wear items
Functional Testing: All motions, controls, and safety systems
Load Testing: Verification of lifting capability with light test loads
Documentation: Recording inspection results and any deficiencies

Real-World Example: A aerospace manufacturing facility implements a comprehensive pre-shift inspection program for their 12-ton crane fleet. Operators use tablet-based checklists that capture inspection data and automatically generate maintenance work orders for identified deficiencies.

Operating Techniques:

Load Assessment: Verify load weight and center of gravity before lifting
Rigging Practices: Proper sling selection and attachment methods
Movement Control: Smooth acceleration and deceleration to minimize dynamic loads
Positioning Accuracy: Precise load placement techniques
Communication: Clear signals between operator and ground personnel

Load Handling Procedures: Different load types require specific handling techniques to ensure safety and prevent damage. Considerations include:

Fragile Materials: Reduced speeds and gentle handling
Long Objects: Special rigging and trolley positioning
Hot Materials: Heat-resistant rigging and safety precautions
Multiple Cranes: Coordination procedures for tandem lifts

Real-World Example: A glass manufacturing facility developed specialized procedures for handling large glass sheets with their 8-ton crane. The procedures include vacuum lifting systems, reduced travel speeds, and dedicated communication protocols between crane operators and ground spotters.

Emergency Procedures:

Power Failure: Manual lowering procedures and load securement
Equipment Malfunction: Safe shutdown and evacuation protocols
Medical Emergency: Immediate response and access procedures
Fire Emergency: Evacuation routes and equipment shutdown

Training Requirements: Operator certification programs ensure competency in crane operation, safety procedures, and emergency response. Regular refresher training maintains skills and updates operators on procedural changes.

Performance Monitoring: Modern crane systems provide operational data that helps optimize performance and identify training needs. Metrics include cycle times, load factors, and safety incident rates.

Maintenance Coordination: Operators play a crucial role in identifying maintenance needs and supporting scheduled maintenance activities. Clear communication between operations and maintenance teams prevents unexpected downdowns and extends equipment life.

9. Maintenance Schedules and Preventive Care

Maintenance is essential to extend the service life of the equipment. A systematic maintenance plan is formulated based on its M3-M5 work level classification and operating requirements to minimize unplanned downtime and ensure work efficiency.

Maintenance Planning Philosophy: Preventive maintenance strategies shift from reactive repairs to proactive care, reducing total cost of ownership while improving reliability. Key components include:

Scheduled Inspections: Regular assessment of critical components
Predictive Maintenance: Condition-based monitoring and analysis
Corrective Maintenance: Planned replacement of wear items
Emergency Repairs: Rapid response to unexpected failures

Daily Maintenance Tasks:

Visual Inspections: Operator-performed checks of obvious problems
Lubrication Points: Critical bearings and moving components
Electrical Connections: Loose connections and overheating signs
Safety Systems: Functional verification of protective devices

Real-World Example: A automotive parts distribution center implements operator-performed daily maintenance on their 10-ton crane fleet. The 15-minute routine includes visual inspection, limit switch testing, and lubrication of accessible points. This program has reduced maintenance costs by 25% while improving equipment availability.

Weekly Maintenance Schedule:

Detailed Inspections: Comprehensive examination of mechanical and electrical systems
Lubrication Service: Systematic lubrication of all specified points
Brake Adjustment: Verification and adjustment of brake systems
Wire Rope Inspection: Detailed examination for wear, corrosion, and damage

Monthly Maintenance Activities:

Structural Inspections: Crack detection and weld examination
Electrical System Testing: Insulation resistance and connection torque
Load Testing: Verification of rated capacity and safety systems
Documentation Review: Maintenance records and trend analysis

Real-World Example: A steel service center’s 30-ton crane undergoes monthly comprehensive inspections using ultrasonic testing equipment to detect fatigue cracks in welded connections. Early detection of a developing crack in the trolley beam prevented a catastrophic failure and costly downtime.

Annual Maintenance Programs:

Major Component Overhaul: Motor rebuilds, gear box service, and brake replacement
Structural Certification: Professional inspection and load testing
Electrical System Upgrade: Technology updates and system improvements
Training Updates: Operator and maintenance personnel education

Predictive Maintenance Technologies:

Vibration Analysis: Motor and gearbox condition monitoring
Thermal Imaging: Electrical connection and bearing temperature monitoring
Oil Analysis: Gearbox lubricant condition assessment
Load Monitoring: Duty cycle analysis and fatigue life calculations

Spare Parts Management: Strategic inventory management ensures critical components are available while minimizing carrying costs. Fast-moving wear items require different stocking strategies than emergency replacement parts.

Maintenance Documentation: Comprehensive records support predictive maintenance analysis, warranty claims, and regulatory compliance. Digital maintenance systems provide real-time data access and trend analysis capabilities.

10. Troubleshooting Common Issues

When a malfunction occurs during use, a systematic approach is needed to identify and diagnose the cause of the problem and implement a lasting solution. Failures are often related to electrical, mechanical, or operational factors. Below are common types of failures that can be troubleshooted using this guide.

Electrical System Problems:

Motor Overheating: Causes include overloading, poor ventilation, or electrical imbalances
Control Malfunctions: Switch failures, loose connections, or programming errors
Power Quality Issues: Voltage fluctuations, phase imbalances, or harmonics
Protection System Trips: Overload protection, ground faults, or short circuits

Real-World Example: A manufacturing facility experienced frequent motor overload trips on their 15-ton crane. Investigation revealed voltage imbalance caused by a faulty transformer connection. Correcting the electrical supply eliminated the problem and improved motor efficiency by 8%.

Diagnostic Approaches:

Systematic Testing: Step-by-step verification of system components
Electrical Measurements: Voltage, current, and resistance testing
Visual Inspection: Physical examination of components and connections
Documentation Review: Historical data and maintenance records

Mechanical System Issues:

Bearing Failures: Inadequate lubrication, contamination, or overloading
Gear Wear: Improper lubrication, misalignment, or excessive loading
Brake Problems: Adjustment issues, wear, or contamination
Wire Rope Deterioration: Normal wear, overloading, or improper spooling

Structural Problems:

Deflection Issues: Excessive runway deflection or main girder sagging
Vibration: Dynamic loading, resonance, or worn components
Alignment Problems: Runway misalignment or wheel wear
Crack Development: Fatigue, overloading, or poor welding quality

Real-World Example: A steel processing facility noticed increasing vibration in their 25-ton crane system. Vibration analysis identified worn trolley wheel bearings as the root cause. Replacement of the bearings and implementation of improved lubrication procedures resolved the issue and prevented damage to the runway rails.

Troubleshooting Tools and Equipment:

Multimeters: Electrical measurements and continuity testing
Oscilloscopes: Waveform analysis and timing measurements
Infrared Cameras: Temperature monitoring and hot spot detection
Vibration Analyzers: Mechanical condition assessment

Common Resolution Strategies:

Electrical: Circuit repairs, component replacement, or system recalibration
Mechanical: Lubrication, adjustment, or component replacement
Structural: Welding repairs, reinforcement, or alignment correction
Operational: Training, procedure modification, or equipment upgrade

Documentation and Follow-up: Proper documentation of troubleshooting activities supports future problem resolution and helps identify recurring issues. Follow-up monitoring ensures implemented solutions remain effective.

Expert Consultation: Complex problems may require specialized expertise from crane manufacturers, electrical contractors, or structural engineers. Early consultation often prevents costly trial-and-error approaches.

11. Industry Applications and Use Cases

Electric single beam bridge cranes in the 1-30 ton capacity range serve diverse industrial applications, each presenting unique operational requirements and challenges. Understanding specific use cases helps optimize equipment selection and operational procedures.

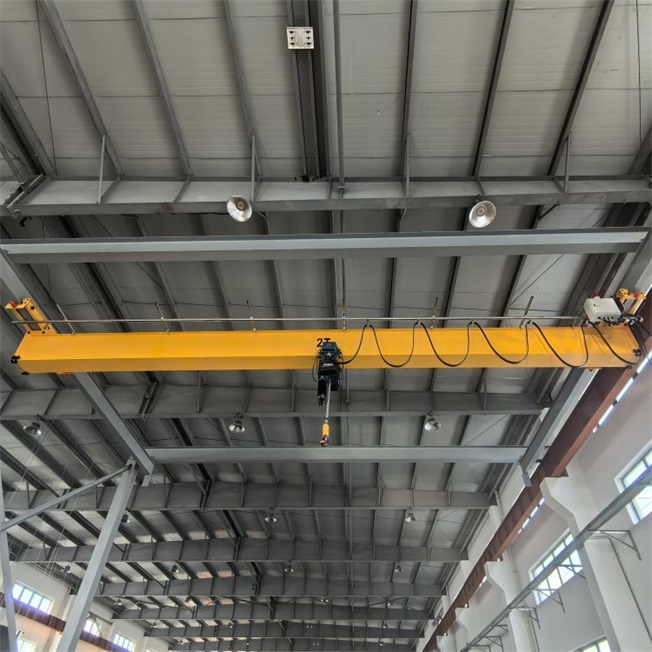

Electric single girder bridge crane application

Manufacturing Applications:

Automotive Industry: Assembly line support, component handling, and engine installation
Aerospace: Aircraft component positioning and precision assembly operations
Heavy Machinery: Equipment assembly and manufacturing support
Electronics: Clean room applications and sensitive component handling

Real-World Example: Ford’s Dearborn truck plant utilizes a network of 18-ton single beam cranes for cab installation on the F-150 assembly line. The cranes feature precision positioning systems that align vehicle cabs to within 2mm tolerance, ensuring consistent build quality and assembly line efficiency.

Warehousing and Distribution:

Container Handling: Loading and unloading shipping containers
Bulk Material: Handling of raw materials and finished goods
Cross-Docking: Transfer operations between transportation modes
Order Fulfillment: Product selection and shipment preparation

Steel and Metal Processing:

Coil Handling: Steel coil transportation and positioning
Fabrication Support: Structural steel handling and assembly
Heat Treatment: Movement of parts through thermal processing
Quality Control: Sample preparation and testing support

Real-World Example: A steel service center operates 22-ton cranes for coil handling operations. The cranes feature specialized lifting beams designed for steel coils and incorporate load rotation capability for optimal positioning. Average cycle time for coil handling is 3.5 minutes, supporting throughput of 150 coils per shift.

Construction and Infrastructure:

Precast Concrete: Handling of building components and architectural elements
Bridge Construction: Beam placement and structural assembly
Utility Projects: Equipment installation and maintenance
Mining Support: Material handling and equipment maintenance

Power Generation Industry:

Nuclear Facilities: Precision handling of reactor components
Fossil Plants: Turbine and generator maintenance support
Renewable Energy: Wind turbine component handling
Transmission Systems: Transformer and switchgear installation

Real-World Example: A combined-cycle power plant uses a 30-ton bridge crane for gas turbine maintenance. The crane incorporates advanced positioning controls and load monitoring systems to safely handle turbine rotors weighing up to 28 tons during scheduled maintenance outages.

Specialized Applications:

Research Facilities: Laboratory equipment and experimental apparatus
Entertainment: Stage and venue equipment handling
Marine Applications: Shipyard and port operations
Waste Management: Processing and handling of recyclable materials

Application Selection Criteria:

Load Requirements: Weight, size, and center of gravity considerations
Precision Needs: Positioning accuracy and speed control requirements
Environment: Temperature, humidity, corrosive conditions, and cleanliness
Duty Cycle: Operating frequency and duration requirements

Performance Optimization: Each application benefits from specific equipment modifications and operational procedures. Customization options include specialized lifting attachments, environmental protection, and control system modifications.

12. Cost Analysis and ROI Considerations

Investing in an electric single girder overhead crane requires a comprehensive cost analysis, such as considering initial capital, operating costs and productivity benefits. Understanding the required investment costs will help you make an informed decision and plan accordingly to optimize your return on investment.

Initial Capital Investment Components:

Equipment Cost: Crane structure, electrical systems, and control components
Installation Expenses: Site preparation, assembly, and commissioning
Infrastructure Requirements: Runway systems, electrical supply, and building modifications
Training and Certification: Operator training and safety programs

Real-World Example: A mid-size manufacturing company invested $125,000 in a 15-ton single beam crane system, including equipment ($75,000), installation ($30,000), runway modifications ($15,000), and training ($5,000). The crane replaced three smaller mobile cranes and reduced material handling costs by 35%.

Operating Cost Analysis:

Energy Consumption: Electrical power costs for crane operation
Maintenance Expenses: Routine maintenance and component replacement
Labor Costs: Operator wages and training expenses
Downtime Costs: Production losses during maintenance and repairs

Productivity Benefits Quantification:

Cycle Time Reduction: Faster material handling compared to alternatives
Labor Efficiency: Reduced manual handling and workforce requirements
Space Utilization: Overhead operation maximizes floor space usage
Safety Improvements: Reduced workplace injuries and associated costs

Comparative Analysis Methods:

Payback Period: Time required to recover initial investment through savings
Net Present Value (NPV): Discounted cash flow analysis of project returns
Internal Rate of Return (IRR): Profitability metric comparing investment alternatives
Life Cycle Cost: Total ownership cost over equipment design life

Real-World Example: A steel fabrication facility calculated ROI for a 25-ton crane installation over 15 years. The analysis showed annual savings of $45,000 from reduced labor costs and improved productivity, resulting in a 4.2-year payback period and 22% IRR.

Risk Factors and Mitigation:

Technology Obsolescence: Future-proofing through modular design and upgrade capability
Market Changes: Flexibility to adapt to changing production requirements
Regulatory Changes: Compliance with evolving safety and environmental standards
Economic Fluctuations: Impact of economic cycles on utilization rates

Financing Options:

Direct Purchase: Full ownership with maximum long-term benefits
Equipment Leasing: Lower initial capital with flexible terms
Rent-to-Own: Gradual ownership transition with operational flexibility
Performance Contracts: Service-based agreements linking payments to performance

Value Engineering Opportunities:

Specification Optimization: Right-sizing equipment for actual requirements
Standardization Benefits: Fleet standardization reducing spare parts and training costs
Energy Efficiency: Advanced controls and regenerative systems reducing operating costs
Maintenance Programs: Proactive maintenance reducing total cost of ownership

Government Incentives: Many regions offer tax incentives, depreciation benefits, or grants for industrial equipment investments, particularly those improving energy efficiency or workplace safety.

13. Regulatory Compliance and Standards

Cranes must comply with a comprehensive regulatory framework to ensure safe operation and protect workers, equipment, and materials. Understanding the standards of different countries helps to correctly select, install, and operate equipment. The following introduces the meaning of international, EU, Canadian, and other standards, as well as the requirements for operators using cranes.

International Standards Framework:

ISO 4301: Classification and loading standards for cranes
ISO 8306: Tolerances for wheels and rails in crane applications
ISO 9374: Information to be provided by purchaser
IEC 60204: Safety of machinery electrical equipment standards

Regional Regulatory Requirements:

United States:

OSHA 1910.179: Federal occupational safety standards for overhead cranes
ASME B30.2: Safety standard for overhead and gantry cranes
ASME B30.16: Overhead hoists (underhung) safety standards
AISC: American Institute of Steel Construction design standards

Real-World Example: A pharmaceutical manufacturing facility’s 8-ton crane installation required compliance with FDA cGMP requirements in addition to standard OSHA regulations. This included special documentation, materials traceability, and validation procedures that added 15% to the project cost but ensured regulatory approval.

European Union:

Machinery Directive 2006/42/EC: Essential health and safety requirements
EN 15011: Bridge and gantry crane design standards
EN 13001: General design principles for crane structures
ATEX Directive: Equipment for explosive atmospheres

Canadian Standards:

CSA B167: Overhead travelling cranes design and construction
CSA Z150: Safety code for mobile cranes
Provincial Regulations: Additional requirements varying by province

Inspection and Certification Requirements:

Initial Certification: Third-party inspection before first use
Periodic Inspections: Regular safety inspections by qualified personnel
Load Testing: Verification of rated capacity at specified intervals
Documentation: Comprehensive records maintaining compliance history

Real-World Example: An automotive parts manufacturer in Ontario operates under CSA B167 requirements, conducting monthly safety inspections by certified technicians and annual load testing at 125% of rated capacity. The comprehensive inspection program has maintained 100% compliance over five years of operation.

Operator Certification Requirements:

Training Programs: Formal instruction in crane operation and safety
Written Examinations: Knowledge verification of procedures and regulations
Practical Testing: Hands-on demonstration of operating competency
Continuing Education: Regular updates on regulatory changes and best practices

Design Compliance Considerations:

Safety Factors: Structural design margins exceeding minimum requirements
Protective Systems: Multiple layers of safety protection
Environmental Factors: Design for specified operating conditions
Accessibility: Maintenance access and ergonomic considerations

Documentation and Record Keeping:

Design Documentation: Calculations, drawings, and specifications
Installation Records: As-built documentation and test results
Maintenance Logs: Complete history of inspections and repairs
Training Records: Operator certification and continuing education

Non-Compliance Consequences:

Legal Liability: Potential for accidents and associated lawsuits
Regulatory Penalties: Fines and operational shutdowns
Insurance Issues: Void coverage for non-compliant equipment
Operational Disruption: Forced shutdowns for correction of deficiencies

Emerging Regulations: Environmental regulations increasingly impact crane design and operation, including energy efficiency requirements and end-of-life disposal considerations.

14. Future Trends and Technological Advances

The electric single beam bridge crane industry continues evolving through technological innovation, driven by demands for improved efficiency, safety, and connectivity. Understanding emerging trends helps organizations prepare for future opportunities and challenges.

Smart Crane Technologies:

Internet of Things (IoT): Connected sensors providing real-time operational data
Artificial Intelligence: Predictive maintenance and optimization algorithms
Machine Learning: Adaptive control systems improving performance over time
Digital Twins: Virtual models enabling simulation and optimization

Real-World Example: A automotive manufacturer implemented IoT-enabled 12-ton cranes that continuously monitor load cycles, motor temperatures, and vibration patterns. The system has reduced unplanned downtime by 40% through predictive maintenance algorithms that identify potential failures weeks in advance.

Advanced Control Systems:

Adaptive Load Control: Systems that automatically adjust operating parameters based on load characteristics
Anti-Sway Technology: Advanced algorithms minimizing load oscillation during movement
Collision Avoidance: Autonomous systems preventing crane-to-crane and crane-to-obstacle contact
Precision Positioning: GPS and laser-guided systems enabling millimeter-accuracy positioning

Energy Efficiency Innovations:

Regenerative Braking: Advanced systems capturing and reusing energy during lowering operations
Variable Frequency Drives: Next-generation VFDs with improved efficiency and control capabilities
Energy Storage Systems: Battery systems storing regenerated energy for peak demand periods
Smart Power Management: Automated systems optimizing power consumption across crane fleets

Real-World Example: A steel processing facility installed energy recovery systems on their 20-ton crane fleet, capturing energy during load lowering operations. The system includes battery storage that provides power during peak demand periods, reducing facility energy costs by 18% annually.

Automation and Robotics Integration:

Automated Material Handling: Cranes operating autonomously for repetitive tasks
Integration with Manufacturing Systems: Direct communication with ERP and MES systems
Robotic End Effectors: Automated gripping and positioning systems
Warehouse Management Integration: Seamless integration with inventory and logistics systems

Safety Technology Advances:

Computer Vision Systems: AI-powered cameras detecting unsafe conditions and behaviors
Proximity Detection: Advanced sensors preventing collisions with personnel and equipment
Load Monitoring Systems: Real-time weight distribution and center of gravity analysis
Virtual Reality Training: Immersive training systems improving operator competency

Real-World Example: An aerospace manufacturing facility deployed computer vision systems on their 15-ton crane network that automatically detect when personnel enter restricted areas during crane operations. The system immediately stops crane movement and alerts supervisors, eliminating near-miss incidents.

Connectivity and Data Analytics:

Cloud-Based Monitoring: Remote access to crane performance data and diagnostics
Mobile Applications: Smartphone and tablet interfaces for crane control and monitoring
Big Data Analytics: Fleet-wide performance analysis and optimization
Blockchain Technology: Secure maintenance records and component traceability

Sustainability Initiatives:

Lifecycle Assessment: Comprehensive environmental impact analysis
Recyclable Materials: Design for end-of-life material recovery
Carbon Footprint Reduction: Minimizing environmental impact throughout equipment lifecycle
Circular Economy Principles: Remanufacturing and component reuse programs

Human-Machine Interface Evolution:

Augmented Reality: Overlay displays providing real-time operational information
Voice Control: Hands-free operation through voice recognition systems
Haptic Feedback: Tactile feedback systems enhancing operator awareness
Gesture Control: Touch-free interfaces reducing contamination risks

Modular Design Trends:

Standardized Components: Interchangeable parts reducing inventory and maintenance costs
Scalable Systems: Designs easily modified for changing capacity requirements
Plug-and-Play Technology: Simplified installation and upgrade procedures
Future-Proof Architecture: Design frameworks accommodating technological advances

Market Drivers and Challenges:

Labor Shortages: Automation addressing skilled operator availability
Safety Regulations: Increasingly stringent safety requirements driving innovation
Economic Pressures: Cost reduction demands spurring efficiency improvements
Environmental Concerns: Sustainability requirements influencing design decisions

15. Conclusion and Recommendations

Electric single beam bridge cranes in the 1-30 ton capacity range with M3-M5 working level classifications represent mature, reliable technology that continues evolving through innovation and technological advancement. This comprehensive analysis demonstrates the critical importance of proper equipment selection, installation, and operation in achieving optimal performance and return on investment.

Key Success Factors:

Equipment Selection: Proper specification requires thorough analysis of operational requirements, environmental conditions, and future growth projections. Under-specification leads to premature failure and operational limitations, while over-specification results in unnecessary capital expenditure.

Installation Excellence: Quality installation practices directly impact equipment performance, safety, and longevity. Investment in proper site preparation, professional installation, and comprehensive testing pays dividends throughout equipment life.

Operational Excellence: Well-trained operators following established procedures maximize equipment capabilities while ensuring safe operation. Regular training and procedure updates maintain competency as technology evolves.

Real-World Example: A comprehensive benchmarking study of 50 manufacturing facilities revealed that companies achieving 95%+ crane availability shared common characteristics: rigorous equipment selection processes, professional installation practices, comprehensive operator training programs, and proactive maintenance strategies.

Maintenance Strategy: Proactive maintenance programs significantly reduce total cost of ownership while improving reliability. Modern predictive maintenance technologies enable condition-based maintenance strategies that optimize resource utilization.

Technology Integration: Organizations successfully integrating new technologies achieve competitive advantages through improved efficiency, enhanced safety, and reduced operating costs. However, technology adoption should be strategic and aligned with operational objectives.

Strategic Recommendations:

For New Installations:

Conduct Comprehensive Needs Analysis: Evaluate current and future requirements considering growth projections and technological trends
Invest in Quality Infrastructure: Proper runway systems and electrical infrastructure support long-term performance
Plan for Technology Evolution: Select systems with upgrade capability and future expansion potential
Implement Comprehensive Training: Establish robust training programs for operators and maintenance personnel

For Existing Systems:

Assess Current Performance: Evaluate equipment condition, operational efficiency, and safety compliance
Develop Modernization Plans: Identify upgrade opportunities providing measurable benefits
Optimize Maintenance Programs: Implement predictive maintenance technologies where cost-justified
Plan Replacement Strategy: Establish criteria for equipment replacement versus continued maintenance

Industry Outlook: The electric single beam bridge crane market continues expanding, driven by industrial automation, infrastructure development, and technological innovation. Organizations investing in modern, well-specified equipment positioned for long-term success.

Final Considerations: Success with electric single beam bridge cranes requires commitment to excellence in specification, installation, operation, and maintenance. Organizations treating cranes as strategic assets rather than simple tools achieve superior performance and return on investment.

Call to Action: Organizations should evaluate their current crane assets, assess alignment with operational objectives, and develop strategic plans for optimization or replacement. Professional consultation with crane specialists, structural engineers, and safety experts ensures optimal outcomes.

The investment in quality electric single beam bridge crane systems, when properly specified, installed, and maintained, provides decades of reliable service while contributing to operational efficiency, workplace safety, and organizational success. The key lies in understanding specific requirements, selecting appropriate technology, and maintaining commitment to excellence throughout the equipment lifecycle.

Resource Recommendations:

Consult with certified crane manufacturers and dealers
Engage qualified structural engineers for installation projects
Utilize professional training organizations for operator certification
Consider third-party maintenance specialists for complex systems
Stay current with industry standards and regulatory requirements

This comprehensive guide provides the foundation for informed decision-making regarding electric single beam bridge cranes, but specific applications may require additional analysis and professional consultation to ensure optimal outcomes.
