Last month, I visited a precision machining facility in Michigan where the production manager showed me their newest acquisition: a 3-ton mobile gantry crane that had transformed their material handling workflow. Within six weeks of deployment, they eliminated 40% of their overhead crane scheduling conflicts and reduced equipment waiting time by an estimated 2.5 hours per shift. This wasn’t just about buying new equipment—it was about fundamentally rethinking how ground-level lifting gets done.
That conversation reminded me why mobile gantry crane technology deserves serious attention from manufacturing and maintenance operations worldwide. After nearly two decades specifying lifting equipment across diverse industries, I’ve observed that mobile gantry crane systems solve practical challenges that fixed installations and traditional cranes simply cannot address.
Today, I want to share comprehensive insights into mobile gantry crane applications, drawing from real-world implementations, verified performance data, and practical lessons learned from dozens of successful deployments.
Understanding What Makes a Mobile Gantry Crane Different
A mobile gantry crane represents a ground-supported lifting system featuring a horizontal beam (the bridge) mounted on two or more legs equipped with wheels or casters, enabling the entire structure to move freely across flat surfaces. Unlike fixed overhead cranes requiring permanent runway installations, mobile gantry crane systems operate independently, providing lifting capability wherever needed within a facility.
The fundamental distinction separating mobile gantry crane equipment from fixed alternatives lies in operational flexibility. Traditional overhead cranes serve defined coverage areas determined by runway placement. Once installed, expanding or relocating these systems requires substantial structural modifications and expense. In contrast, mobile gantry crane units relocate simply by rolling them to new positions, adapting instantly to changing operational requirements.
The global gantry crane market reached a valuation of USD 2.2 billion in 2023 and is expected to grow at a compound annual growth rate (CAGR) of 4.50% from 2024 to 2032, demonstrating sustained industry demand for these versatile lifting solutions. This growth reflects increasing recognition that mobile gantry crane solutions deliver compelling advantages in flexibility, deployment speed, and total cost of ownership compared to traditional alternatives.
Design Architecture and Structural Components
Mobile gantry crane engineering encompasses several critical structural elements that collectively determine performance, safety, and operational suitability.
Structural Framework
The bridge beam represents the primary load-bearing component in mobile gantry crane construction. This horizontal member spans between vertical legs, supporting the hoist and trolley mechanism that performs actual lifting operations. Bridge beam design significantly influences capacity and span capabilities.
Modern mobile gantry crane bridge beams typically employ steel I-beam or box beam construction, selected based on capacity requirements and span distances. Steel I-beams provide excellent strength-to-weight ratios for applications up to approximately 5 tons and spans to 30 feet. Beyond these parameters, box beam construction offers superior rigidity and load distribution.
Aluminum construction has gained traction for lightweight mobile gantry crane applications, particularly in aerospace, clean room, and corrosive environments. Aluminum systems typically weigh 30-50% less than steel equivalents while maintaining comparable strength characteristics. This weight reduction translates directly to improved mobility and reduced floor loading—critical factors in facilities with weight-restricted floors.
The leg assemblies in mobile gantry crane designs must transfer loads from the bridge beam to the floor surface while maintaining structural stability under load. Leg geometry significantly impacts stability, with wider leg spacing enhancing resistance to tipping moments. Most configurations employ A-frame or straight-leg designs, each presenting distinct advantages.
A-frame leg designs provide exceptional lateral stability, making them preferred for applications involving off-center loads or outdoor operation where wind loading presents concerns. The angled leg geometry inherently resists tipping moments more effectively than vertical configurations. However, A-frame designs consume more floor space due to wider footprints.
Straight-leg configurations minimize footprint requirements, proving advantageous in space-constrained environments. These designs typically incorporate outriggers or wider bases to maintain adequate stability margins. Straight-leg systems excel in applications requiring passage through standard doorways or operation in narrow aisles.
Mobility Systems
Wheel and caster configurations fundamentally define mobile gantry crane maneuverability characteristics. Several wheel arrangements serve different operational requirements:
Fixed Wheel Systems: The simplest mobility configuration employs fixed wheels on one end and swivel casters on the opposite end. This arrangement enables the unit to roll forward and backward along straight paths while allowing direction changes through pivoting around the fixed end. Fixed wheel designs provide excellent straight-line stability but limited maneuverability in congested spaces.
Four-Wheel Swivel Caster Units: Mounting swivel casters at all four corners maximizes maneuverability, enabling movement in any direction including lateral translation and rotation around vertical axes. This configuration proves ideal for applications in confined spaces requiring frequent repositioning. However, four-wheel swivel systems require careful floor preparation as uneven surfaces can cause unexpected movement under load.
Locking Caster Systems: Safety-critical operations benefit from locking caster mechanisms that immobilize the structure during lifting operations. Once the unit reaches the desired position, operators engage locks preventing wheel rotation. This feature eliminates risks of unintended movement while loads remain suspended, significantly enhancing operational safety.
Wheel material selection influences performance across several dimensions. Polyurethane wheels provide excellent floor protection while maintaining adequate load capacity for most applications up to 5 tons. These wheels minimize floor marking and operate quietly—important considerations in clean or noise-sensitive environments.
Steel wheels suit heavy-capacity systems exceeding 10 tons, offering superior load-bearing capability and durability. However, steel wheels transmit more vibration and noise while potentially marking finished floors. Selecting appropriate wheel materials requires balancing load capacity, floor surface characteristics, and operational environment.
Mobile Gantry Crane Capacity Classifications
These systems span enormous capacity ranges, from lightweight 250-pound units serving maintenance shops to massive 100-ton installations supporting heavy manufacturing operations. Understanding mobile gantry crane capacity classifications helps match equipment to application requirements.
Light-Capacity Mobile Gantry Crane Systems (0.25 – 2 Tons)
Light-duty mobile gantry crane units typically serve maintenance departments, repair shops, and light assembly operations. These systems commonly feature aluminum construction for enhanced portability, with compact designs enabling single-person positioning. Common mobile gantry crane applications include engine removal in automotive service facilities, equipment maintenance in commercial buildings, and component handling in electronics manufacturing.
A documented case involved a 1-ton aluminum mobile gantry crane deployed at an aerospace components manufacturer for precision positioning of composite assemblies. The lightweight design allowed a single technician to relocate the system between six different work stations, eliminating previous dependence on a single overhead crane serving the entire facility. This implementation reduced average lift waiting time from 23 minutes to under 5 minutes, directly impacting production throughput.
Medium-Capacity Systems (2 – 10 Tons)
Medium-duty configurations represent the most common industrial deployment category, balancing capacity with reasonable mobility. These systems typically employ steel construction with spans ranging from 10 to 30 feet, serving diverse applications across manufacturing, shipping/receiving, and equipment installation operations.
Manufacturing facilities frequently deploy medium-capacity units for die handling, machinery positioning, and heavy component assembly. These units provide dedicated lifting capacity independent of overhead crane systems, enabling simultaneous operations that would otherwise create bottlenecks.
A steel fabrication facility in Ohio implemented three 5-ton units to support their welding department, where frequent repositioning of large weldments occurred throughout production sequences. Previously, this facility relied exclusively on a single 10-ton overhead crane, creating constant scheduling conflicts. The deployment eliminated crane wait times while freeing their overhead system for operations requiring the extended coverage area that only overhead cranes provide.
Heavy-Capacity Systems (10 – 100+ Tons)
Heavy-duty installations serve specialized applications in shipbuilding, power generation, heavy equipment manufacturing, and infrastructure construction. These massive systems often feature powered travel mechanisms rather than manual positioning, given the substantial forces required to move structures weighing many tons.
Shipyard operations extensively utilize heavy-capacity systems for hull section positioning, engine installation, and outfitting activities. These units provide precise load placement while accommodating the constantly changing layout characteristic of ship construction sequences.
Height Adjustment and Span Configurations
Many modern mobile gantry crane systems incorporate adjustable height capabilities, enabling optimization for different operational requirements without requiring multiple pieces of equipment.
Adjustable Height Mechanisms
Telescoping leg designs represent the most common adjustable height configuration. Pins or mechanical locks secure legs at various height increments, typically in 6-inch or 12-inch intervals. This adjustable feature accommodates loads of varying heights while maintaining adequate clearance for material handling operations.
A precision machining facility deployed adjustable height systems serving multiple CNC machining centers with different bed heights. By adjusting the height to match each machine’s specific requirements, operators achieved optimal ergonomic positioning while maintaining consistent rigging geometry across different applications.
Hydraulic height adjustment mechanisms provide infinitely variable height positioning within the travel range. These powered adjustable systems enable height changes while under load—a significant advantage when precise vertical positioning proves critical. However, hydraulic designs add complexity, weight, and cost compared to pin-adjusted alternatives.
Adjustable Span Configurations
Telescoping beam designs enable span adjustment in applications requiring variable coverage widths. The bridge beam extends or retracts, typically through sliding sections secured with locking pins. This adjustable span capability allows a single unit to serve applications with different width requirements, improving equipment utilization while reducing inventory needs.
An equipment rental company serving the construction industry stocks adjustable span units configured for 10-20 foot span ranges. This flexibility enables a single fleet to serve diverse customer applications, improving asset utilization while reducing the total equipment inventory required.
Hoist and Trolley Integration
The hoist mechanism performs actual lifting operations in these systems, while the trolley enables horizontal load positioning along the bridge beam. Several hoist types serve different applications:
Manual Chain Hoist Systems
Manual chain hoists represent the most economical option for light-duty, infrequent-use applications. Operators lift loads by pulling hand chains that mechanically advantage the lifting mechanism through gear reduction. Manual hoist systems prove suitable for loads up to approximately 3 tons where lifting frequency remains moderate.
Advantages of manual hoist configurations include simplicity, zero power requirements, and minimal maintenance. However, lifting speed limitations and operator fatigue considerations restrict manual hoist applications to occasional-use scenarios.
Electric Chain Hoist Systems
Electric chain hoists dramatically improve productivity in frequent-use applications. These powered hoists lift loads at 8-32 feet per minute depending on capacity—substantially faster than manual alternatives. Electric hoist systems typically operate from 115V or 230V power sources, with portable cord reels enabling mobility without permanent wiring.
Most industrial deployments employ electric chain hoists given the significant productivity advantages over manual systems. Lifting cycle times decrease by 60-80%, while eliminating operator fatigue enables sustained operation throughout shifts.
Wire Rope Hoist Systems

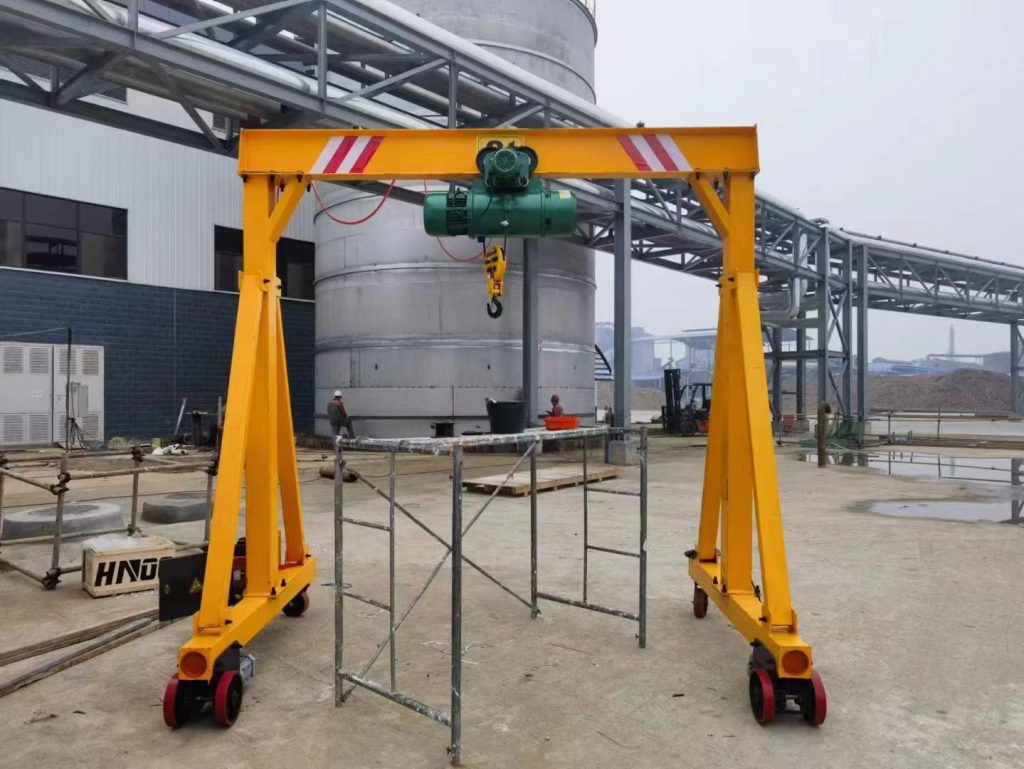

Heavy-capacity applications exceeding 5 tons typically employ wire rope hoists rather than chain mechanisms. Wire rope construction provides superior strength-to-weight characteristics for heavy-duty operations, with larger diameter ropes accommodating high-capacity requirements.
Wire rope hoist systems commonly feature powered trolley movement in addition to powered lifting, enabling complete remote-controlled positioning. This capability proves essential in heavy-duty applications where manual trolley positioning would prove impractical due to load weights and friction forces.
Safety Features and Protection Systems
Safety considerations dominate mobile gantry crane design and operation, given the severe consequences of lifting equipment failures. Multiple overlapping safety systems protect personnel and property:
Structural Safety Factors
Structural components employ safety factors ranging from 5:1 to 15:1 depending on component criticality. A 5:1 safety factor means the component withstands five times the rated load before failure. These substantial safety margins account for load dynamics, material variability, and unforeseen stress concentrations.
Rated capacity markings must appear prominently on every structure, clearly indicating maximum safe working load. Operators must never exceed these ratings regardless of apparent structural capability—safety factors exist precisely because hidden damage or metallurgical flaws may compromise strength without visible indication.
Load Moment Indicators
Advanced systems incorporate load moment indicators that continuously calculate tipping risk based on load weight and horizontal position. If the suspended load creates excessive tipping moment, visual and audible alarms alert operators to dangerous conditions. Some sophisticated designs automatically prevent hoist operation when load moments exceed safe thresholds.
A heavy equipment manufacturer implemented load moment indicators on their fleet of 10-ton units after experiencing several near-miss tipping incidents. Following implementation, incident reports decreased 85% while operator confidence improved measurably based on safety culture surveys.
Wheel Brakes and Locks
Preventing unintended movement during lifting operations represents a critical safety requirement. Locking casters or wheel brakes must engage before hoisting loads, immobilizing the structure throughout the lift cycle. Many designs incorporate spring-applied, manually released brakes that automatically engage when operators release brake controls.
Some advanced systems feature electrical interlocks preventing hoist operation unless wheel locks engage. This fail-safe design eliminates the possibility of operator error resulting in lifting without proper braking.
Fall Protection and Guarding
Operations often occur in congested environments where suspended loads pass over or near personnel. Designated lift zones with appropriate barricading or floor markings establish safe perimeters around operations. Personnel not directly involved in lifting must remain outside these zones while loads remain suspended.
Some facilities implement tag-out systems for operations in high-traffic areas. Before lifting, operators position safety cones and warning tape establishing temporary exclusion zones. This visible indication alerts personnel to lifting in progress, reducing risks of personnel inadvertently entering hazardous areas.
Mobile Gantry Crane Applications Across Industries
Versatility enables mobile gantry crane applications spanning diverse industrial sectors, each with specific requirements and operational characteristics.
Manufacturing and Production
Manufacturing facilities represent the largest mobile gantry crane deployment sector, utilizing these systems for machinery installation, die handling, work-in-process transport, and maintenance support. The equipment eliminates dependence on overhead crane systems for ground-level handling tasks, improving operational flexibility while reducing equipment conflicts.
Automotive component manufacturers extensively deploy these systems for stamping die changes. Dies weighing 5-15 tons require frequent movement between storage, presses, and maintenance areas. These units provide dedicated die handling capacity independent of overhead systems serving other facility operations.

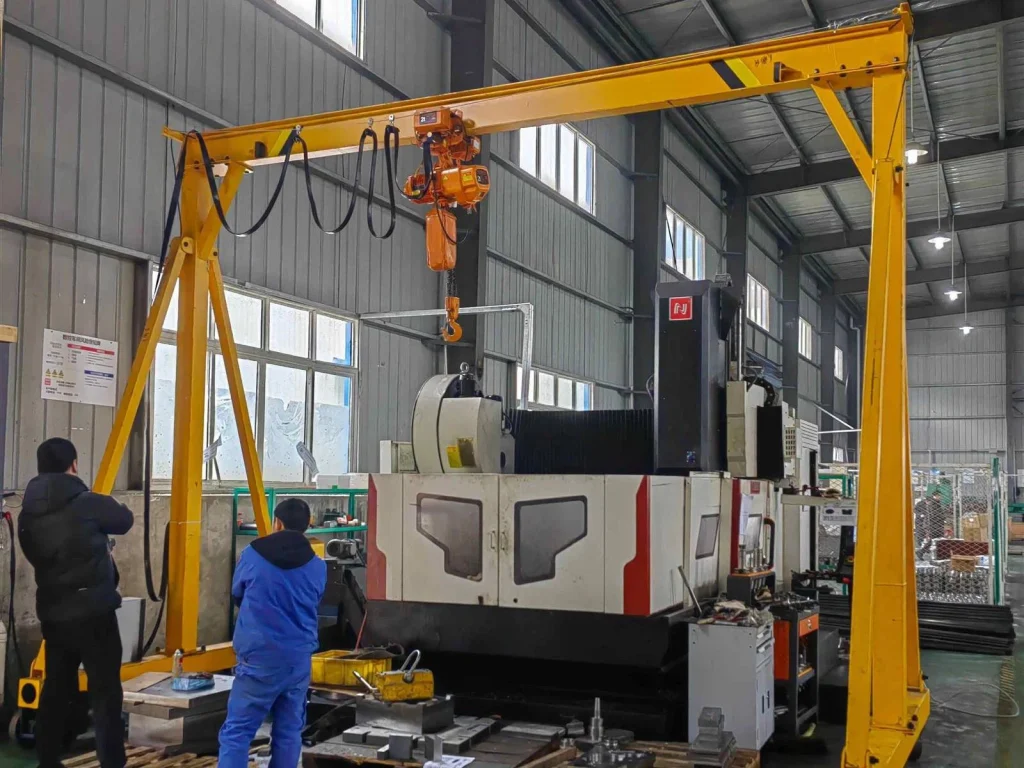

Machine shops utilize this equipment for CNC machine tool changes, rotary table positioning, and heavy workpiece loading. The ability to position the unit precisely over each machine eliminates awkward rigging angles that would compromise safety or equipment when using more distant overhead cranes.
Maintenance and Repair Operations
Maintenance departments across all industries deploy these systems for equipment removal, component replacement, and facility repair activities. The unit travels to maintenance locations rather than requiring transport of disabled equipment to fixed crane coverage areas—a critical advantage when servicing large, installed machinery.
Power generation facilities employ this equipment for turbine maintenance, pump removal, and valve actuator service. These operations often occur in locations without overhead crane coverage, making this capability essential for completing repairs without expensive temporary crane installations.
A chemical processing facility deployed three units specifically for pump maintenance across their 80-acre site. Previously, pump removals required mobile crane rental at approximately $2,800 per day. The investment achieved payback within 14 months while improving maintenance response time by eliminating rental coordination delays.
Warehouse and Logistics Operations
Distribution centers utilize these systems for container unloading, pallet handling, and oversize freight manipulation. The equipment supplements forklift operations when loads exceed forklift capacity or require overhead lifting for container extraction.
Shipping facilities deploy this equipment at loading docks for truck and container servicing. The unit positions over vehicles, enabling direct vertical loading and unloading without repositioning trucks or requiring expensive dock-mounted crane installations.
Construction and Infrastructure
Construction sites employ these systems for structural steel erection, precast concrete placement, mechanical equipment setting, and material staging. The equipment provides lifting capability without requiring permanent foundation installations characteristic of tower cranes or requiring daily rental of mobile cranes.
Bridge construction projects utilize specialized heavy-capacity systems for girder placement. These massive installations span entire bridge widths, precisely positioning precast or steel girders weighing up to 200 tons. The unit advances along completed bridge sections, enabling self-sufficient progression without ground-based crane support.
Aerospace and Aviation
Aircraft maintenance facilities employ these systems for engine removal, landing gear service, and component handling. Aluminum construction proves particularly advantageous in aerospace applications, providing necessary capacity while minimizing weight that could mark composite aircraft surfaces.
An aircraft maintenance facility serving regional carriers deployed adjustable height units to service six different aircraft types. The adjustable configuration accommodated engine heights ranging from 4 to 12 feet above ground, eliminating previous requirements for aircraft type-specific lifting equipment.
Comparison with Alternative Lifting Solutions
Understanding where mobile gantry crane systems provide optimal value requires comparing them against alternative lifting approaches.
Mobile Gantry Crane vs Overhead Bridge Cranes
Overhead bridge cranes provide superior coverage area and lifting capacity compared to portable gantry systems. However, overhead cranes require substantial structural investment including runway beams, support columns, and building reinforcement. Installation costs for overhead crane systems typically range from $25,000 to $250,000 depending on capacity and span—far exceeding mobile gantry crane investment for equivalent lifting capacity.
The mobile gantry crane operates independently of building structure, enabling deployment in rented facilities or temporary locations where permanent installations prove impractical. Furthermore, these units relocate when facility layouts change, while overhead crane modifications require expensive runway alterations.
Operational flexibility strongly favors mobile gantry crane solutions. While overhead cranes serve fixed coverage areas, portable units travel to lifting locations, providing flexible capacity deployment matching real-time operational demands.
Versus Jib Cranes
Jib cranes occupy minimal floor space while providing lift coverage within their swing radius. However, jib cranes require either floor mounting with substantial foundation work or column mounting to building structures. These permanent installations lack the mobility characteristic of portable systems.
Capacity limitations also distinguish jib cranes from alternatives. Most jib cranes serve loads under 3 tons, while portable gantry systems routinely handle 5-20 tons with specialized units exceeding 100 tons.
Portable solutions prove superior when lifting requirements span multiple locations throughout a facility. Rather than installing multiple jib cranes at each potential lifting location, a single unit serves all positions by relocating as needed.
Versus Mobile Hydraulic Cranes
Mobile hydraulic cranes (truck-mounted or rough-terrain units) provide exceptional capacity and reach capabilities far exceeding portable gantry performance envelopes. However, hydraulic mobile cranes require expensive daily rental, typically $800-$3,000 per day depending on capacity.
For applications requiring frequent lifting, ownership delivers dramatic cost advantages over repeated crane rental. A facility performing three lifts weekly would incur approximately $124,800 annually in crane rental costs at $800/day—substantially exceeding the cost of purchasing dedicated equipment.
Operational considerations also favor portable solutions for indoor applications. Hydraulic cranes require substantial clearance heights and adequate maneuvering space often unavailable in manufacturing environments. The compact unit operates in constrained spaces while maintaining stability without outrigger deployment.
Selection Criteria for Optimal Results
Successful mobile gantry crane implementation requires systematic evaluation matching equipment capabilities to operational requirements.
Capacity Determination
Rated capacity represents the maximum load a system safely handles, including the weight of all rigging, hooks, and below-the-hook devices. The actual load capacity available for payload equals rated capacity minus rigging weight. Undersizing capacity compromises safety while oversizing unnecessarily increases costs and reduces mobility.
Safety best practices recommend selecting capacity at least 25% greater than maximum anticipated loads. This margin accommodates load variations, rigging weight, and dynamic forces during lifting operations.
Span and Height Requirements
Span must exceed the width of loads handled plus adequate clearance for approach and positioning. Insufficient span forces awkward load angles or prevents use entirely. Most applications benefit from at least 2-3 feet of clearance beyond maximum load width.
Under-hook height—the clearance between the floor and the bottom of the lifted load—determines height requirements. This dimension must accommodate the tallest loads handled plus rigging length and any required load clearance. Adjustable height systems provide flexibility when handling loads of varying heights.
Mobility and Portability Needs
Applications requiring frequent relocation benefit from lightweight construction, typically aluminum, and features enhancing maneuverability such as swivel casters and compact dimensions. Facilities with doorways, narrow aisles, or congested work areas require careful dimension verification ensuring passage through all intended routes.
Outdoor applications demand weather-resistant construction with enhanced stability against wind loading. Wider leg spacing and optional outriggers improve outdoor stability in exposed conditions.
Floor Surface Considerations
Operation requires reasonably level, smooth floor surfaces. Severely uneven floors compromise mobility while potentially creating dangerous tipping situations. Concrete floors represent ideal operating surfaces, providing stable support and smooth rolling.
Floor loading capacity must support the combined weight of the structure, suspended load, and hoist equipment. Facilities with elevated mezzanine floors or weak substrates require structural evaluation before deployment.
Regulatory Compliance and Standards
Design, manufacturing, and operation must comply with numerous safety standards and regulatory requirements.
OSHA Requirements
The Occupational Safety and Health Administration (OSHA) establishes comprehensive safety standards for crane and hoist operations in the United States. OSHA Standard 1926.1400 addresses operations, specifying requirements for operator qualification, inspection protocols, load ratings, and operational procedures.
Operators must receive training covering equipment capabilities, load handling procedures, hand signal communication, and emergency responses. Documented training records must demonstrate operator competency before independent operation.
ASME Standards
The American Society of Mechanical Engineers (ASME) publishes B30 series standards governing crane design, construction, installation, inspection, testing, maintenance, and operation. ASME B30.17 specifically addresses overhead and gantry cranes, including portable systems.
Manufacturers typically design equipment to ASME B30.17 standards, providing assurance that structural safety factors, design methods, and material specifications meet established engineering practices. Compliance with ASME standards proves particularly important when equipment serves regulated industries or operates in jurisdictions with strict enforcement.
Inspection and Certification
OSHA requires frequent and periodic inspections by competent persons—individuals possessing relevant knowledge, training, and experience to identify hazards and take corrective actions. Frequent inspections occur before each use shift, examining items including wire rope condition, hook latches, brake function, and structural integrity.
Periodic inspections—typically monthly or quarterly depending on usage—involve more comprehensive examination of components. Documentation of all inspections must be maintained, recording inspection dates, findings, and corrective actions taken. Many facilities engage third-party inspection services for periodic examinations, obtaining objective professional evaluation.
Conclusion: The Strategic Value of Mobile Gantry Crane Solutions
After two decades working with lifting equipment across manufacturing, construction, and maintenance applications, I’ve concluded that mobile gantry crane technology represents far more than simply another lifting tool—it fundamentally changes how organizations approach material handling challenges.
Mobile gantry crane systems deliver three distinct strategic advantages: operational flexibility enabling lifting capacity deployment matching real-time needs, capital efficiency providing substantial cost savings compared to fixed overhead systems, and implementation speed allowing rapid deployment without extensive facility modifications.
The global gantry crane market’s 4.50% CAGR growth through 2032 reflects increasing recognition that these portable lifting systems address fundamental limitations inherent in traditional fixed-position equipment. As manufacturing continues evolving toward flexible production, mass customization, and rapid changeover, mobile gantry crane solutions provide the adaptable lifting capacity these operational strategies require.
For organizations evaluating lifting equipment investments, mobile gantry crane options deserve serious consideration. Whether supplementing existing overhead crane systems, replacing expensive rental patterns, or enabling lifting capability in facilities without permanent crane installations, properly specified mobile gantry crane equipment delivers measurable operational and financial benefits.
The question isn’t whether mobile gantry crane technology provides value—thousands of successful implementations across every industrial sector definitively answer that. The relevant question becomes: How can your specific operations leverage these capabilities to improve productivity, enhance safety, and reduce material handling costs? That answer requires careful assessment of your unique requirements, but the potential rewards make that evaluation effort worthwhile.
