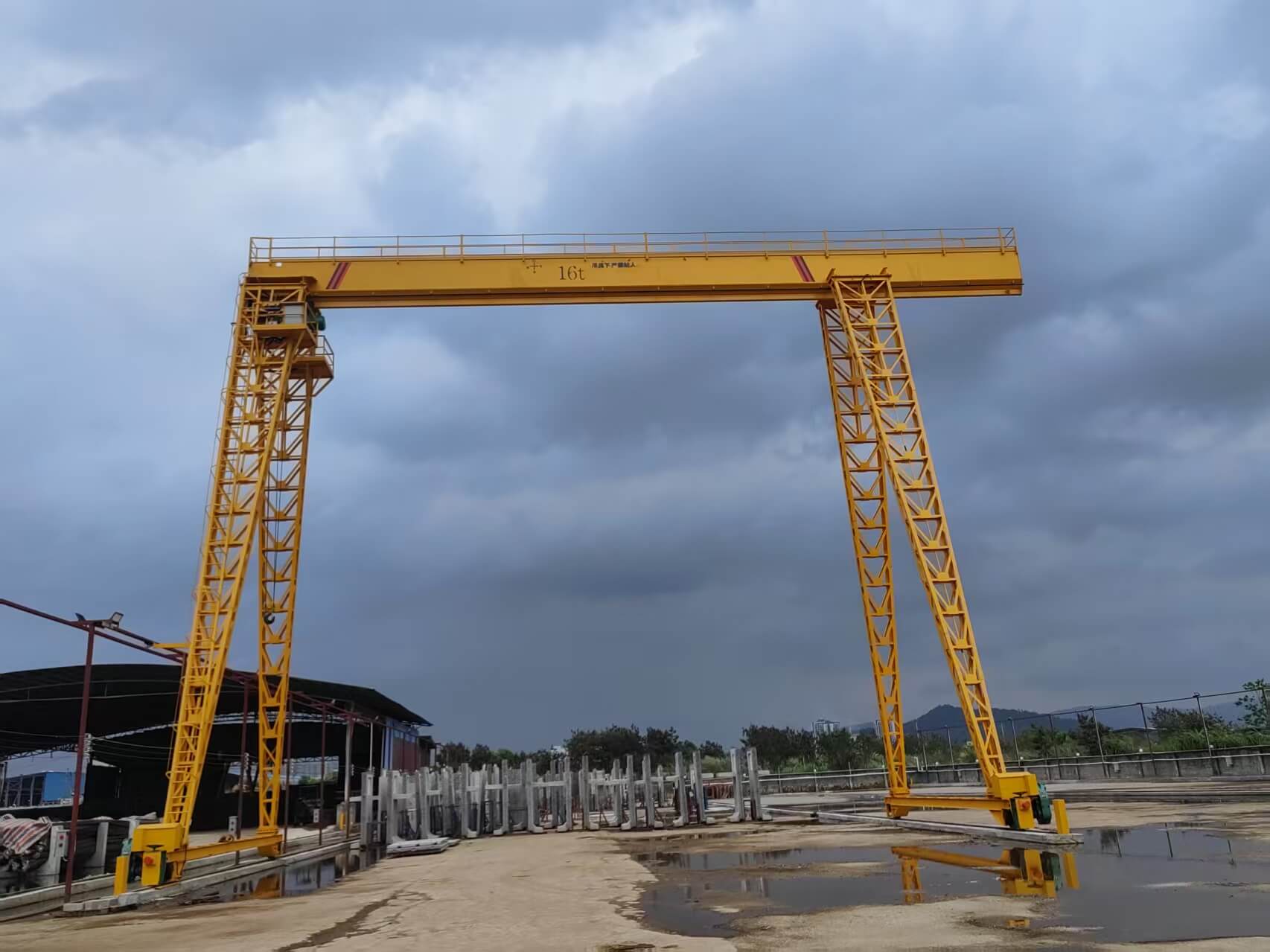

1. The Foundational Engineering and Strategic Importance
The safe, precise movement of massive, heavy objects defines the modern industrial world. Central to this global dynamic is the gantry crane, a marvel of engineering for heavy lifting. For example, it proves crucial across ports, shipyards, and fabrication facilities worldwide. Unlike the traditional overhead crane, which requires structural support, the gantry crane is a self-contained, portal-style structure. Legs support its bridge girder. These legs travel along a runway, typically on rails or tires. This independence grants the gantry crane unparalleled versatility. It allows for high-volume, outdoor material handling. Typical industrial gantry cranes offer lifting capacities up to 100 tons and spans up to 40 meters. Consequently, it stands as a pivotal heavy-duty lifting solution where building infrastructure is inadequate for extreme loads.
2. Core Mechanics and the Tri-Axis Movement System
Any efficient industrial lifting apparatus must control movement in three spatial dimensions. The gantry crane achieves this via a tri-axis system: vertical lift (hoisting), horizontal movement across the bridge (trolley traverse), and longitudinal movement along the runway (crane travel). The powerful hoist mechanism executes the vertical lift. The trolley system moves perpendicularly, positioning the load laterally. Finally, the crane travels on wheels, covering vast areas. Modern gantry cranes can achieve hoist speeds up to 20 meters per minute and crane travel speeds up to 100 meters per minute. Therefore, this controlled, multi-directional movement is critical for the precise positioning of multi-ton components.
3. Differentiating Gantry Cranes from Overhead Bridge Systems
The support structure is the fundamental distinction between a gantry and an overhead bridge crane. Operators cannot easily change the overhead bridge crane, which requires costly, permanent structural integration. The self-supporting gantry system, by contrast, uses its own legs. It independently bears the full weight of the load and the crane structure. As a result, gantry cranes prove significantly more economical and practical for outdoor applications. Portable gantry systems are routinely used for loads under 10 tons with lifting heights between 1 and 9 meters, making them ideal for outdoor maintenance. Thus, many choose the gantry style as the preferred cost-effective heavy lifting choice.
4. Classification: Full, Semi, and Specialized Designs
Industrial needs created a rich variety of gantry crane designs. Each design optimizes the crane for a specific function. Proper selection is critical to maximizing efficiency.

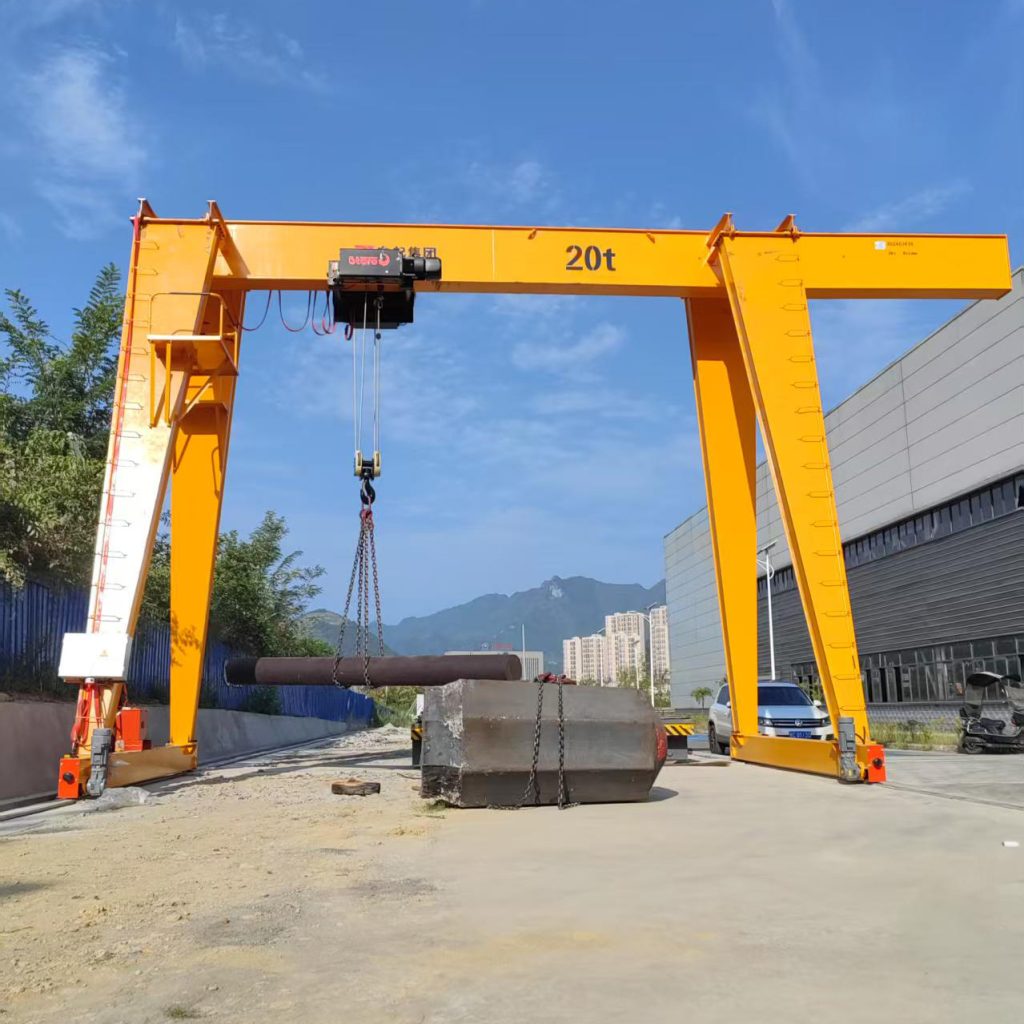

4.1. Full Gantry Cranes (Portal Cranes): The High-Capacity Backbone
The full gantry crane epitomizes heavy lifting capacity. It is entirely self-supporting on two ground-level rail legs and spans enormous distances. This is standard for shipyard gantry cranes and rail yard cranes. The largest Megamax ship-to-shore (STS) cranes offer safe working loads up to 120 metric tons in tandem lift configuration, a critical need for modern shipbuilding. These units function as strategic assets for ultra-heavy fabrication.

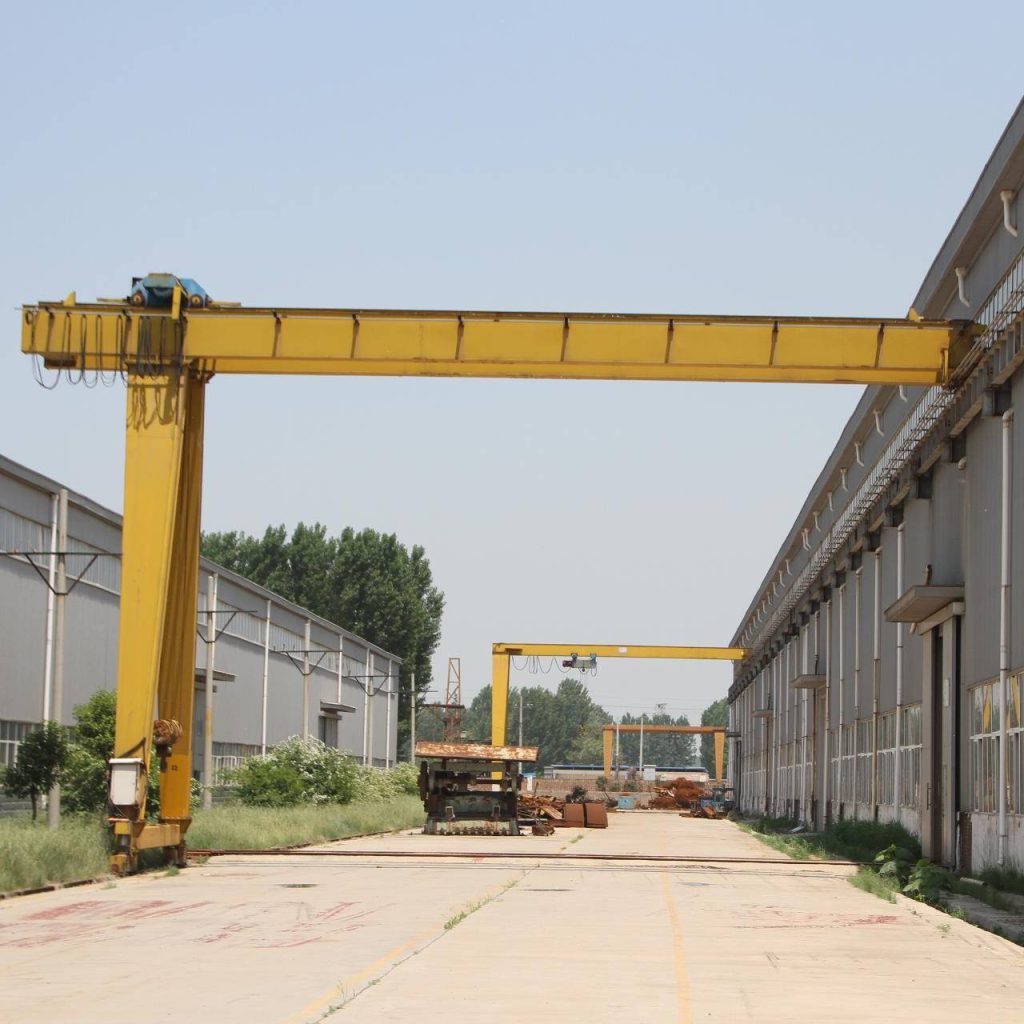

4.2. Semi-Gantry Cranes: The Space-Saving Hybrid Solution
Semi-gantry crane systems maximize floor space, often in combined indoor/outdoor operations. They feature a bridge supported by one leg on a ground rail. The opposite end, however, finds support from an elevated, wall-mounted runway. Standard single girder semi-gantries handle capacities from 1 to 20 tons, allowing a facility to use them along a wall for secondary tasks while the main overhead crane operates centrally. In essence, it increases the facility’s overall material handling throughput.
4.3. Rubber-Tyred Gantry (RTG) Cranes: Agility in Container Logistics
The Rubber-Tyred Gantry (RTG) crane is specifically built for high-density container terminals. RTGs run on large rubber tires, allowing quick movement between container stacks. RTG cranes are typically designed to stack containers up to 1-over-6 high and span eight container rows plus a truck lane. This mobility is essential for rapid stacking and retrieval operations. RTGs are a critical component of intermodal logistics infrastructure.
5. Key Industrial Applications: Where Gantry Cranes Dominate
Gantry cranes have diverse applications that drive productivity across global sectors.
5.1. Global Port and Terminal Operations
Container handling cranes (STS and RTG) facilitate the seamless transfer of cargo between sea and land. Their high speed enables the swift turnaround of megaships. Modern Super Post-Panamax STS cranes can achieve hoisting speeds up to 150 meters per minute and reach across 24 container rows, dramatically cutting ship-turnaround time. This capacity is necessary in today’s just-in-time global supply chain.
5.2. Shipbuilding and Heavy Manufacturing
In shipyards, gantry cranes move entire vessel blocks. In heavy manufacturing, they position immense components. The largest gantry systems can lift blocks up to 20,000 metric tons, a requirement for assembling massive LNG tankers. This requires millimeter-level positioning accuracy for complex assembly tasks.
5.3. Pre-Cast Concrete and Infrastructure Construction
The construction industry utilizes gantries to lift and place pre-cast concrete elements and bridge segments. A construction gantry crane operates over long, linear sections. For example, specialized bridge gantry cranes move segments weighing over 1,000 metric tons, a vital logistical benefit for linear infrastructure development projects like high-speed rail.
6. The Crucial Role of Automated Systems and Advanced Controls
Control systems define modern gantry crane performance. Automation enhances both productivity and safety.
6.1. Anti-Sway and Load Stabilization Technology
Load swing presents a challenge in high-speed gantry operation. Advanced anti-sway systems automatically counteract the pendulum motion of the suspended load. This technology is often a prerequisite for automated container cranes, ensuring stability despite trolley speeds reaching up to 240 meters per minute. Therefore, this system significantly reduces cycle times.
6.2. Remote Operation and Semi-Automation
Operators often run many new yard gantry cranes remotely from centralized control rooms. Systems handle automated travel and stacking functions. Automation upgrades saw over 310 STS cranes worldwide receive digital twin capabilities in 2023–2024, enabling precise, safe remote control. Overall, it improves throughput for high-efficiency port logistics.
7. Safety and Regulatory Compliance: The Non-Negotiable Imperative
The immense loads handled make safety protocols for heavy lifting equipment non-negotiable. International standards heavily regulate these systems.
7.1. Essential Safety Devices and Interlocks
Every gantry crane must include several critical safety devices. Overload Limiters prevent exceeding rated capacity. Upper and Lower Limit Switches prevent hoist damage. Modern wheel load monitoring systems track the 40-80 ton pressure per meter exerted by Mega-ship crane wheels, ensuring the quay structure remains safe under load. These interlocking systems offer the first line of defense against catastrophic failure.
7.2. Safe Operating Procedures and Personnel Training
Comprehensive operator training is legally mandated. This includes certification on specific gantry classes. Procedures like proper rigging techniques and pre-operation daily safety checklists are vital. Rigging a 100-ton turbine section requires verified load-testing documentation (typically 125% of the SWL), confirming all components are ready before the lift. Only fully trained personnel should operate this complex machinery.
8. Wire Ropes, Hooks, and Load Attachment: The Critical Links
The components holding the load—the wire ropes and the hook assembly—endure immense stress. They require constant vigilance.
8.1. Wire Rope Inspection and Maintenance
Gantry crane wire ropes are specialty steel cables. Operators must inspect them daily for signs of wear, abrasion, broken strands, or corrosion. A Megamax STS crane can use over 3,000 meters of wire rope in total, highlighting the scale of the maintenance task. Preventative wire rope replacement is a key practice to avoid sudden structural failure.
8.2. Hook and Sheave Integrity
The crane hook assembly is the final connection to the load. Technicians must check it for distortion, twisting, or proper safety latch function. The sheaves (pulleys) must rotate freely. Moreover, inspection must check for wear and grooving. Annual non-destructive testing (NDT) is mandated on main hooks over 50 tons to check for internal micro-cracks invisible to the naked eye.
9. Structural and Rail System Engineering Challenges
The moving load exerts immense forces. Consequently, the system needs a robust and precisely aligned structural system.
9.1. Gantry Leg and Girder Integrity
The legs and main bridge girders must withstand dynamic forces, wind load, and fatigue. Wind speeds can reach up to 72 km/h during in-service operation, necessitating robust structural integrity. Regular non-destructive testing (NDT) is essential. Ultrasonic testing, for example, is performed on critical welds to detect internal discontinuities.
9.2. Rail Alignment and Wheel Maintenance
The gantry crane runway must remain precisely level and straight. This prevents excessive wear on the wheels and drive mechanisms. The rail gauge must be maintained within tight tolerances, often measured to an accuracy of ±3 millimeters over a span of 30 meters. Misaligned rails cause accelerated wheel wear.
10. Power Delivery Systems: From Busbar to Rubber Tire
The massive power needed to move heavy loads must reach the crane reliably and efficiently.
10.1. Electrical Conductor Systems
An enclosed conductor bar system (busbar) or a festoon cable system supplies power to rail-mounted gantry cranes. Large STS cranes often require high voltages, such as 3.3 kV to 20 kV, for efficient power transmission across the long quayside. The integrity of the collector shoes is crucial; failure causes intermittent power loss in continuous lifting operations.
10.2. RTG Power Solutions and Environmental Impact
Rubber-Tyred Gantry (RTG) cranes traditionally rely on diesel. However, the industry is moving towards sustainable options, including Electric RTGs (E-RTGs). E-RTG conversions have been shown to achieve a reduction in CO2 emissions of 60-80% compared with conventional diesel-powered RTGs. Therefore, it addresses the market need for eco-friendly port equipment.
11. Case Study: Optimizing Logistics with Automated RTG Fleets
Automated RTGs offer a compelling example of advanced gantry application, used in highly automated container terminals globally.
11.1. Automated Gantry Crane Efficiency in Action
Automated Stacking Cranes (ASCs) operate on fixed, pre-programmed paths, stacking containers up to seven high with minimal human intervention. These systems are integrated with a terminal operating system (TOS). The average productivity of standard RTG equipment is around 28-31 container boxes per hour (moves per hour), a rate automation ensures remains consistent during peak times. This ultimately achieves yard utilization rates far exceeding manually operated facilities.
12. Maintenance Best Practices: Transitioning to Predictive Maintenance
Modern maintenance moves beyond reactive repairs, adopting a sophisticated, data-driven approach.
12.1. Utilizing Remote Condition Monitoring
Remote condition monitoring systems analyze sensor data. They use AI algorithms to detect anomalies that signify impending component failure. Using digital twin technology and Predictive Maintenance (PdM), many operators report a 28% reduction in unscheduled downtime and a 17% increase in asset lifecycle. This dramatically prevents costly, unplanned downtime. It also ensures the highest level of gantry crane uptime and reliability.
13. Economic and Financial Analysis: TCO and Life Cycle Costs
The decision to purchase a gantry crane is a strategic financial commitment that necessitates a thorough Total Cost of Ownership (TCO) analysis.
13.1. Beyond Initial Capital Expenditure
The TCO model must account for long-term energy consumption and maintenance. E-RTG cranes, for instance, offer maintenance and repair costs 30% lower than standard diesel RTGs due to reduced mechanical complexity, significantly lowering lifetime TCO.
13.2. Measuring Return on Investment (ROI)
The ROI is calculated based on productivity gains, like faster cycles and higher throughput. The low per-lift operating cost of an electric-powered gantry crane makes it financially sound. E-RTG systems, in particular, often achieve an individual payback period of around 2.2 years due to significant fuel savings. This makes it the most financially sound choice for long-term heavy industrial investment.
14. Environmental and Sustainability Considerations
Industrial compliance is stricter, making the environmental footprint of heavy lifting equipment a growing consideration.
14.1. Noise and Air Pollution Reduction
The shift from diesel-powered RTGs to electric models has a direct, significant impact on pollution. The adoption of electric power in a typical container terminal can reduce overall terminal CO2 emissions by 20% per TEU handled. Furthermore, the use of environmentally friendly hydraulic fluids contributes to a lower overall environmental risk profile.
14.2. End-of-Life and Material Management
Gantry cranes are highly recyclable due to their massive steel structure. A large STS crane, often weighing over 2,000 tons, provides a massive source of reusable steel once decommissioned, supporting the larger goal of circular economy principles in heavy machinery.
15. The Future Trajectory: AI Integration and Smart Cranes
The future of the gantry crane will be defined by its integration with Artificial Intelligence (AI) and the “Smart Crane.”
15.1. AI-Driven Stacking and Routing
AI is expected to optimize gantry operations further by calculating the most efficient stacking positions in real-time. This level of AI integration is essential for reducing vessel turnaround time by over 30% on average, a key metric for modern port competition. In addition, it autonomously plans the shortest, most energy-efficient travel routes. This high level of AI-optimized logistics will push stacking density and operational speed beyond current limits.
