What is the KBK Light Crane System?

Table of Contents

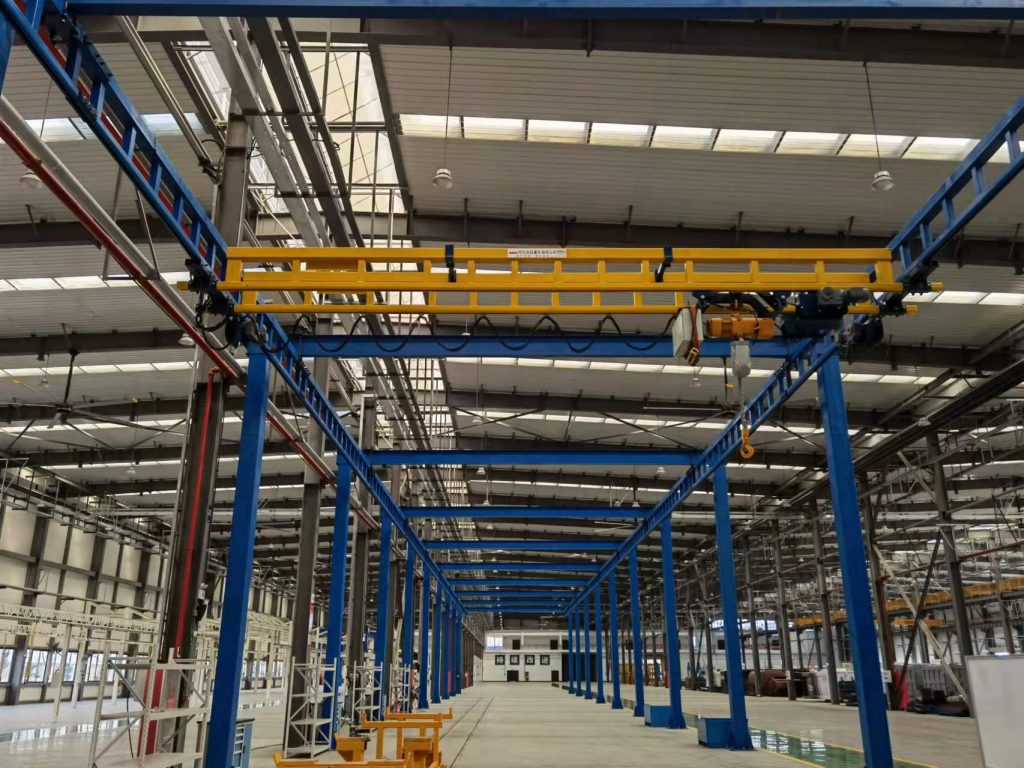

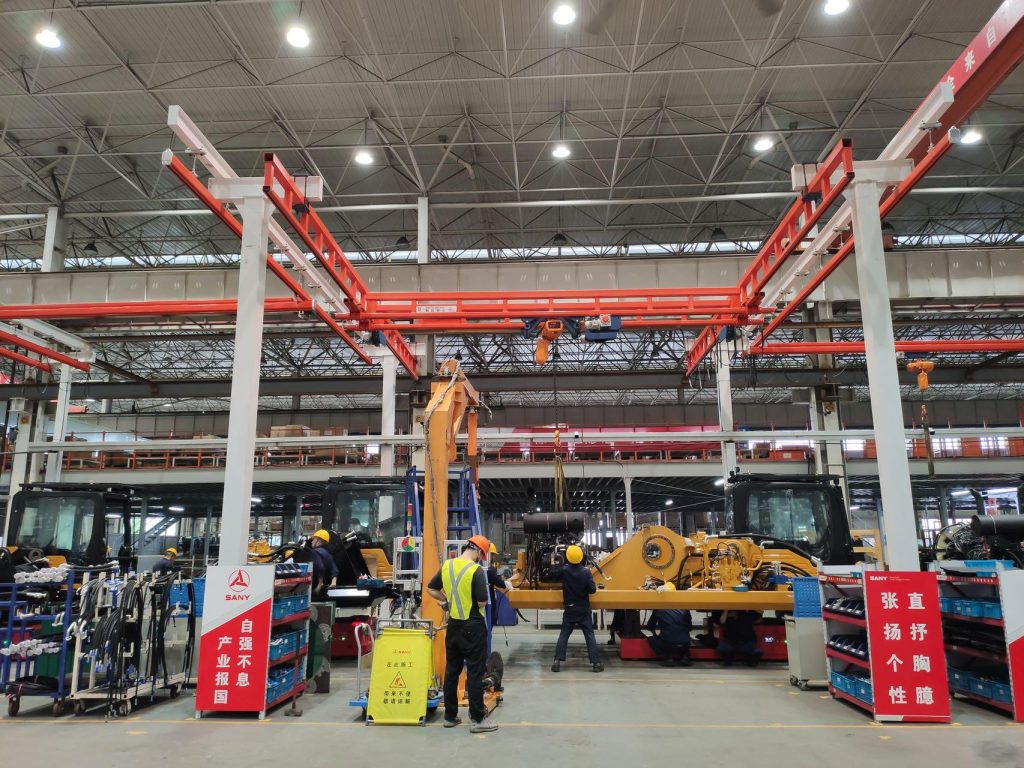

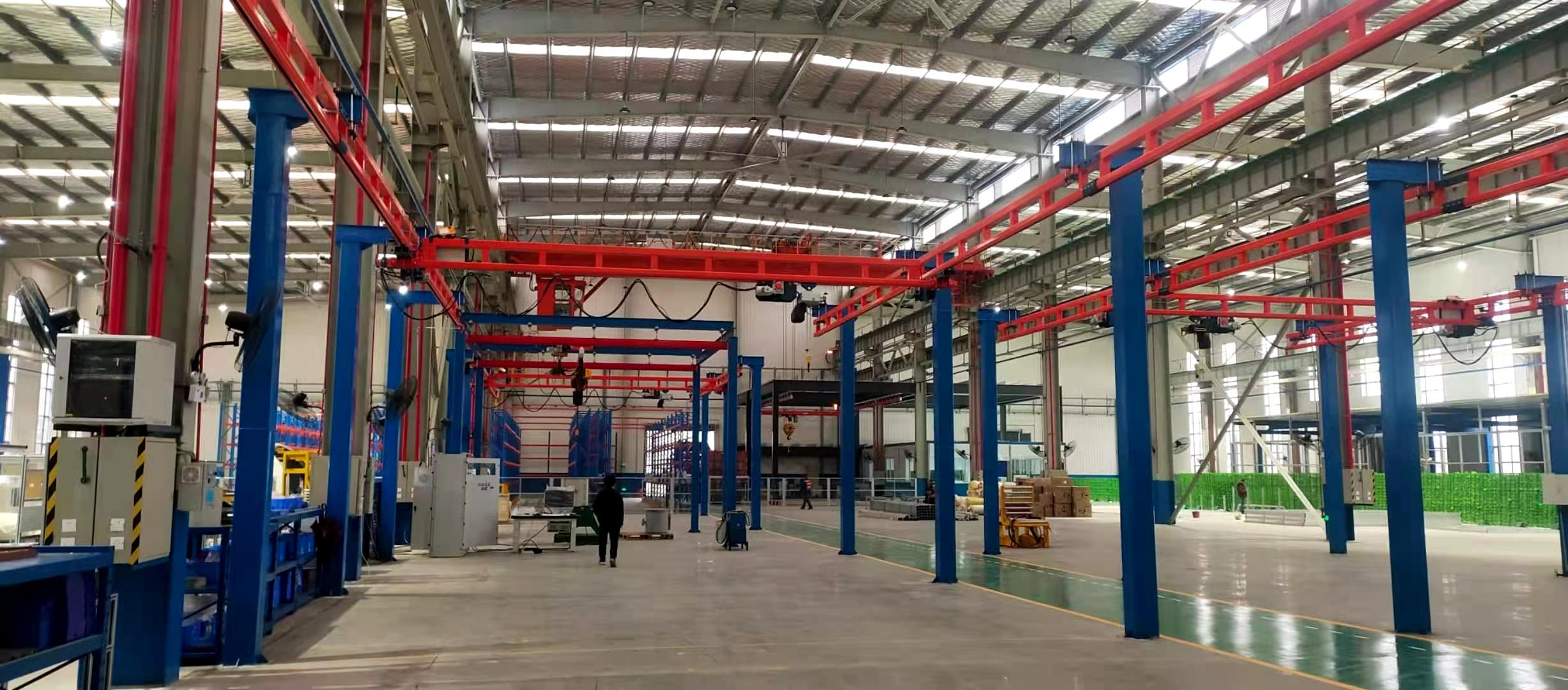

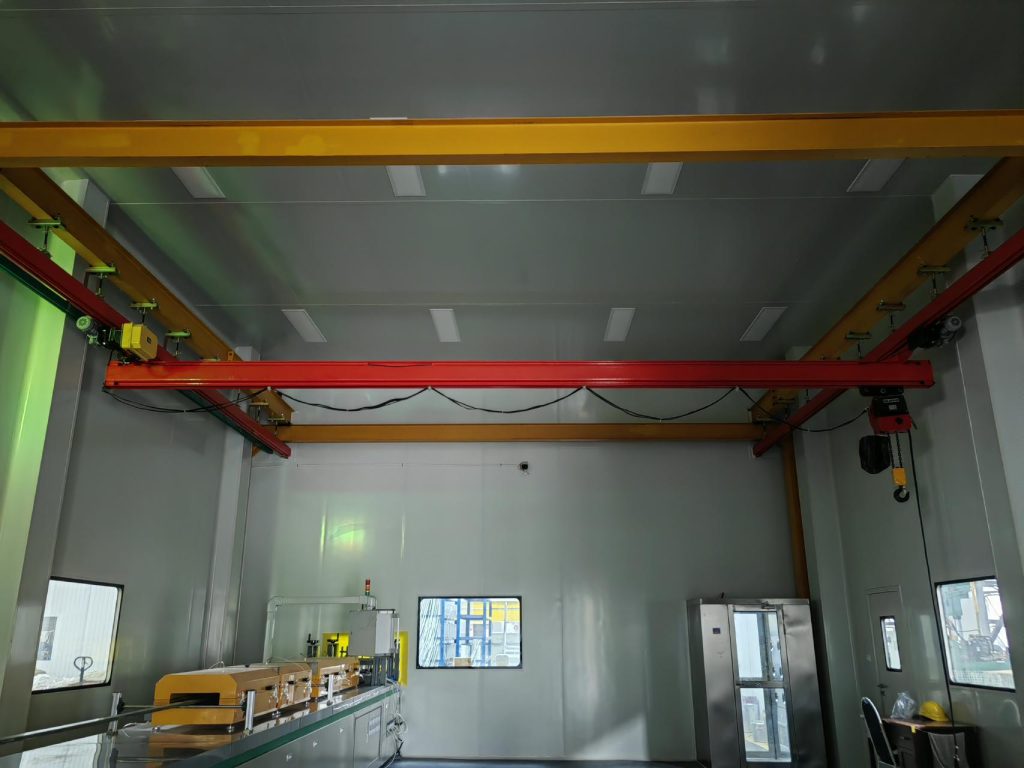

The KBK light crane system is a modular suspended lifting equipment originating from German engineering standards. KBK is an abbreviation for the German term “Kilolift Brückenkran.” This integrated system combines I-beam track infrastructure, electric hoists, and specialized lifting fixtures to provide efficient material handling solutions for industrial manufacturing environments.

According to international standards ISO 4875 (Classification of Cranes) and ISO 13849-1 (Safety of Machinery—Safety-Related Parts of Control Systems), the KBK light hoist system is classified as a suspended lifting device. Its design, manufacturing, and deployment must comply with European CE certification requirements and national crane safety regulations in respective jurisdictions.

Core Components of KBK Light Crane Equipment

Track System Infrastructure is manufactured from I-beam or H-profile steel according to DIN 536 standards, engineered to withstand both static and dynamic loads under design operating conditions. Electric Hoists serve as the primary driving mechanism, typically supplied by internationally recognized manufacturers such as Bosch Rexroth (Germany), STAHL Electrical Hoist Systems (Germany), and equivalent certified producers.

Trolley Drive Mechanisms utilize precision-engineered reduction gearboxes and electric motors to enable horizontal movement along the track system. Safety Protection Devices include:

Mechanical braking systems (compliant with ISO 14119 standards)
Electronic load limiting devices (electronic or mechanical design)
Emergency stop buttons (compliant with ISO 13850 standards)
Grounding and insulation monitoring systems

International Standards and Safety Compliance Framework

KBK light crane system design, manufacturing, installation, and operational procedures must comply with:

ISO 4875 — Classification and general technical requirements for cranes
ISO 13849-1 — Performance Level (PL) requirements for safety-related control systems
EN 14492 — Safety specifications for suspended load handling devices
ASME HST-1 (United States) — Safety standard for suspended platform systems
CSA Z150 (Canada) — Lifting devices and equipment safety standards
JIS B8823 (Japan) — Overhead traveling cranes safety specifications

These standards ensure global interoperability and operational safety across international jurisdictions.

Technical Characteristics and Operational Features

Modular Design Architecture and Flexible Configuration

Modular design philosophy represents the fundamental characteristic distinguishing KBK light crane systems from conventional alternatives. According to technical documentation from the European Federation of Materials Handling Manufacturers (FEM), modular systems enable customized configuration aligned with specific user requirements, eliminating the necessity for large-scale capital investment in oversized equipment.

Standard load capacity specifications available in the market include:

125 kg, 250 kg, 500 kg
1,000 kg, 1,500 kg, 2,000 kg
3,000 kg, 5,000 kg

Users can select appropriate capacity ratings based on actual material requirements and can implement parallel multi-unit configurations for enhanced lifting capability.

Energy Efficiency and Operational Cost Structure

Comparative analysis with traditional bridge cranes reveals distinct energy efficiency advantages of KBK light hoist systems:

Optimized Motor Power Configuration: A standard 1,000 kg capacity KBK electric hoist typically requires electric motor ratings of 2.2-3 kW, whereas equivalent traditional bridge cranes may require 5.5-7.5 kW motor specifications. This differential results from precision-engineered reduction gearboxes and optimized mechanical design architecture inherent to KBK systems.

Variable-Speed Operation Capability: KBK light crane systems can implement adaptive speed adjustment based on actual load conditions. For partial loads, the system can reduce motor rotational speed, thereby decreasing energy consumption. According to fundamental motor engineering principles, power consumption correlates with rotational speed cubed; consequently, a 20% rotational speed reduction can theoretically achieve approximately 49% power consumption reduction.

Reduced Startup Impact: The system’s smooth acceleration and deceleration capability eliminates the inrush current characteristic of traditional squirrel-cage induction motors, theoretically extending electrical component operational lifespan through reduced thermal and mechanical stress.

Installation Timeline and Implementation Efficiency

According to ISO 14119 guidelines and standard installation protocols, typical KBK light crane system deployment encompasses:

Site Assessment and Engineering Design — 1-2 weeks
Track Installation and Leveling Verification — 3-5 days
Electrical Connection and System Testing — 2-3 days
Safety Inspection and Performance Verification — 1-2 days
Operator Training and Documentation — 1-2 days

Total Implementation Timeline: 14-21 days

By comparison, traditional bridge crane installation typically requires 6-12 weeks due to on-site structural welding, foundation reinforcement, complex electrical integration, and extensive commissioning procedures.

Global Application Status and Industry Perspective

European Manufacturing Sector Adoption

According to the Verband Deutscher Maschinen- und Anlagenbau (VDMA) — the German Engineering Federation and primary representative of European machinery manufacturers — modular lifting system adoption among small-to-medium European manufacturing enterprises demonstrates sustained growth trajectory. Although specific market penetration data remains subject to commercial confidentiality constraints, industry observation indicates sustained demand across:

Automotive component manufacturing
Precision mechanical machining and assembly operations
Electronic and electrical equipment manufacturing
Food and beverage processing industries
Plastic injection molding and mold operations

The VDMA Technical Commission on Lifting Technology conducts periodic industry surveys confirming steady adoption trends, though detailed quantitative metrics remain proprietary.

North American Manufacturing Market Trends

The Crane Manufacturers Association of America (CMAA) regularly publishes comprehensive industry status reports. Based on systematic observation of North American markets, suspended lifting systems (including KBK and functionally equivalent products) demonstrate the following application characteristics:

Increasing consideration within factory automation and Industry 4.0 upgrade initiatives
Strategic alignment with smart manufacturing and digital transformation strategies
Growing demand in small-batch, customized production environments

Regional applications concentrate primarily in:

Automotive manufacturing
Aerospace component fabrication
Heavy equipment engineering
Medical device assembly

Asia-Pacific Market Development Patterns

The China Electrical Industries Association (CEIA) and Japan Industrial Machinery Manufacturers Association (JIMMA) market analysis reports indicate increasing market acceptance of KBK light crane systems throughout Asia-Pacific regions. Primary application concentration areas include:

Pearl River Delta (Guangdong) electronic component manufacturing clusters
Yangtze River Delta (Shanghai/Jiangsu) automotive component production zones
Central China (Wuhan/Chongqing) precision machinery manufacturing sectors

However, detailed market penetration statistics remain limited due to commercial confidentiality agreements among manufacturers and distributors.

Technical Comparison: KBK Systems vs. Traditional Equipment

Load-Bearing Capacity Range Analysis

Equipment Category	Standard Capacity Range	Coverage Scope	Scalability
KBK Light Systems	125 kg — 5,000 kg	Single system to 5 tons	Multiple parallel units enable virtually unlimited expansion
Traditional Bridge Cranes	1 — 50+ tons	Wide single-unit capacity range	Requires complete system replacement for capacity increase
Manual Chain Hoist + Rigging	0.5 — 10 tons	Manual operation required	Flexible but labor-intensive
Pneumatic Lifting	0.1 — 2 tons	Light-duty applications	Limited expansion options

Space Utilization and Layout Flexibility

KBK Light Crane Systems offer distinct advantages:

Track configurations adapt to diverse facility layouts (straight, L-shaped, Z-shaped, circular)
Multiple parallel systems can provide overlapping coverage of production zones
Facilitates post-installation modifications and capacity expansions
Minimal structural modifications required to existing facilities

Traditional Bridge Cranes characteristics:

Require substantial support structure spanning
Track layouts remain relatively fixed post-installation
Major facility modifications necessary for system repositioning
Renovation costs and implementation timelines substantial

Safety Performance and International Compliance Architecture

International Safety Standard Compliance Framework

According to ISO 13849-1 standards, industrial lifting equipment control systems must achieve specified Performance Levels (PL) corresponding to different risk categories:

Performance Level a (PLa) — Baseline safety requirements; single-channel fault detection
Performance Level d (PLd) — Enhanced reliability; dual-channel architecture with diagnostic coverage
Performance Level e (PLe) — Maximum safety assurance; fully redundant architecture with continuous diagnostics

Contemporary KBK light crane systems typically achieve PLd or PLe certification, requiring:

Dual-channel fault detection mechanisms
Continuous self-diagnostic functionality
Automated fault logging and alarm notification
Regular third-party certification and recertification

Braking Systems and Load-Holding Integrity

KBK light hoist systems incorporate mechanical braking devices engineered according to ISO 14119 specifications. The brake torque design principle ensures:

Braking Torque ≥ Rated Load × Safety Factor (125%) × Transmission Ratio

This engineering principle guarantees that under maximum adverse operating conditions—load exceeding rated capacity by 125%—the braking system reliably arrests system movement, preventing catastrophic descent failure regardless of electrical system malfunction.

Periodic Inspection and Certification Requirements

According to international and regional crane safety regulations (ISO 4875, ASME, CSA, JIS standards), KBK light crane systems require scheduled preventive inspections:

Monthly Inspections: Visual condition assessment, functional testing of emergency systems
Quarterly Inspections: Load testing, brake performance verification, electrical system diagnostics
Annual Certification: Comprehensive third-party assessment and compliance verification by certified inspectors

Inspection records must be archived and maintained as legal documentation for liability protection and regulatory compliance demonstration.

Cost Structure and Financial Analysis Framework

Initial Capital Investment Components

A standard 1,000 kg capacity KBK light crane system investment structure typically comprises:

Equipment Procurement: Track infrastructure, electric hoist, control system hardware components
Installation Services: Labor, auxiliary materials, facility modifications
Electrical Infrastructure: Power circuit upgrades, distribution panel modifications (if required)
Certification and Testing: Third-party safety certification, performance validation testing
Training and Documentation: Operator instruction, technical documentation translation

Actual investment costs vary significantly based on geographic location, equipment supplier, customization requirements, and facility-specific conditions. Consultation with qualified suppliers for formal project quotations is strongly recommended.

Operational and Maintenance Cost Considerations

Annual operational costs for KBK light crane systems typically include:

Periodic Inspection Fees: Third-party certified inspection and compliance verification (annual or multi-year intervals)
Component Replacement: Wear-item replacement (brake pads, transmission fluid, seals) according to scheduled maintenance intervals
Emergency Repair Services: Electrical and mechanical component failure response and restoration
Preventive Maintenance: Lubrication replenishment, system calibration, performance optimization

Specific cost components depend substantially on:

System utilization frequency
Operating environment conditions
Implemented maintenance strategy
Equipment age and component wear patterns

Recommendation: Contract maintenance service agreements with qualified suppliers to establish transparent cost responsibility allocation and service response protocols.

Critical Selection and Implementation Factors

Requirements Assessment Process

Prior to KBK light crane system selection, organizations must establish clarity regarding:

Load Characteristics
- Maximum single-component weight
- Component geometry and center-of-gravity distribution
- Special fixture requirements (vacuum lifting pads, magnetic plates, custom rigging)
Operating Environment Specifications
- Temperature range requirements (standard systems: -5°C to +40°C operational envelope)
- Humidity levels and corrosive atmospheric conditions (chemical plants, food processing facilities)
- Hygiene and sanitation requirements (pharmaceutical, food service industries)
- Explosive atmosphere classifications (hazardous location requirements)
Utilization Frequency Parameters
- Average daily lifting cycles
- Operating shift configuration (single-shift, double-shift, continuous operations)
- Seasonal or cyclical usage patterns
Facility Infrastructure Assessment
- Building dimensions and support beam/column locations
- Electrical infrastructure capacity and power quality specifications
- Ceiling height and structural load-bearing capacity verification
- Utility accessibility for equipment service and maintenance

Supplier and Equipment Selection Criteria

When evaluating KBK light crane system suppliers, consider:

Quality Management Certification: ISO 9001, ISO 14001, ISO 45001 compliance
Technical Support Capability: Design consultation, installation guidance, ongoing technical support capacity
Supply Chain Reliability: Component availability, import/export logistics, lead-time predictability
Aftermarket Support: Spare parts accessibility, failure response protocols, service costs
Local Service Infrastructure: Geographic proximity of authorized service centers, language support

Strategic Considerations:

International brand suppliers typically offer standardized technical documentation and global spare parts availability, but may involve extended procurement timelines and higher costs
Regional suppliers may provide superior response times and cost efficiency, but require verification of technical competency and compliance credentials

Implementation Process and Critical Procedural Elements

Pre-Installation Design and Planning Phase

Initial KBK light crane system implementation requires comprehensive site assessment and detailed engineering design:

Measure facility dimensions, support structure locations, electrical infrastructure
Develop track layout schematics with load distribution calculations
Verify building structural load-bearing capacity for anticipated loads
Establish electrical connection architecture aligned with local codes
Develop comprehensive installation timeline and resource allocation plan

This phase necessitates collaborative engagement between engineering professionals, facility operations personnel, and qualified system designers to ensure final design specifications simultaneously satisfy production requirements and regulatory safety compliance mandates.

Installation and Commissioning Procedures

Critical installation process elements include:

Track Installation: Precision installation with leveling accuracy typically not exceeding ±5mm deviation from design specification

Electrical Integration: Meticulous adherence to electrical schematics, ensuring proper grounding, circuit protection, and insulation integrity per applicable standards

Load Testing: Pre-operational verification testing at 1.25× rated load capacity to validate structural and mechanical system integrity

Safety Device Validation: Comprehensive functional verification of braking systems, load limiters, emergency stop circuits, and alarm notification mechanisms

Personnel Training and Comprehensive Documentation

Operators and maintenance personnel utilizing KBK light hoist systems require formal instruction and competency-based certification:

Required Training Components:

Safe operational procedures and load calculation methodologies
Daily maintenance and inspection responsibilities
Hazard recognition and emergency response protocols
Prohibited operations (overload, excessive speed, improper rigging)

Essential Technical Documentation:

Equipment operating manuals and safety specifications
Electrical schematics and control system diagrams
Preventive maintenance schedules and record-keeping systems
Periodic inspection reports and certification documentation

Comparative Analysis: KBK Systems vs. Alternative Lifting Methods

Comparison with Manual Chain Hoists

Manual Chain Hoist Advantages:

Minimal capital investment requirements
Absence of electrical infrastructure requirements
Simple maintenance protocols, minimal failure modes

Manual Chain Hoist Limitations:

Substantial operator physical exertion; limited operational efficiency
Elevated safety risk due to human factor variability
Unsuitable for frequent, repetitive lifting applications
Limited load precision and speed control

Application Recommendation: KBK light crane systems are strategically appropriate for frequent, sustained material handling requirements where operator fatigue and safety considerations are significant organizational concerns.

Comparison with Traditional Bridge Cranes

Traditional Bridge Crane Advantages:

Substantial load-bearing capacity (100+ ton capability)
Mature design technology; numerous qualified manufacturers
Established operational protocols and maintenance procedures

Traditional Bridge Crane Limitations:

Substantial initial capital investment
Extended installation and commissioning timelines (6-12 weeks)
Limited facility layout flexibility
Elevated operational and maintenance costs
Difficulty accommodating future layout modifications

Strategic Positioning: KBK light crane systems are optimally suited for:

Small-to-medium manufacturing enterprises
Load requirements not exceeding 5 tons
Facilities requiring flexible equipment reconfiguration
Organizations prioritizing rapid deployment

If you need professional technical guidance or product quotations, please feel free to contact us. CATET will provide you with the best service and the most favorable quotes.
