10 Ton Single Beam Semi Gantry Crane – Cost-Effective Outdoor Lifting Solution
The 10 Ton Single Beam Semi Gantry Crane is a professional material handling solution specially designed for outdoor yards, construction sites, cargo storage areas and open assembly zones. This semi gantry crane combines high-strength steel structure with reliable electric hoist system, providing efficient 10-ton lifting capacity without requiring full factory building support. With flexible one-side ground rail design, it delivers stable, safe and cost-effective lifting performance for various non-indoor applications.

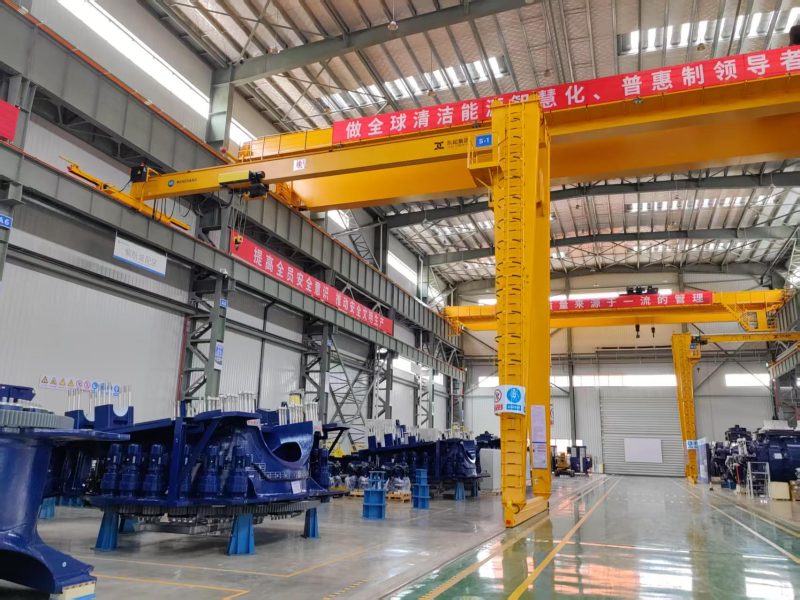

10 Ton Single Beam Semi Gantry Crane
Technical Specifications and Performance Features
The 10-ton semi gantry crane offers robust lifting capability with optimized single-beam structure, ensuring excellent stability and load distribution across spans up to 40 meters. The equipment delivers smooth horizontal travel and precise vertical lifting, perfectly balancing operational efficiency with site adaptability.
Mechanical Design Features
Built with proven engineering for demanding environments:
- High-strength steel main beam and support legs
- Single-beam configuration for reduced weight and cost
- One-side ground rail + one-side overhead rail design
- Durable polyurethane or steel wheels with reliable bearing system
- High-quality electric hoist or open winch trolley integration
- Anti-corrosion surface treatment suitable for outdoor use
Operational Features
The semi gantry system provides:
- Smooth long travel and cross travel movement
- Precise lifting control with variable frequency option
- Wireless remote control or pendant operation
- One-person operation capability for maximum efficiency
- 24-hour continuous operation in various weather conditions
Safety and Protection Systems
Comprehensive safety features include:
- Travel limit switches in all directions
- Emergency stop button on pendant and remote
- Overload protection device
- Motor thermal overload protection
- Phase loss and wrong phase protection
- Anti-derailment devices and rail sweeps
Installation and System Integration
Flexible installation options:
- Quick assembly with bolt connection design
- No need for full factory building structure
- Ground rail foundation only on one side
- Easy integration with existing loading platforms
- Reserved interfaces for future expansion
Control System Compatibility
Supports multiple control methods:
- Standard pendant control with emergency stop
- Wireless remote control (optional)
- Cabin control available for special requirements
- Frequency inverter for smooth start/stop
- Compatible with PLC automation systems
Technical Performance Data
Standard Specifications:
- Model: 10 Ton Single Beam Semi Gantry Crane
- Rated Load: 10 Ton
- Span Range: 6~40 meters
- Lifting Height: 6~20 meters
- Work Duty: A3 (ISO/FEM standard)
- Power Supply: 200~600V, 50/60Hz
- Design Standard: GB3811
- Certification: ISO 9001, CE
- Protection Class: IP54/IP55 (hoist and electrical components)
Quality Manufacturing Standards
Manufactured under strict quality system:
- Full material traceability and welding inspection
- 100% non-destructive testing on critical welds
- Complete load testing before delivery
- Standard 12-24 months warranty
- Comprehensive technical documentation and certificates
Application Suitability
Ideal for various outdoor and semi-indoor applications:
- Construction sites and precast yards
- Open storage and logistics centers
- Steel structure fabrication workshops
- Port and railway cargo handling
- Mining and quarry operations
- Shipbuilding and heavy assembly areas
Technical Support and Configuration
provides complete support:
- Professional span and foundation design assistance
- Customized solutions for special voltage and environment
- Global technical consultation and after-sales service
- Complete installation guidance and training
- Spare parts availability worldwide
Maintenance Requirements
Simple and cost-effective maintenance:
- Standardized components for easy replacement
- Accessible grease points and inspection platforms
- Regular visual and functional checks recommended
- Annual professional inspection advised
- Minimal downtime during routine maintenance
Contact today for your customized 10 Ton Single Beam Semi Gantry Crane solution. Whether you need standard configuration or fully customized design for Southeast Asia, Middle East, Africa or American markets, our professional team is ready to provide the most cost-effective outdoor lifting solution for your specific working conditions.
