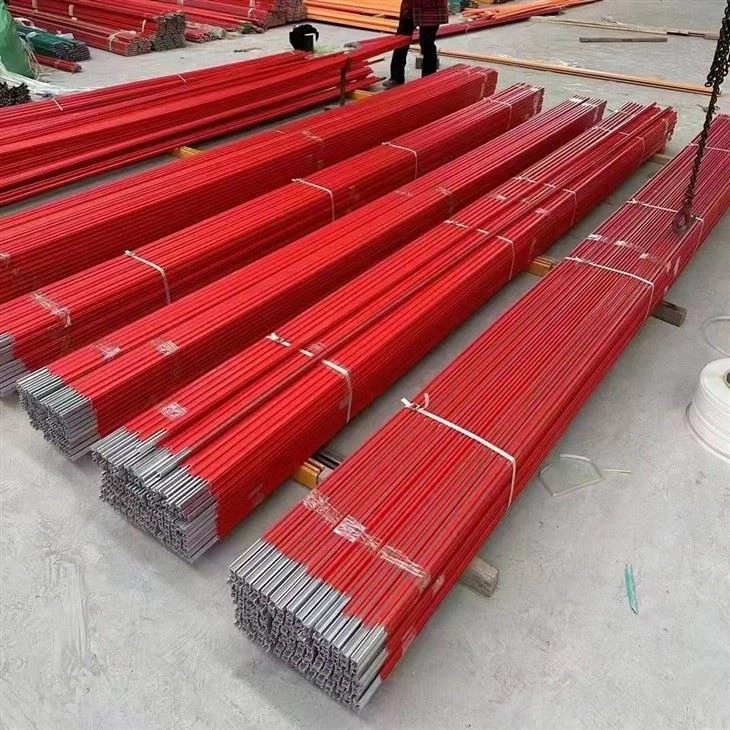

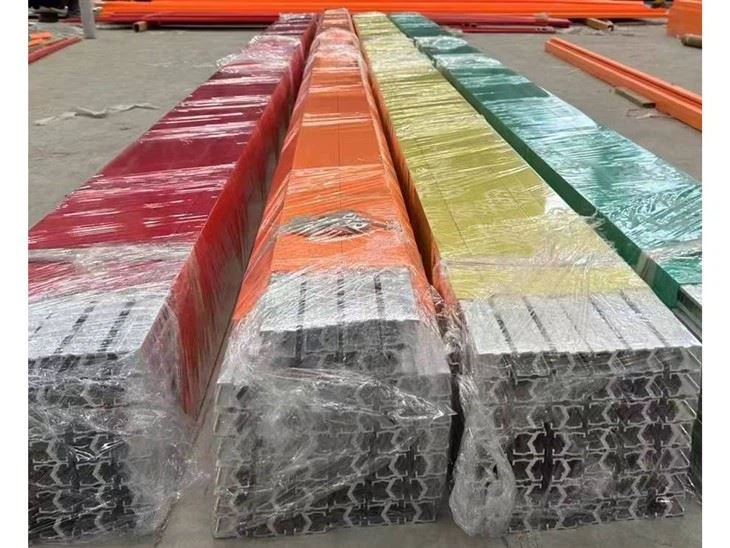

CATET Crane Power Busbar 200A-2000A
Technical Specifications and Performance Features
The system supports rated currents from 200A to 2000A with voltage ranges of 220V-1000V (three-phase AC). It features low contact resistance for minimal energy loss and handles maximum loads up to 500A depending on crane requirements. Copper or aluminum conductors paired with PVC shell enhance overall efficiency and adaptability.
Mechanical Design Features
The crane power busbar incorporates durable components for consistent performance:
- Copper or aluminum conductors for optimal conductivity
- Polyvinyl chloride (PVC) shell with excellent corrosion and oxidation resistance
- Low contact resistance to reduce power loss
- Versatile installation: hanging, suspended, or ground laying
- Operating temperature from -20°C to +50°C
Operational Features
This busbar system provides:

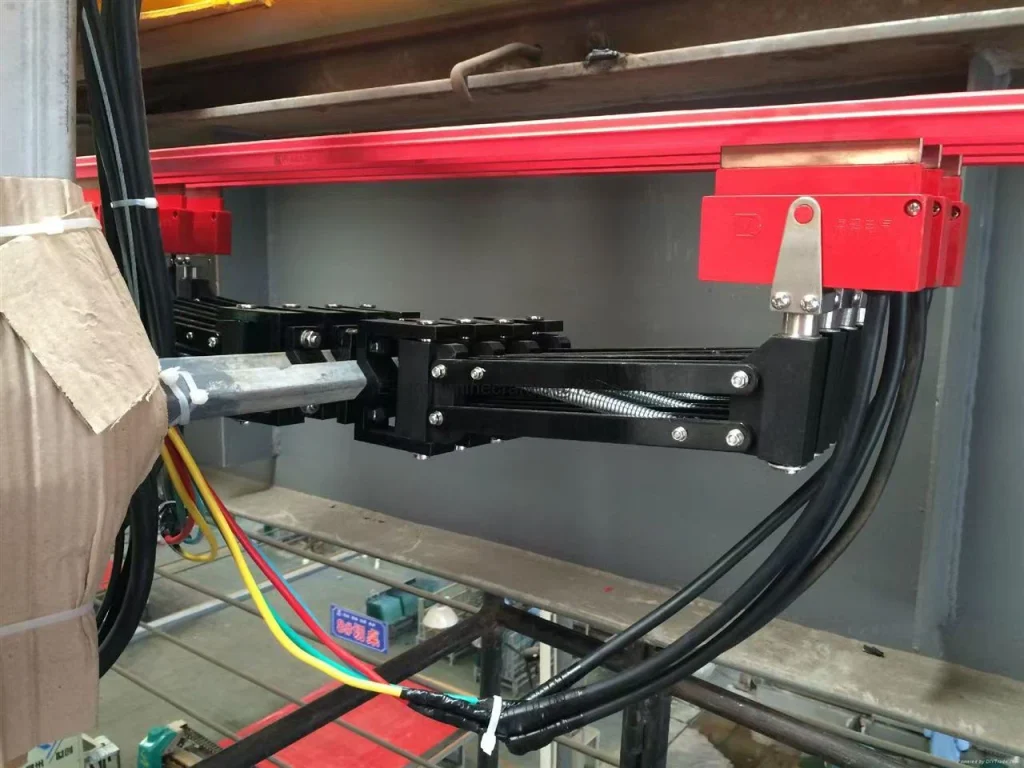

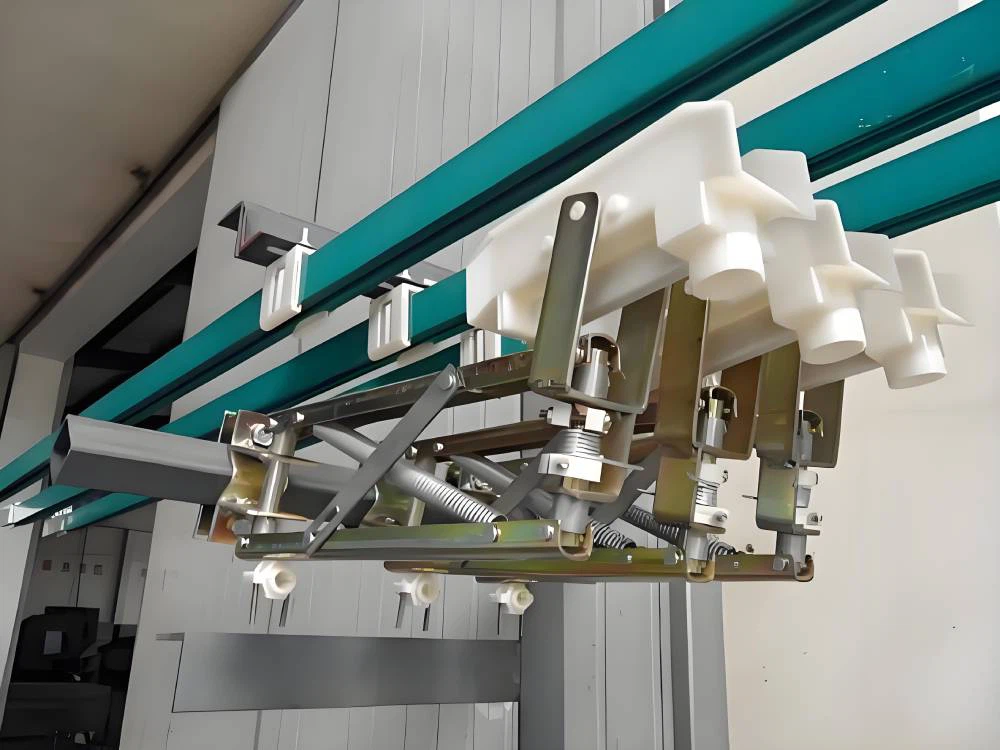

- Uninterrupted power via stable busbar-rail contact during movement
- High-current capacity up to 2000A for heavy-duty applications
- Energy-efficient transmission lowering operational costs
- Customizable current, voltage, and materials
- Resilience in humid, high-temperature, or corrosive conditions
Safety and Protection Systems
Key safety elements include:
- PVC insulation for reliable protection and durability
- CE and ISO9001 certifications for quality assurance
- Secure performance in harsh environments
- Design minimizing interruptions and risks
Installation and System Integration
Flexible mounting options:
- Hanging, suspended, or ground-based layouts
- Seamless fit with bridge cranes, gantry cranes, and hoists
- Adaptable to existing structures
- Quick setup in varied workspaces
Control System Compatibility
The crane power busbar integrates with:
- Three-phase AC standard connections
- Tailored voltage and current specifications
- Existing equipment controls
- Continuous supply for dynamic operations
Technical Performance Data
| Parameter | Specification |
|---|---|
| Rated current | 200A~2000A (customizable according to equipment requirements) |
| Voltage level | 220V~1000V (three-phase AC, customizable) |
| Conductive material | Copper/Aluminum (optional) |
| Contact resistance | Low contact resistance design to reduce energy loss |
| Maximum load | Up to 500A (according to the crane power) |
| Insulation method | Hanging/Suspended/Ground laying (customizable) |
| Insulation shell | Polyvinyl chloride (PVC) shell with good insulation performance and corrosion resistance |
| Ambient temperature | -20°C to +50°C |
| Certification | CE, ISO9001 |
Quality Manufacturing Standards
Adhering to CATET protocols:
- Precision engineering with premium materials
- Rigorous testing and quality checks
- CE and ISO9001 compliant production
- Full documentation included
Application Suitability
Ideal for industrial scenarios:
- Bridge cranes with mobile power needs
- Gantry cranes in production lines
- Electric hoists requiring steady supply
- High-movement, high-load operations
- Challenging sites with chemicals or moisture
Technical Support and Configuration
Ensure peak performance with the crane power busbar:
- Expert guidance on customization
- Equipment-specific selection advice
- Detailed user manuals
- Dedicated ongoing support
Maintenance Requirements
Simple upkeep includes:
- Routine slider and contact cleaning
- Regular insulation and connection inspections
- Easy slider replacements
- Minimal downtime protocols
Contact CATET for tailored crane power busbar solutions, customization, and integration to power your lifting equipment efficiently.
