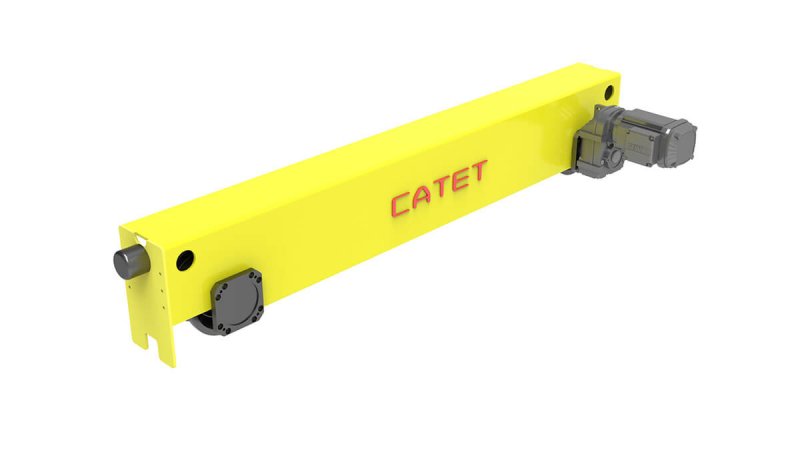

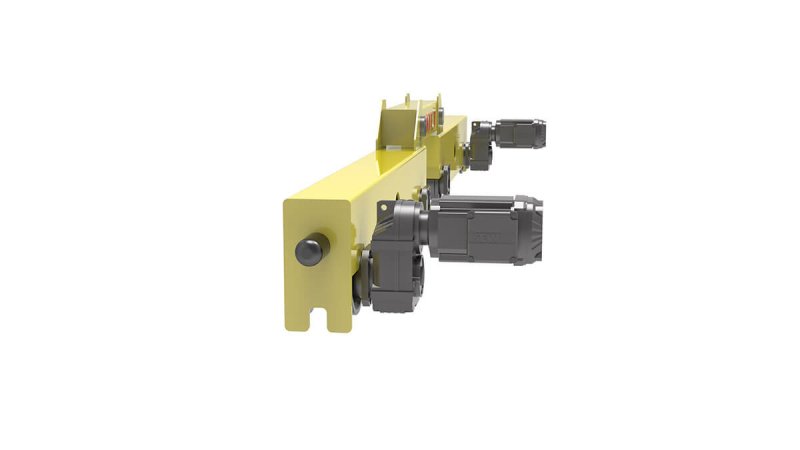

Crane End Carriage Set 1-500T – European Standard Solution
Introduction
The Crane End Carriage Set (End Beam Set) is a critical structural component for overhead crane systems, meeting strict European EN 13001 and CE regulations. High-strength steel (S355/S460) and precision manufacturing ensure reliable load support, stability, and durability in industrial applications.
Technical Specifications and Performance Features
Supports 1-500 tons load with 2.5:1 safety factor. Key specs:
- Load Capacity: 1-500 tons (customizable)
- Material: High-strength steel (S355/S460)
- Standards: EN 13001, ISO 9001, CE certified
- Surface Treatment: Anti-corrosion coating
- Operating Temperature: -40°C to +60°C
- Safety Factor: 2.5:1 minimum
- Customization: Multiple sizes/configurations
Delivers optimized performance and compliance.
Mechanical Design Features
- High-strength beams: S355/S460 grade steel
- Precision CNC machining: Dimensional accuracy
- Robust connections: Welded/bolted joints
- Multi-layer coating: Anti-corrosion protection
- Modular design: Easy assembly
Operational Features
- Load distribution: Optimized stress patterns
- Vibration damping: Enhanced stability
- Deformation resistance: Maintains shape under load
- Fatigue resistance: Millions of cycles
- 25+ years lifespan: Long-term durability
Safety and Protection Systems
- EN 13001 compliance: Crane safety
- EN 1090 execution: Structural standards
- 2.5:1 safety factor: Load integrity
- Anti-corrosion system: Environmental protection
- NDT weld testing: Joint reliability
Installation and System Integration
- Modular assembly: Simplified setup
- Universal mounting: Major crane brands
- Quick replacement: Minimal downtime
- Flexible configs: Custom requirements
- Easy integration: Standard cranes
Control System Compatibility
- Precision alignment: Crane accuracy
- Standard interfaces: Overhead systems
- Stable support: Motion control
- Load-optimized: Stress distribution
Technical Performance Data
- Capacity: 1-500 tons
- Material: S355/S460 steel
- Temperature: -40°C to +60°C
- Safety Factor: 2.5:1 min
- Testing: 125% load
- Standards: EN 13001, EN 1090, ISO 9001, CE
Quality Manufacturing Standards
- Material traceability: Mill certificates
- CMM inspection: Dimensional verification
- 125% load testing: Performance proof
- Third-party audits: Factory quality
- Global warranty: Assurance coverage
Application Suitability
- Manufacturing: Assembly lines, machinery handling
- Warehousing: Material systems, storage cranes
- Construction: Steel assembly, site cranes
- Heavy Industry: Steel mills, foundry ops
Technical Support and Configuration
- Engineering services: Installation guidance
- Customization: Size/load options
- Documentation: Certificates/guides
- Support: Ongoing assistance
Maintenance Requirements
- Inspections: Coating, joints, alignment
- Corrosion checks: Surface integrity
- Load verification: Periodic testing
- Minimal protocols: Low downtime
Call to Action
Upgrade with Crane End Carriage Set. Contact us for custom European-standard solutions and installation.
