European style single beam gantry crane

Item Unit Parameter
Rated Load T 1 ~ 20
Work Level — M5
Equipment Span (S) m 5 ~ 40
Lifting Height m 6 ~ 30
Product Certification — ISO, CE
Design Standard — GB3811
Categories: ,

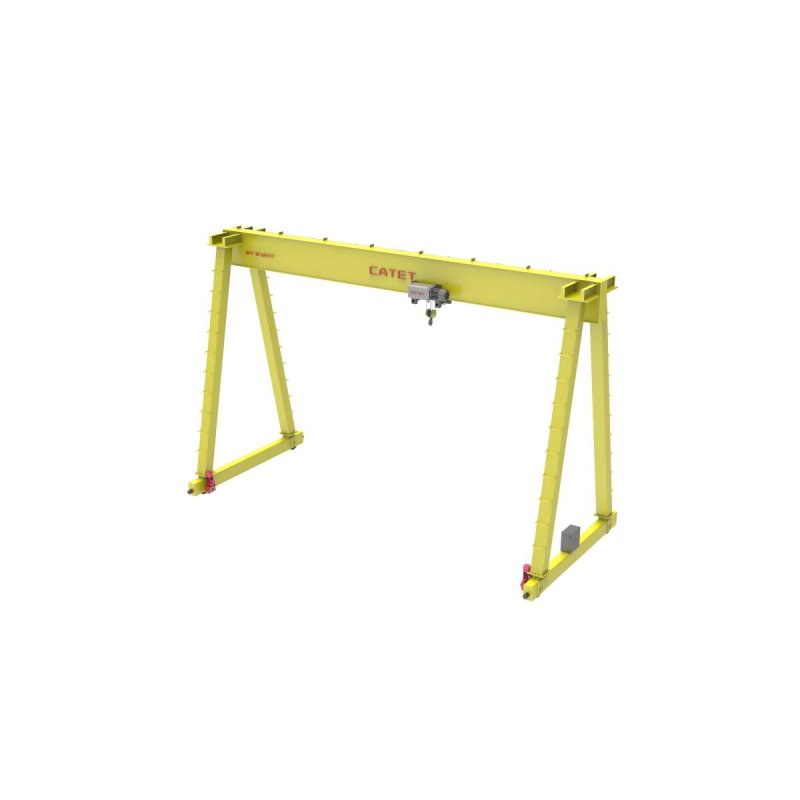

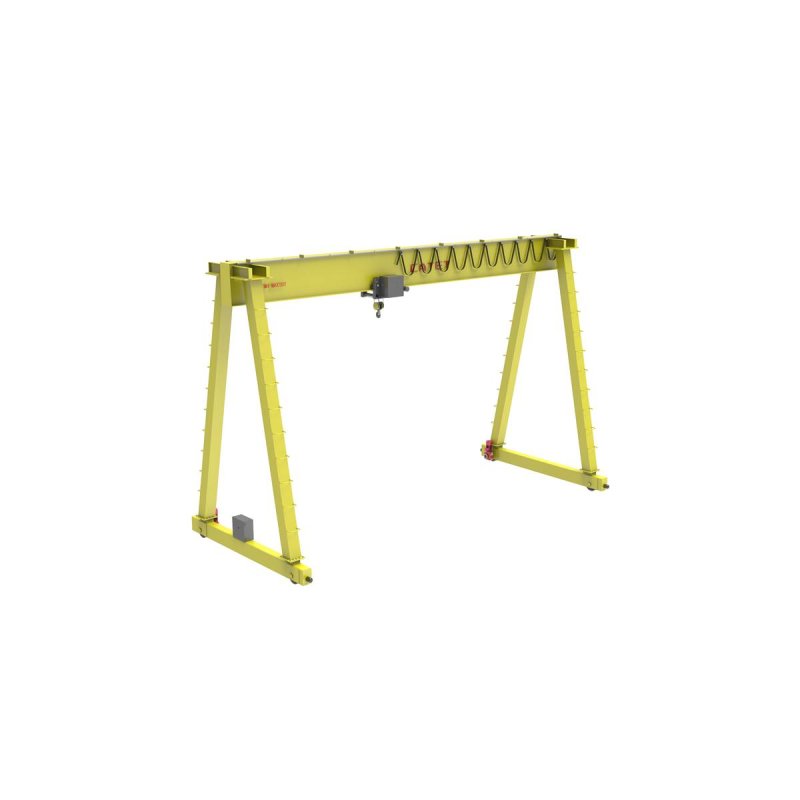

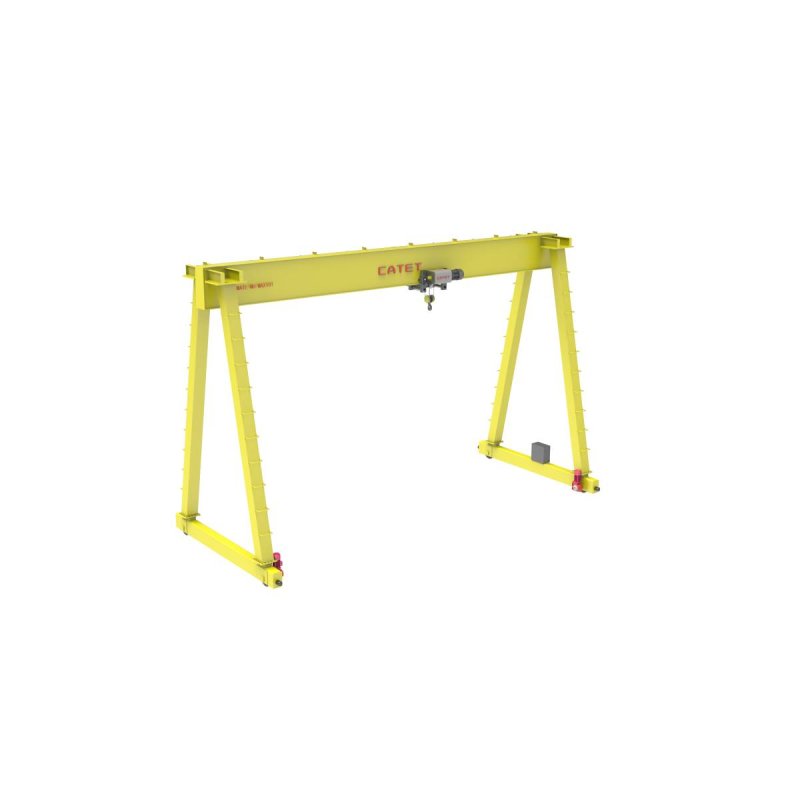

  European Style Single Beam Gantry Crane

The European single beam gantry crane is designed and manufactured in strict accordance with European standards. It features a compact structure, low wheel pressure, stable operation, and low maintenance requirements, making it a cost-effective lifting solution for modern workshops and warehouses.

Applications

This type of low headroom gantry crane is widely used in:

  • Parts manufacturing workshops

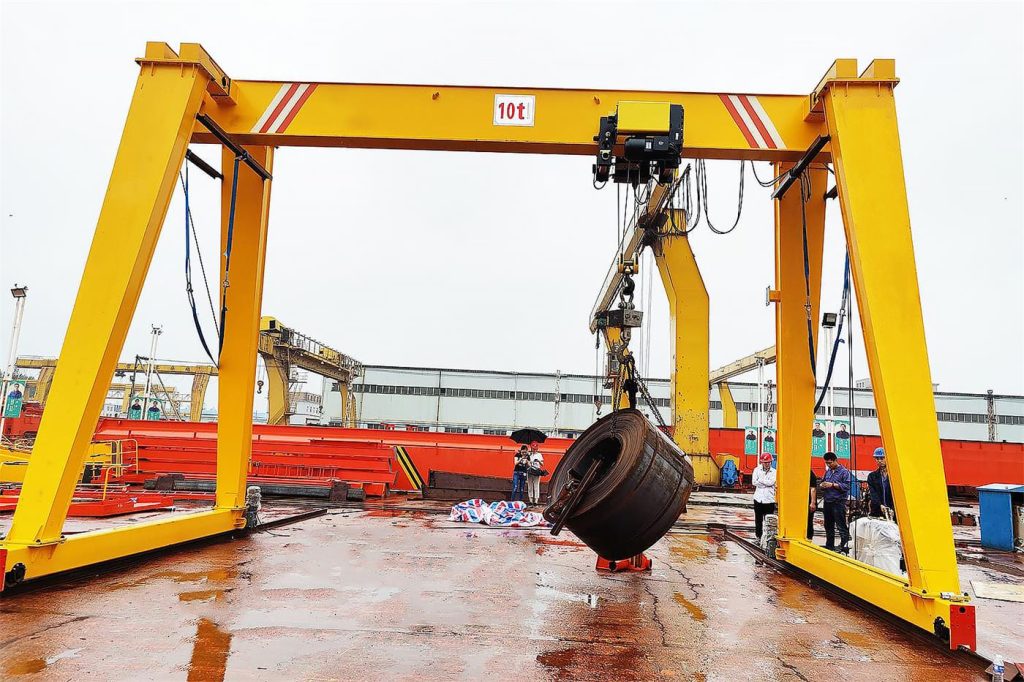

  • Automobile production lines

  • Mechanical processing plants

  • Warehouses and logistics centers

  • Heavy material transfer and assembly areas

It is especially suitable for facilities with low clearance but large lifting height requirements.

Advantages of European Gantry Crane

  • Modular design for easy assembly and flexible use

  • Lightweight structure, small wheel pressure, reduces building load

  • Variable frequency speed regulation, stable performance with low noise

  • Low maintenance cost, durable components ensure long service life

  • Optimized beam connection with bolts and nuts for easy installation

  • Low-headroom design, hook can reach higher lifting height

Main Beam

  • Box beam structure with submerged arc automatic welding

  • 100% non-destructive testing in line with EU safety standards

  • Made of high-quality carbon steel: Q235B, Q355B, or Q355E

Drive Mechanism

  • Three-in-one drive system (motor + reducer + brake), compact and efficient

  • Motor: three-phase AC variable frequency motor

  • Reducer: hardened gear reducer for durability

  • Brake: electromagnetic brake with asbestos-free pads

Wheel System

  • Material: 40Cr, 42CrMo alloy steel, QT500, or 65Mn, tempered for high strength

  • Features: high hardness, strong load capacity, wear resistance

  • Bearings: self-aligning bearing for smooth operation

Electrical System

  • Inverter control for smooth acceleration and deceleration

  • Adjustable operating speeds with low inertia

  • Protection grade: IP54

Safety & Protective Devices

  • Protective cover and guardrail

  • Circuit self-check protection device

  • Rainproof device for outdoor use

  • Anti-collision system, sound & light alarm

  • Lifting weight and height limit protection

Optional Components

  • Motor & Reducer: SEW, ABM, Nord, Siemens

  • Electrical Components: Schneider, Siemens, ABB, Honeywell

  • Inverter: Schneider, Siemens, ABB, Danfoss, Yaskawa

  • Bearings: SKF, NSK

  • Remote Control: Taiwan Yuding, Apollo, HBC
