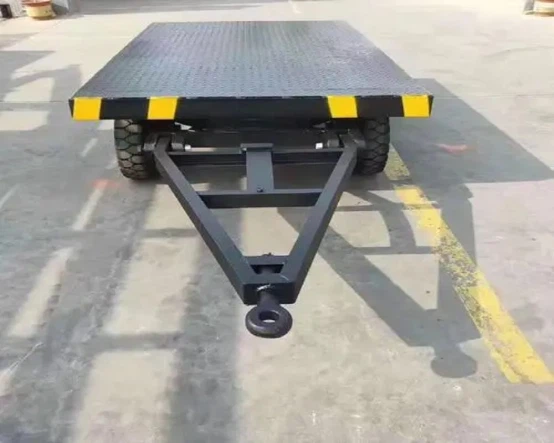

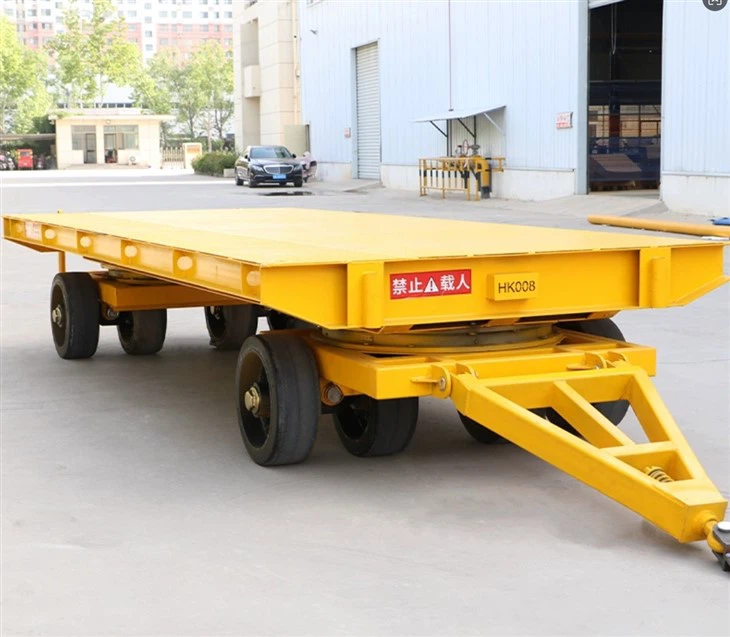

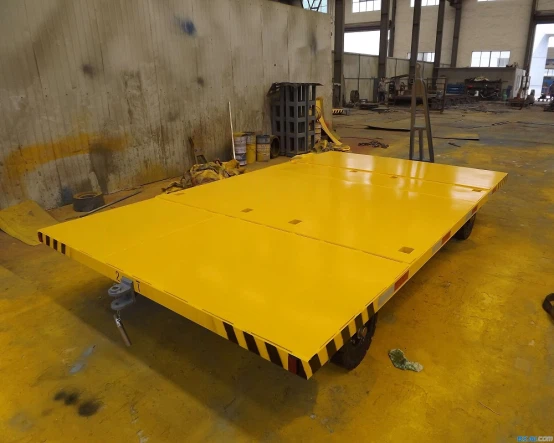

Towable Flatbed Transfer Cart 1-100T – Cost-Effective Towed Transport Vehicle
The Towable Flatbed Transfer Cart 1-100T provides reliable horizontal material transport as a towed trailer solution for industrial facilities requiring low-cost, high-capacity hauling without powered drive systems. This transport vehicle combines reinforced chassis design with flexible towing compatibility to deliver efficient transfer operations across 1-100 ton loads in factories, warehouses, and shipyards using existing tractors or forklifts.
Towable Flatbed Transfer Cart 1-100T
Technical Specifications and Performance Features
The transfer system offers 1-100 ton load capacity with customizable platform dimensions for versatile material handling. This towed transport vehicle features durable wheel options and towing methods, ensuring stable performance over medium to long distances on flat surfaces at speeds up to 10 km/h.
The design supports cost-effective logistics by eliminating the need for battery or motor power, while maintaining high load stability through reinforced construction and optional steering configurations.
Mechanical Design Features
The transport vehicle utilizes robust components engineered for towed operation:
- Reinforced chassis for 1-100 ton capacity
- Customizable platform size (standard 2000×1500 to 6000×2500 mm)
- Manual hook, automatic pin-type, or turntable tow bar
- Single axle, double axle, or all-wheel steering options
- Polyurethane, solid rubber, or pneumatic wheels
- Box beam structure with steel plate and channel steel welding
- High-elastic tires enhancing load capacity and service life
- Double suspension structure with automatic swing adjustment The mechanical components ensure balanced tire force and vehicle leveling on uneven ground for safe heavy-duty transport.
Operational Features
The towed transfer system provides:
- Flexible towing compatibility with tractors, forklifts, or tuggers
- Up to 10 km/h travel speed dependent on towing vehicle
- Optional surface treatments including rollers, V-blocks, or anti-slip plates
- Adjustable traction head for different tonnage vehicles
- Reliable performance in repetitive logistics without self-propulsion
Safety and Protection Systems
Standard safety features include:
- Manual, air, or electromagnetic brake options
- Alloy steel pins with special processing for extended life
- Suspension system ensuring stability on slopes
- Safe parking capability during loading or on inclines
Installation and System Integration
The transport vehicle offers simple deployment options:
- No power source required
- Direct connection to existing towing equipment
- Quick setup for immediate use
- Compatible with various floor surfaces
Control System Compatibility
The towed system operates via:
- Towing vehicle controls
- Manual brake engagement
- Optional electromagnetic brake integration
Technical Performance Data
Standard Specifications:
- Model: Towable Flatbed Transfer Cart
- Load capacity: 1-100 tons (customizable)
- Platform size: Customizable (standard 2000×1500 to 6000×2500 mm)
- Towing method: Manual hook / Automatic pin-type / Turntable tow bar
- Steering type: Single axle / Double axle / All-wheel steering
- Wheel type: Polyurethane / Solid rubber / Pneumatic
- Braking: Manual / Air / Electromagnetic (optional)
- Travel speed: Up to 10 km/h (towing dependent)
Transport Performance:
- Operation: Towed trailer mode
- Terrain adaptability: Flat ground with wheel selection
- Surface options: Rollers, V-blocks, anti-slip plates
Quality Manufacturing Standards
The cart follows established manufacturing protocols:
- Precision welding and assembly processes
- High-strength material selection
- Comprehensive component testing
- Alloy steel processing for connection durability
- Complete technical documentation provided
Application Suitability
The transport vehicle serves various industrial applications:
- Factories requiring repetitive heavy material transfer
- Warehouses needing cost-effective large-volume logistics
- Shipyards handling components without powered carts
- Manufacturing plants with medium to long-distance hauling
Technical Support and Configuration
For proper system operation:
- Simple connection guidance available
- Technical consultation for customization
- Comprehensive user documentation provided
- Ongoing support for towing integration
Maintenance Requirements
The transfer system requires:
- Regular wheel and tire inspection
- Periodic brake system checks
- Connection pin lubrication and verification
- Structural weld examinations
- Suspension component maintenance schedules
Contact technical support for specific Towable Flatbed Transfer Cart configurations, towing compatibility guidance, and integration support for your cost-effective transport vehicle applications.
