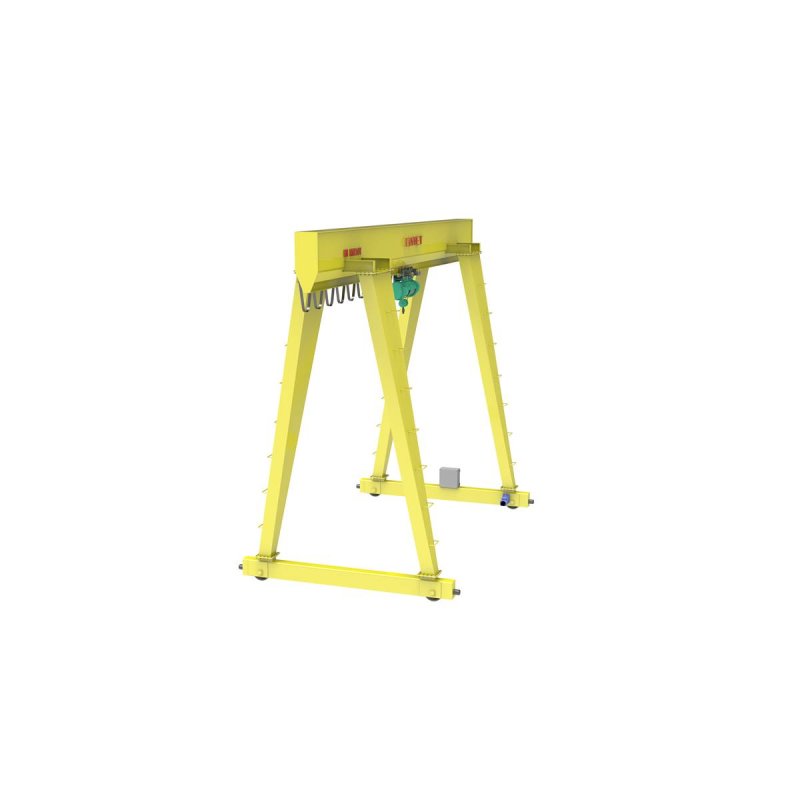

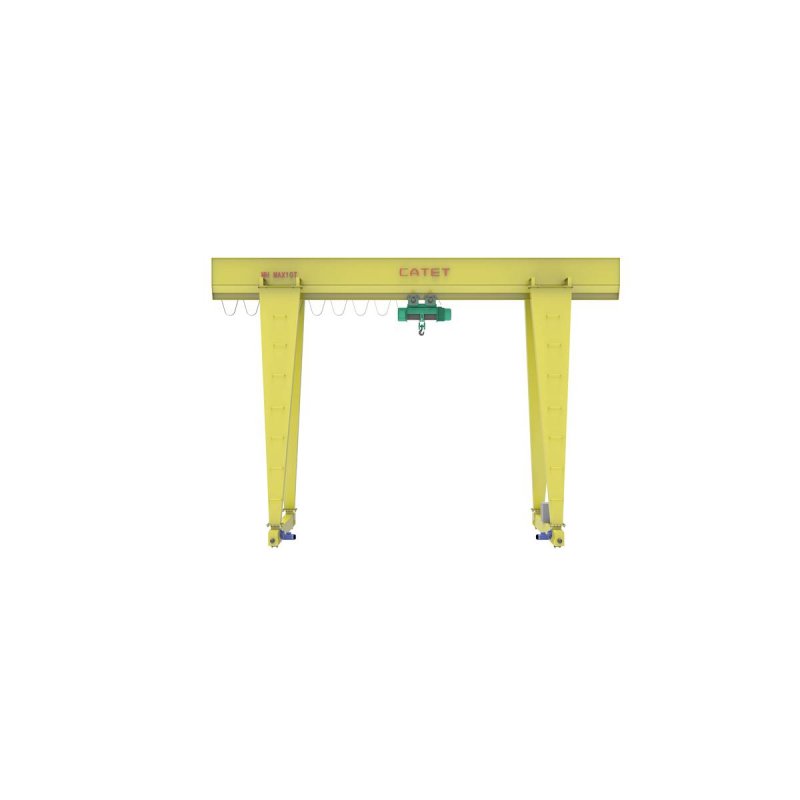

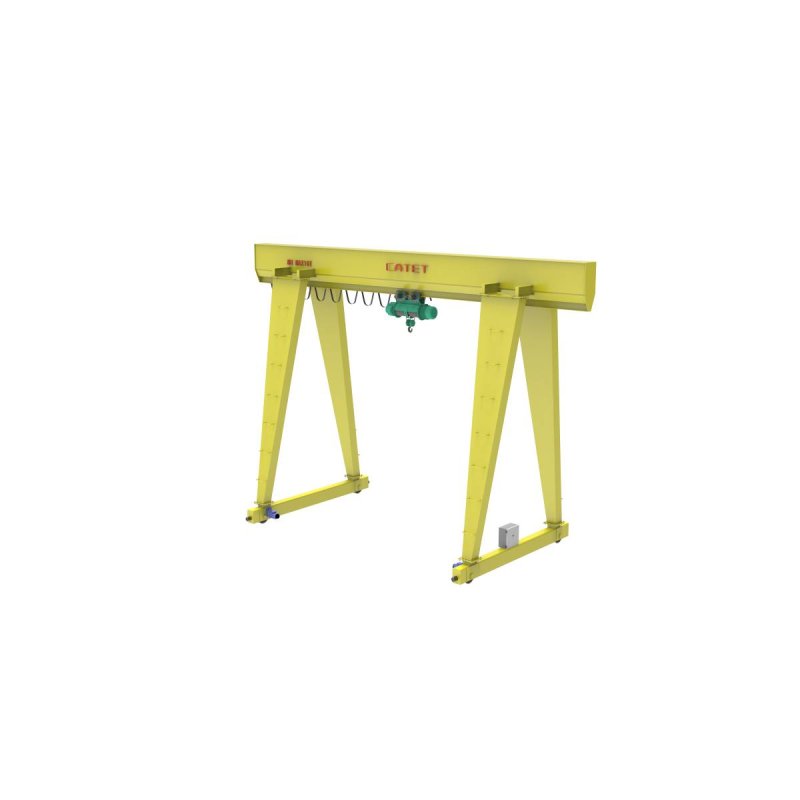

Overview of the MH Single-Beam Gantry Crane

The MH Single-Beam Gantry Crane is a budget-friendly lifting solution designed for efficient material handling in open-air yards, warehouses, ports, shipyards, granite processing, cement pipe industries, and container terminals. Equipped with CD or MD electric wire rope hoists, it ensures safe, smooth, and reliable lifting performance.

Built to comply with European FEM Standards and CE Marking requirements, this crane offers customizable configurations—single cantilever, double cantilever, or no cantilever—to suit diverse site conditions, making it a versatile choice for industrial environments.

Explore our range of lifting equipment for tailored solutions.

Applications of the MH Single-Beam Crane

This crane excels in various industrial settings:

• Open-air storage yards: Simplifies loading and unloading tasks.

• Warehouses and workshops: Enhances material movement efficiency.

• Shipyards and container terminals: Manages heavy cargo with precision.

• Granite and stone processing: Supports accurate material transfers.

• Cement pipe industry: Facilitates heavy lifting operations.

Structure and Design

The MH Single-Beam Crane features a practical design:

• Gantry frame and outriggers: Adaptable to site-specific requirements.

• Main beam: Available in box or truss-type for stability and flexibility.

• Lifting mechanism: CD or MD wire rope hoists for dependable performance.

• Traveling mechanism: Enables smooth movement across work areas.

• Electrical control system: Supports safe and efficient operation.

Types of MH Single-Beam Crane

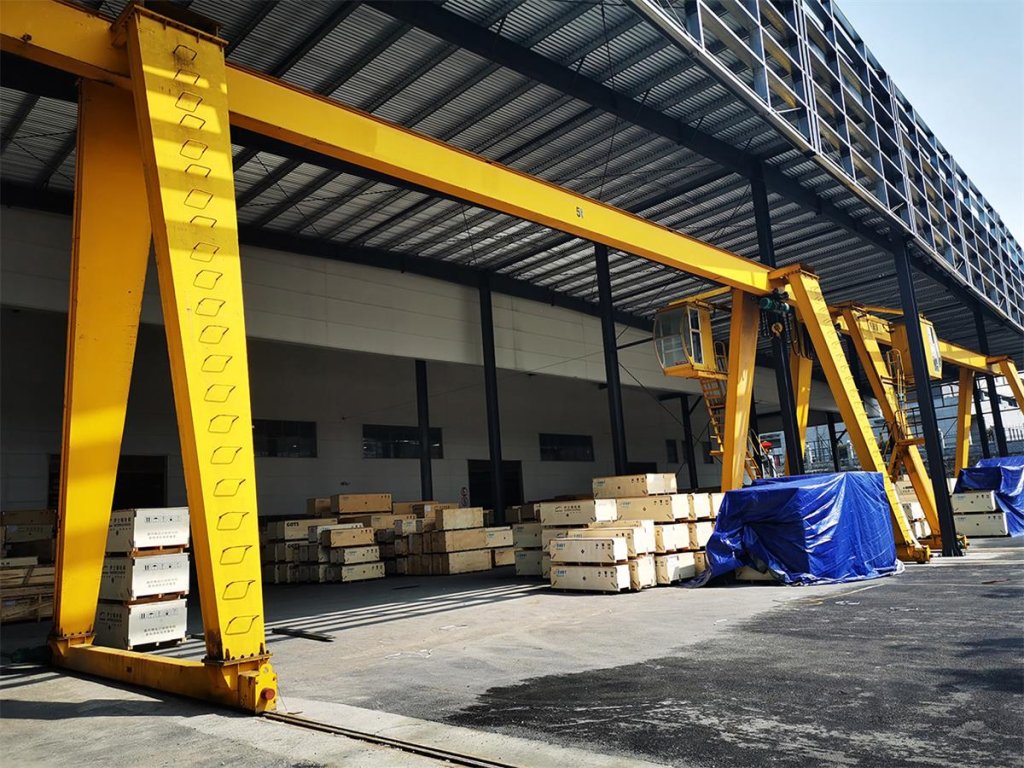

• Box-Type Crane

  • Constructed from high-quality steel plates (C-section or I-beam).

  • Uses CD/MD hoists along the main beam’s lower flange.

  • Offers strong load capacity and stable performance for heavy tasks.

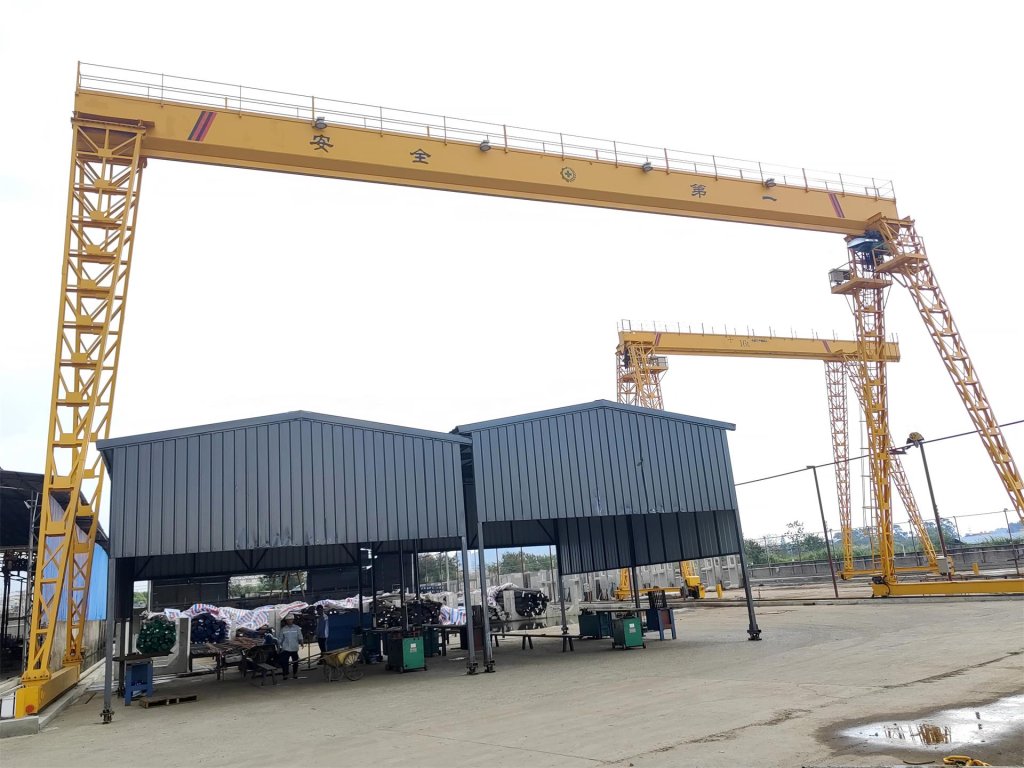

• Truss-Type Crane

  • Built with steel bars for a lightweight, wind-resistant structure.

  • Ideal for outdoor and coastal environments.

  • Maintains lifting efficiency with reduced material weight.

Key Benefits of the MH Single-Beam Crane

This crane delivers practical advantages:

• Simplified design: Easy to install and maintain, reducing costs.

• Efficient performance: Ensures smooth material handling.

• Low upkeep costs: Durable components minimize downtime.

• Universal parts: Standardized components for quick replacements.

• Energy-saving operation: Frequency control reduces power usage.

• Flexible configurations: Adjustable lifting height and span for tailored setups.

Safety Features

The crane prioritizes safety with advanced protections:

• Overload protection: Alerts operators to excessive loads.

• Limit switches: Prevent hook over-travel for safe lifting.

• Polyurethane buffers: Absorb shocks for durability.

• Remote control option: Allows safe operation from a distance.

• Electrical safeguards: Includes low-voltage and current overload protection.

• Emergency stop: Enables immediate shutdown in emergencies.

• Smooth operation: Frequency converter ensures low-noise performance.

Why Choose the MH Single-Beam Crane?

The MH Single-Beam Gantry Crane is a reliable, cost-effective choice for diverse lifting needs. Its compliance with FEM and CE standards, customizable design, and low maintenance requirements make it ideal for warehouses, shipyards, and industrial processing. With robust safety features and energy-efficient operation, it boosts productivity and delivers lasting value.

For more details or to request a quote, contact our team today.
