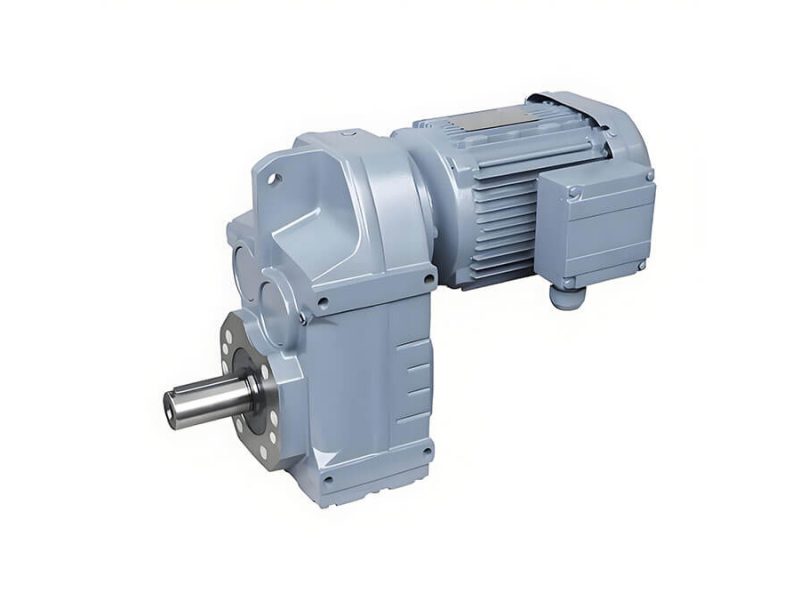

Motor Reducer 0.18-200kW – High-Efficiency Power Transmission
Introduction
Our Motor Reducer units convert high-speed, low-torque motor output into low-speed, high-torque motion. Precision gearing and robust construction provide reliable performance for manufacturing, automation, and heavy-duty applications.
Technical Specifications and Performance Features
- Power Range: 0.18kW – 200kW
- Gear Ratios: 3:1 to 10,000:1
- Output Torque: 50 Nm – 50,000 Nm
- Efficiency: Up to 98%
- Service Factor: 1.5-2.0
- Operating Temperature: -20°C to +90°C
- Protection Rating: IP54/IP55/IP65
Mechanical Design Features
- Precision gear cutting: Computer-controlled manufacturing
- Heat treatment: Hardened gears for extended life
- Balanced design: Reduced vibration and stress
- Quality materials: Premium alloy steels and cast iron
Operational Features
- High efficiency: Up to 98% power transmission
- Low noise: <65dB operation
- Precise control: Accurate speed and torque
- Overload protection: Prevents damage during peak loads
- Mounting flexibility: Multiple positions available
Safety and Protection Systems
- Self-locking: Worm gear prevents back-driving
- Seal technology: Prevents contamination and lubricant loss
- Temperature management: Efficient cooling and heat dissipation
Installation and System Integration
- Compact design: Space-saving integrated unit
- Easy maintenance: Accessible design reduces service time
Control System Compatibility
- Precise positioning: Low backlash for accuracy
- 90° angle transmission: Worm type
Technical Performance Data
| Parameter | Value |
|---|---|
| Power Range | 0.18kW – 200kW |
| Gear Ratios | 3:1 to 10,000:1 |
| Output Torque | 50 Nm – 50,000 Nm |
| Efficiency | Up to 98% |
| Service Factor | 1.5-2.0 |
| Operating Temperature | -20°C to +90°C |
| Protection Rating | IP54/IP55/IP65 |
Quality Manufacturing Standards
- ISO 9001: Quality management certification
- AGMA: American Gear Manufacturers Association compliance
- IEC 60034: Motor standards compliance
- CE Marking: European conformity certification
- Load Testing: 150% rated torque
- Endurance Testing: 20,000+ hour life
- Noise Testing: Sound level verification
- Efficiency Testing: Power transmission measurements

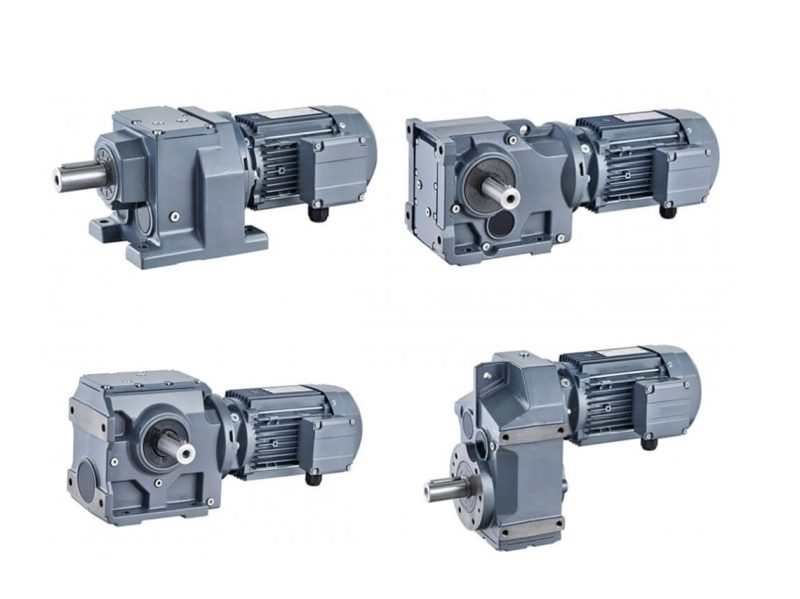

Reducer Types
| Type | Efficiency | Ratio Range | Applications |
|---|---|---|---|
| Helical | 96-98% | 3.36:1 to 450:1 | Conveyors, mixers, packaging |
| Worm | – | Up to 10,000:1 | Lifting, robotics, positioning |
| Planetary | – | 3:1 to 512:1 | Servo systems, CNC, automation |
Application Suitability
- Manufacturing & Automation: Assembly lines, robotic arms, CNC tools
- Material Handling: Belt/screw conveyors, bucket elevators
- Mining & Heavy Industry: Crushers, mills, extraction equipment
- Food & Packaging: Bottling lines, processing machinery
Technical Support and Configuration
- Expert engineering support: Available for selection and integration
- Global service: Maintenance and assistance
Maintenance Requirements
- Easy access: User-friendly design
- Extended service life: 20,000+ hours
- Standard parts: Common replacements
Call to Action
Contact us for Motor Reducer expert engineering support and global service.
