Rubber-Tyred Gantry Crane 10-100T – Mobile Trackless Lifting Solution
The Rubber-Tyred Gantry Crane 10-100T delivers reliable mobile lifting performance with tire-mounted design for industrial applications requiring flexible capacity and operational mobility. This trackless gantry crane combines proven engineering with customizable span and height configurations to provide comprehensive lifting solutions across the 10-100 ton capacity range without the need for permanent rail tracks.

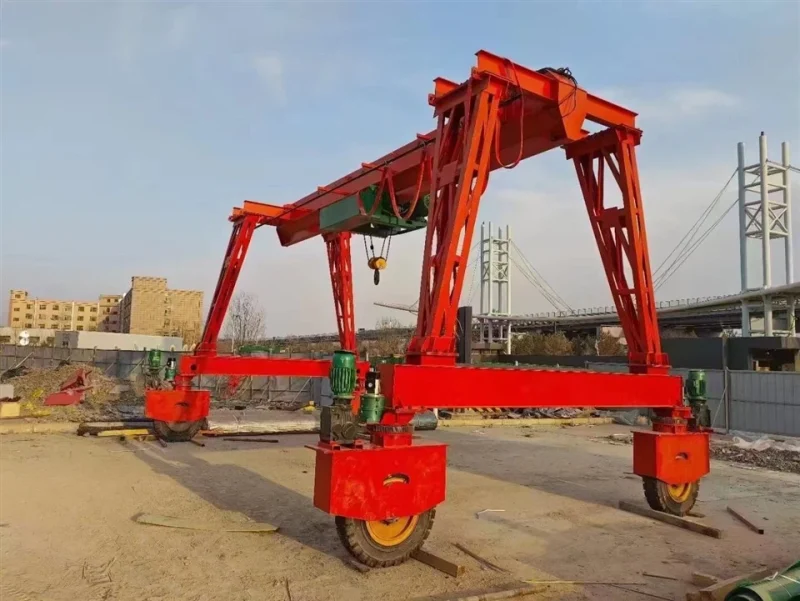

Rubber-Tyred Gantry Crane 10-100T
Technical Specifications and Performance Features
The gantry system provides 10-100 ton lifting capacity with adjustable traveling speed for enhanced operational flexibility. This rubber-tyred configuration features robust tire-mounted mobility, providing optimal lifting efficiency while offering operators the ability to relocate across smooth surfaces in high-speed or precision modes.
The mobile design enables operators to optimize productivity through rapid site positioning while maintaining precise control for heavy load handling operations. The customizable span and height ensure efficient performance across variable industrial environments.
Mechanical Design Features
The gantry crane utilizes quality components engineered for trackless operation:
- High-strength structural steel for durability
- Customizable span of 10-40 meters
- Lifting height range of 6-30 meters
- Solid rubber or pneumatic tires depending on terrain
- Adjustable traveling speed of 0.5-20 m/min
- Precision components for smooth mobility
- Robust frame providing excellent stability The mechanical components are designed to provide reliable lifting performance with mobile functionality across variable load ranges.
Operational Features
The trackless gantry system provides:
- High mobility mode: Rapid relocation for improved productivity
- Precision control mode: Accurate lifting for demanding operations
- Reliable speed adjustment capability
- Consistent performance across capacity range The crane maintains reliable mechanical performance across all settings, ensuring smooth lifting operations with enhanced site flexibility.
Safety and Protection Systems
Standard safety features include:
- Overload protection for load security
- Emergency stop mechanisms
- Hoist limit switches
- Anti-collision systems
- Work duty classification FEM 2M–4M / ISO M5–M7
Installation and System Integration
The gantry system offers flexible deployment options:
- No track installation required
- Operation on smooth surfaces
- Compatible with existing site layouts
- Quick setup for temporary applications
Control System Compatibility
The mobile system accepts:
- Pendant control systems
- Remote control interfaces
- Cabin control options
- Integration with safety circuits
Technical Performance Data
Standard Specifications:
- Model: Rubber-Tyred Gantry Crane
- Capacity range: 10-100 tons (customizable)
- Span: 10-40 meters (customizable)
- Lifting height: 6-30 meters (customizable)
- Traveling speed: 0.5-20 m/min (adjustable)
- Tire type: Solid rubber or pneumatic
- Power supply: 380V 50Hz (customizable)
- Working temperature: -20°C to +50°C
- Work duty: FEM 2M–4M / ISO M5–M7
- Control modes: Pendant, remote, or cabin
Mobile Performance:
- Speed modes: Adjustable traveling
- Operation: Trackless mobility control
- Terrain adaptability: Depending on tire selection
Quality Manufacturing Standards
The crane follows established manufacturing protocols:
- Precision fabrication and assembly processes
- Comprehensive quality control testing
- Structural and component inspection protocols
- Customizable configurations available
- Complete technical documentation provided
Application Suitability
The rubber-tyred gantry crane serves various industrial applications:
- Construction sites requiring mobile heavy lifting
- Ports and shipyards needing flexible cargo handling
- Manufacturing facilities with variable load operations
- Warehouses demanding trackless material movement
Technical Support and Configuration
For proper system operation:
- Professional setup recommended for mobile applications
- Technical consultation available for customization
- Comprehensive user documentation provided
- Ongoing technical support available
Maintenance Requirements
The gantry system requires:
- Regular structural maintenance per specifications
- Tire inspection and replacement schedules
- Periodic safety system checks and adjustment
- Routine electrical connection verification
- Standard lubrication maintenance schedules
Contact technical support for specific Rubber-Tyred Gantry Crane configurations, deployment guidance, and system integration support for your mobile lifting applications.
