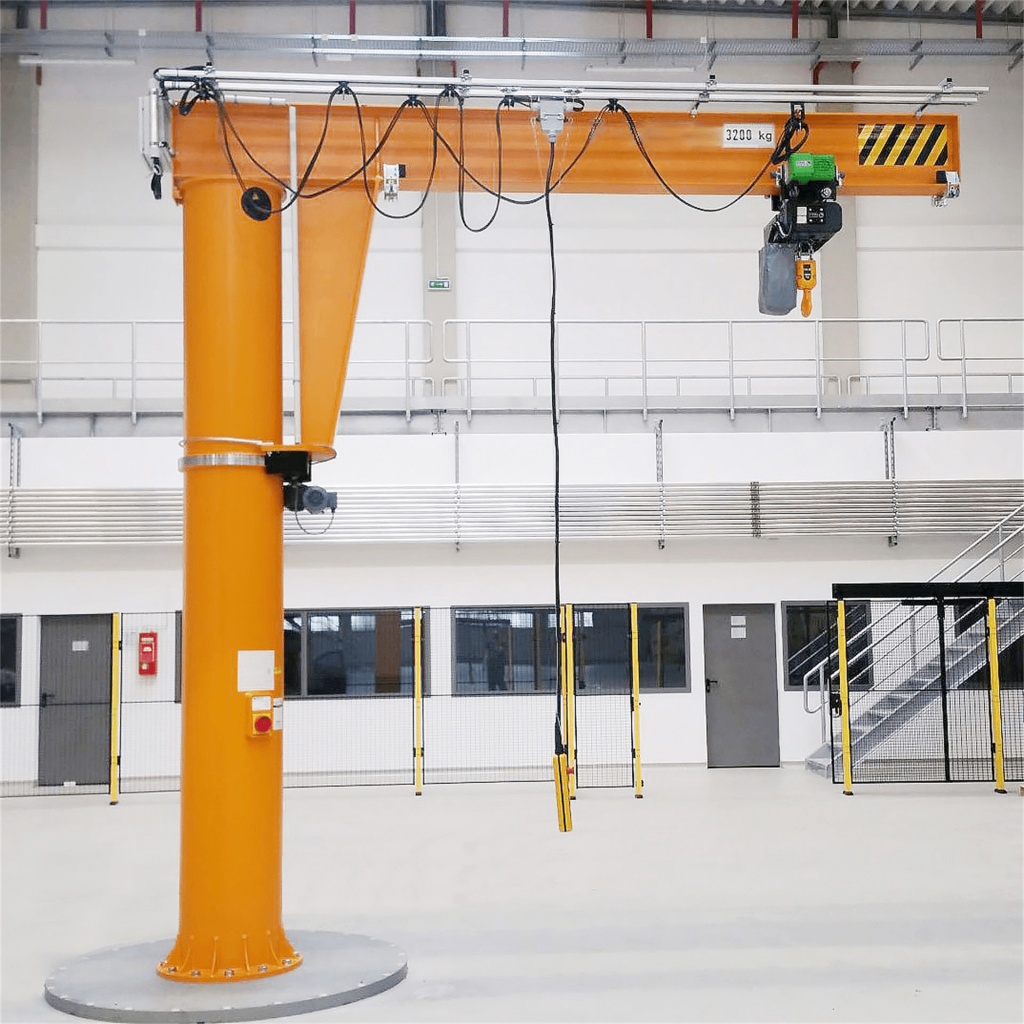

Free Standing/Pillar Mounted Jib Crane

Parameter Unit Value
Rated Load T 0.5 ~ 10
Work Level — M3 ~ M5
Rotation Angle ° 180 ~ 360
Lifting Height m 2 ~ 10
Product Certification — ISO, CE
Design Standard — GB3811
Category:

Free Standing Jib Crane: Compact Industrial Lifting

BZ Jib Crane: Efficient Lifting for Workshops & Docks

Discover the Free Standing Jib Crane

The BZ Type, a pillar-mounted cantilever crane, offers a versatile lifting solution for small- and medium-scale tasks. Fixed directly to the floor without building support, it ensures efficient material handling in workshops, warehouses, docks, and storage yards. Its modular design enables quick installation and reliable performance for short-distance operations.

For safe usage, consult Crane Safety Guidelines.

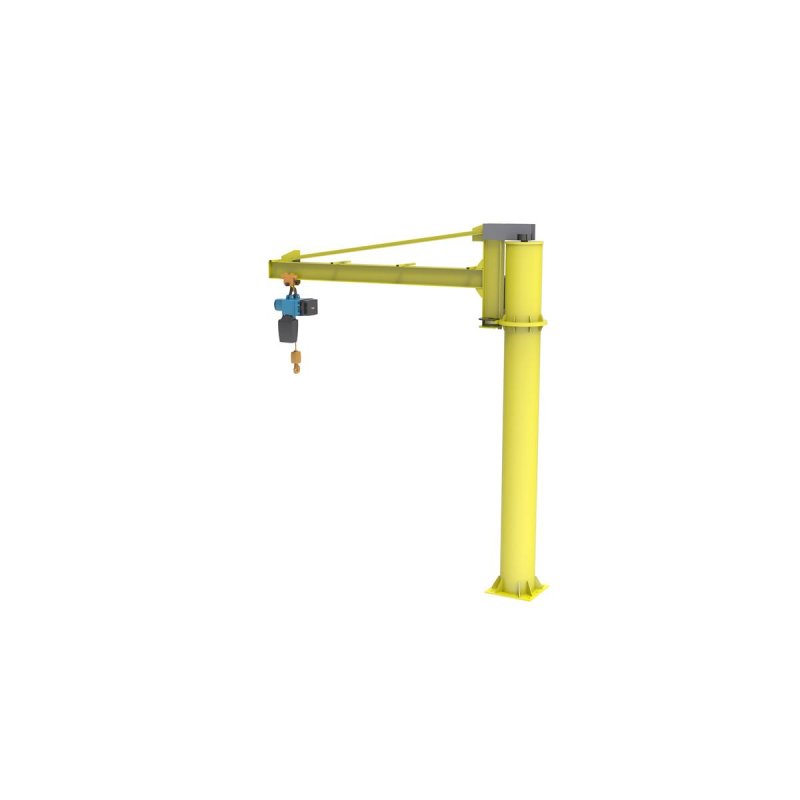

Structure of the Pillar-Mounted Crane

Key components ensure robust functionality:

  • Up-Pillar and Down-Pillar: Provide structural stability.
  • Main Beam: Supports heavy loads securely.
  • Electric Hoist: Delivers smooth, precise lifting.
  • Rotating Mechanism: Offers manual or motorized slewing.
  • Electrical System: Powers consistent operation.

This compact setup minimizes maintenance and optimizes workspace.

wall mounted jib crane

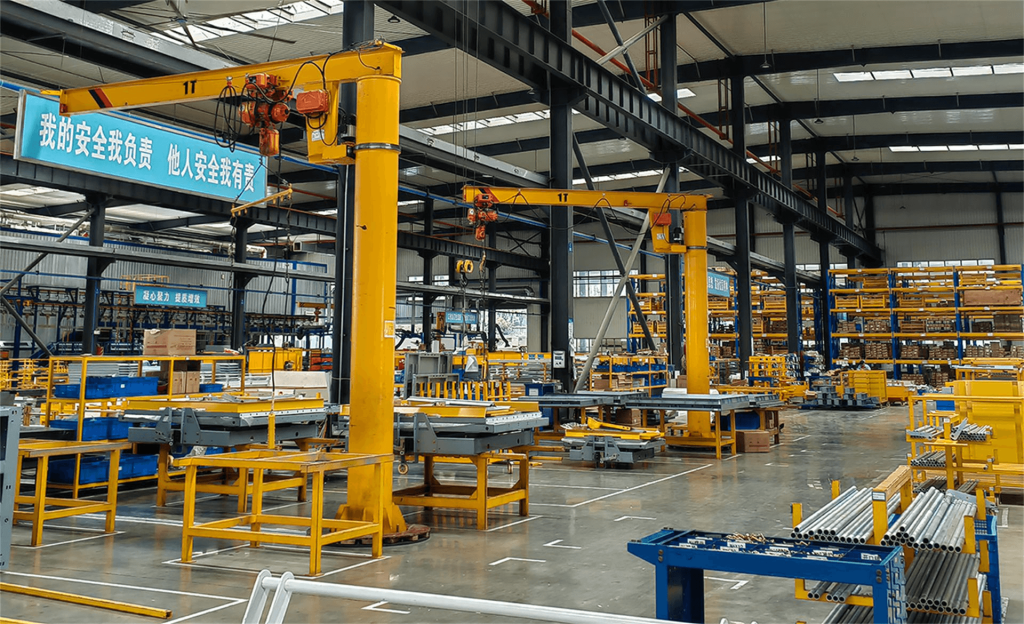

Applications of the BZ Jib Crane

This crane excels in:

  • Workshops: Streamlines short-distance material movement.
  • Warehouses: Enhances lifting and stacking efficiency.
  • Docks and Yards: Speeds up cargo handling tasks.

Ideal for repetitive saw-tooth lifting, it’s unsuitable for flammable, explosive, corrosive, or hazardous material environments, including molten metal.

Benefits of the Free Standing Crane

The system offers key advantages:

  • Space Efficiency: Compact design fits tight areas.
  • Operator Safety: Advanced braking systems ensure protection.
  • High Productivity: Smooth operation for fast task completion.
  • Energy Savings: Reduces operational costs.
  • Versatile Movement: Manual or motorized slewing options.

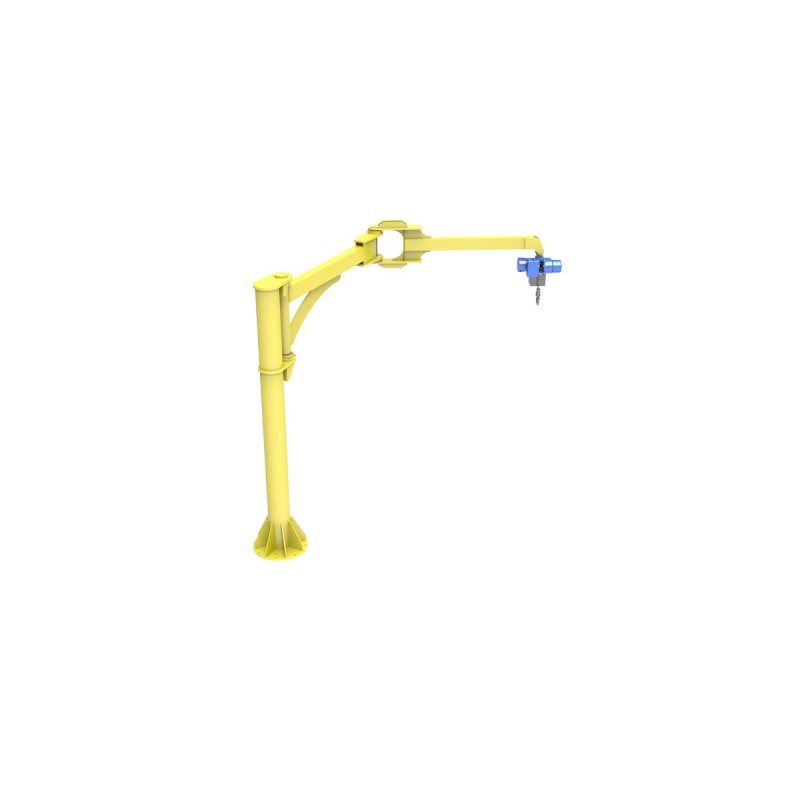

jib of the crane

Core Features of the Lifting System
  • Lightweight Design: High capacity with minimal space use.
  • Precision Control: Stepless frequency system for accurate positioning.
  • Durable Braking: Dustproof, up to 1 million cycles.
  • Technical Specs: 380V, 50Hz three-phase AC; altitude ≤2000m.
  • Customization: Under- or over-braced jib; manual/electric hoists; optional remote control.
Why Choose a Free Standing Jib Crane?

The BZ Type provides a safe, compact, and adaptable lifting solution for industrial settings. Its ground-mounted, modular design optimizes short-distance material handling in workshops and warehouses, boosting efficiency without structural changes.

Contact Us for Lifting Solutions

Ready to streamline your workflow with a free standing jib crane? Reach out today.
