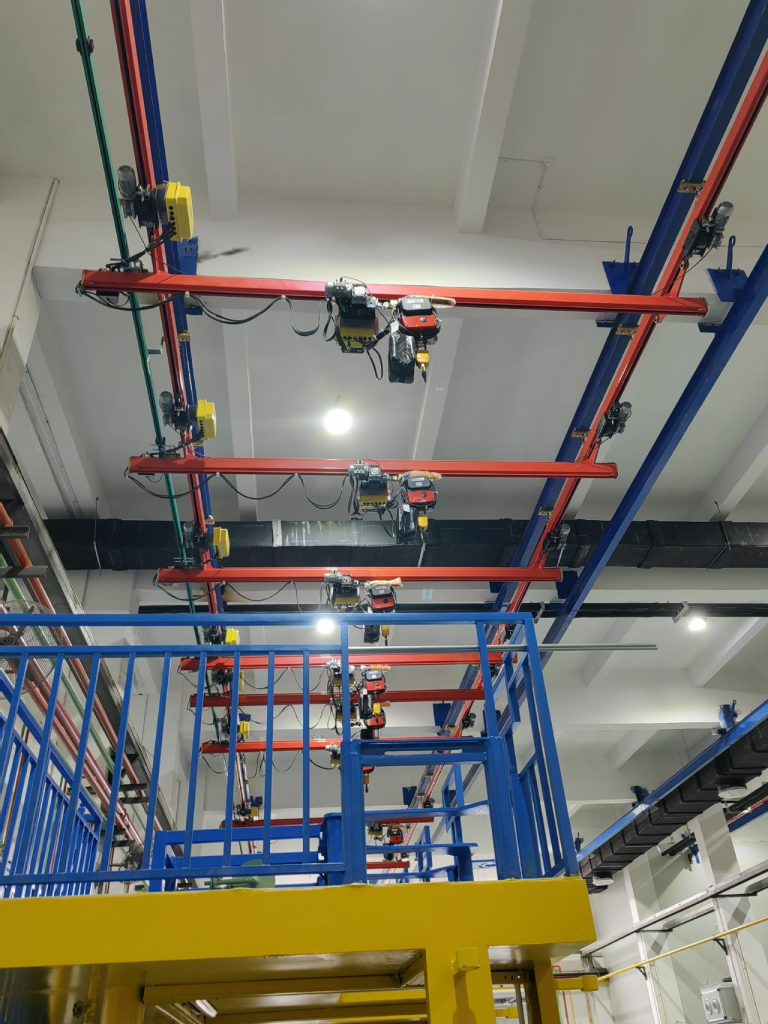

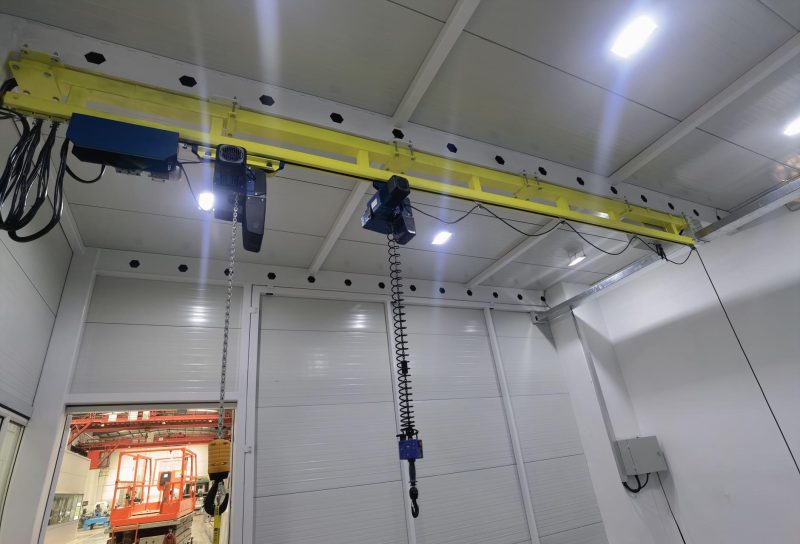

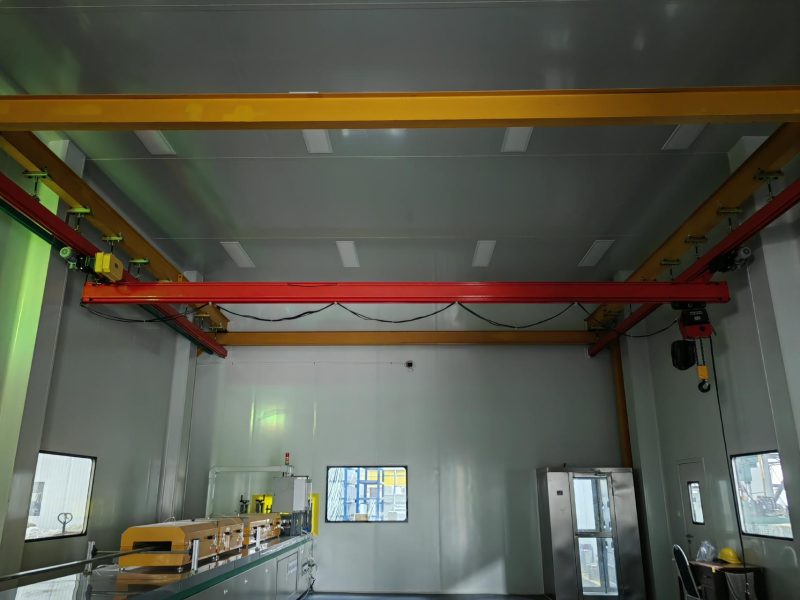

KBK Single-Girder Suspension Crane 125kg-2000kg – Modular Lightweight Overhead Solution
The KBK Single-Girder Suspension Crane is a highly flexible, ceiling-mounted light crane system that delivers precise, ergonomic, and energy-efficient material handling for loads from 125 kg to 2000 kg. Built with genuine KBK modular profile rails (steel or aluminum), this suspension crane requires no welding during installation and imposes minimal structural load, making it the ideal choice for workshops, assembly lines, logistics areas, and modern production cells.
Technical Specifications and Performance Features
This modular suspension system combines lightweight KBK profile rails with proven electric or pneumatic lifting units to provide smooth, quiet, and reliable overhead transport across spans up to 10 meters.
Mechanical Design Features
The KBK single-girder suspension crane utilizes precision-engineered modular components:
- Cold-rolled KBK II and KBK III profile rails (steel or aluminum alloy)
- Bolt-connected modular sections – no welding required

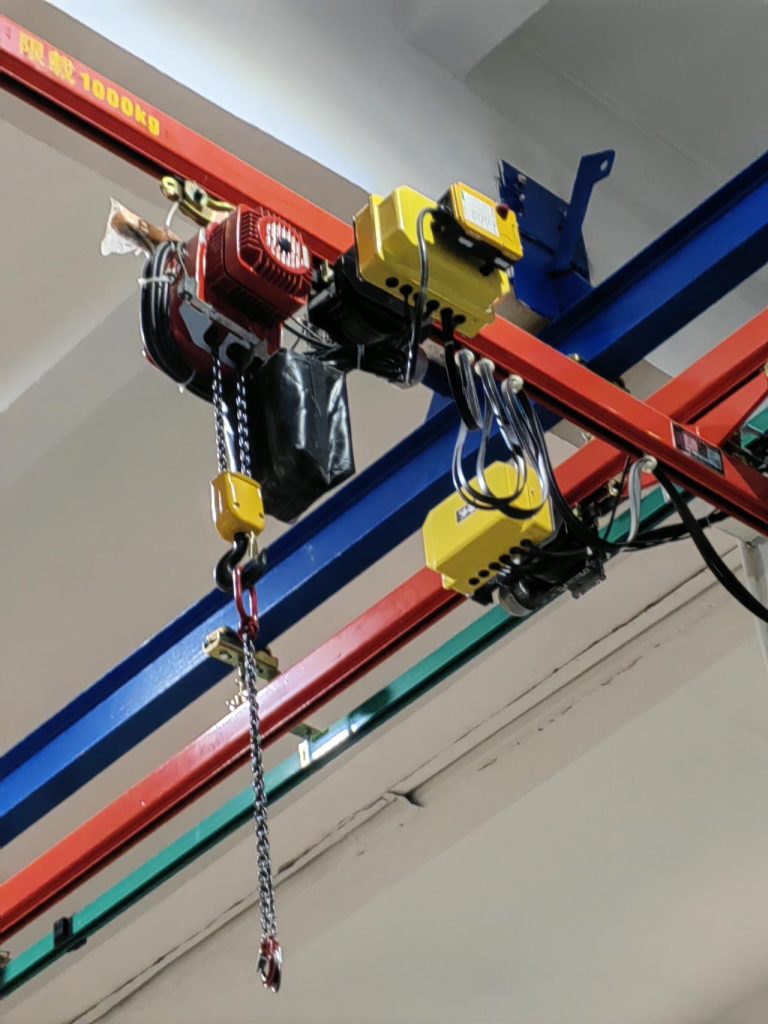

- Low-headroom articulated trolleys with self-lubricating wheels
- Lightweight enclosed track design for reduced friction
- High-strength suspension fittings and hanger brackets
- Integrated conductor line system for power supply
Operational Features
The system delivers outstanding performance in daily operation:
- Smooth manual or motorized long/cross travel motion
- Extremely low rolling resistance for effortless manual pushing (up to 1000 kg)
- Precise load positioning with minimal sway
- Quiet operation – ideal for noise-sensitive environments
- Variable frequency drive options for soft start/stop and speed control
Safety and Protection Systems
Standard and optional safety features include:
- Overload protection on electric chain hoists
- Emergency stop on pendant and radio controls
- Anti-drop and anti-tilt devices on trolleys
- Phase monitoring and power limit switches
- Optional load display and collision protection
Installation and System Integration
Fast, flexible installation options:
- Direct ceiling suspension or free-standing steel support structure
- Simple bolt-together assembly – typically completed in hours
- Easy integration into existing buildings without major reinforcement
- Adaptable to uneven ceilings and complex layouts
Control System Compatibility
Multiple control options available:
- Standard pendant control with emergency stop
- Wireless radio remote control
- Frequency inverter for variable speed travel
- Tandem operation capability for multiple hoists
Technical Performance Data
Standard Specifications:
- Model: KBK Single-Girder Suspension Crane
- Rated Load: 125 kg – 2000 kg
- Span Width: Up to 10 meters (depending on load and profile)
- Lifting Unit: Electric chain hoist or pneumatic air hoist
- Track Profile: KBK II / KBK III (steel or aluminum)
- Travel Motion: Manual push-pull or electric powered
- Duty Classification: M3–M4 (ISO/FEM)
- Voltage: 200–600 V, 50/60 Hz
- Design Standard: GB3811
- Certification: ISO 9001, CE marked
Quality Manufacturing Standards
Every KBK system meets rigorous quality protocols:
- Precision cold-rolled profile production
- 100% bolt connection inspection
- Full load testing of critical components
- Comprehensive documentation and traceability
- Standard 2-year warranty with extended options
Application Suitability
Perfect for light to medium-duty applications:
- Automotive assembly lines and workshops
- Electronics and lithium battery production (clean, quiet operation)
- Logistics and distribution centers
- General manufacturing and maintenance areas
- Small parts assembly and packaging stations
Technical Support and Configuration
Professional support throughout the project lifecycle:
- Free layout design and quotation service
- On-site measurement and installation guidance
- Complete technical documentation and training
- Nationwide after-sales service network
- Spare parts availability for all KBK components
Maintenance Requirements
Minimal maintenance for maximum uptime:
- Simple visual inspection of bolts and connections
- Periodic lubrication of hoist chain (electric models)
- Regular trolley wheel and rail cleanliness check
- Annual professional inspection recommended
Take Action Now
Contact our KBK technical team today for a customized single-girder suspension crane layout, detailed quotation, or on-site assessment. Upgrade your workspace with the original KBK modular system – engineered for flexibility, installed in hours, and built to last decades.
