Suspension Single Girder Overhead Crane 1-32T – Flexible Space-Saving Lifting Solution

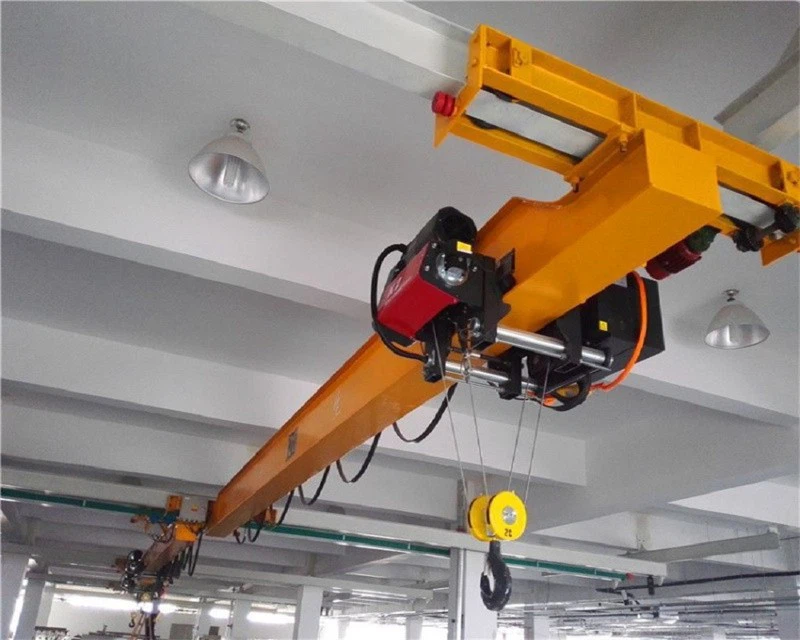

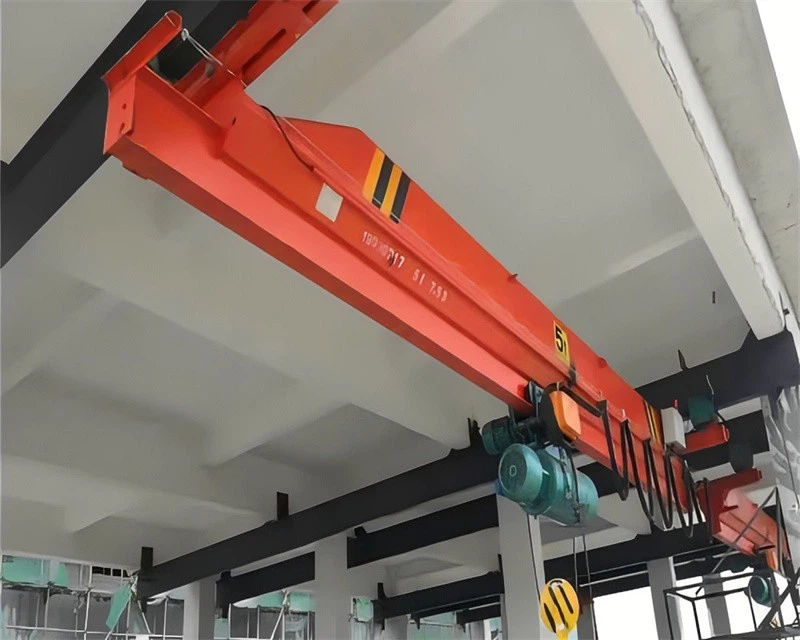

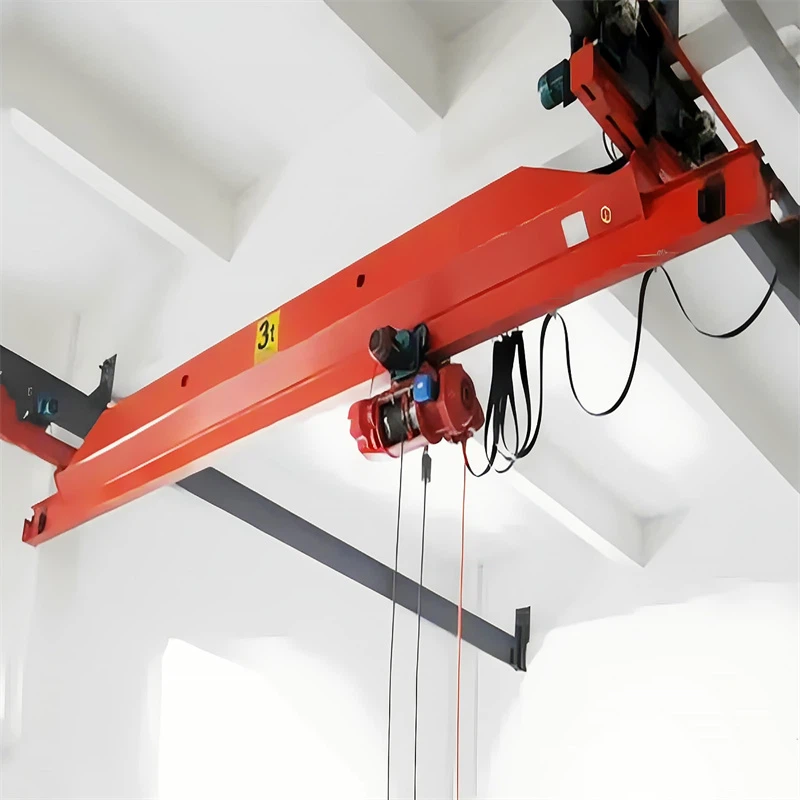

The Suspension Single Girder Overhead Crane 1-32T provides an efficient and flexible lifting solution by suspending the main beam directly from the building’s I-beam track. With freely adjustable track position and span, this crane maximizes workspace utilization, allowing materials to be lifted without interference from ground equipment. Widely used in production lines, warehouses, and assembly workshops, it is the most popular and highest-volume lifting equipment for light to medium-duty applications.
Technical Specifications and Performance Features
The suspension single girder overhead crane delivers reliable performance across a wide capacity range with a compact, space-saving design. The system fully utilizes the area beneath the bridge, offering smooth and unobstructed material handling in facilities with limited floor space.
Mechanical Design Features
The crane incorporates high-quality components engineered for durability and low maintenance:
- Box-type main beam with submerged arc automatic welding
- Non-destructive testing ensures weld quality exceeds national standards
- High-quality carbon steel (Q235B, Q355B or Q355E)
- Modular design for easy customization and installation
- Angle round box wheel housing with buffer device
Operational Features
The crane provides smooth and efficient operation:
- Three-in-one drive system (motor, reducer, brake) for enhanced reliability
- Three-phase AC variable frequency motor for precise speed control
- Hardened gear reducer for long service life
- Electromagnetic brake with asbestos-free pads for instant stopping
- Self-aligning bearings for smooth travel
- Flexible span and track positioning to suit any layout
Safety and Protection Systems
Standard safety features include:
- Electromagnetic brake for immediate load holding
- Buffer devices on wheel groups
- Overload protection capability
- Emergency stop integration
- High-strength materials meeting strict safety standards
Installation and System Integration
The suspension design offers maximum installation flexibility:
- Direct mounting on existing building I-beam tracks
- Freely adjustable track location and span (1-31.5 m)
- No need for ground columns or runways
- Quick integration with existing factory structures
- Minimal civil work required
Control System Compatibility
The crane supports multiple control options:
- Standard pendant control
- Optional remote control
- Integration with existing factory control systems
- Emergency stop and safety circuit connections
Technical Performance Data
Standard Specifications
- Model: Suspension Single Girder Overhead Crane
- Rated Load: 1–32 Ton
- Span: 1–31.5 Meter
- Lifting Height: 1–30 Meter
- Work Level: A3
- Voltage: 200–600 V
- Product Certification: ISO, CE
- Design Standard: GB3811
Drive System Performance
- Motor: Three-phase AC variable frequency
- Reducer: Hardened gear type
- Brake: Electromagnetic with asbestos-free pads
- Wheel Material: 40Cr or 42CrMo alloy steel (quenched & tempered)
Quality Manufacturing Standards
Manufactured to strict quality protocols:
- Precision welding and assembly processes
- Full non-destructive weld testing
- Comprehensive component inspection
- Complete technical documentation
- Standard product warranty coverage
Application Suitability
Ideal for various light to medium-duty applications:
- Production lines requiring flexible layout
- Assembly workshops with frequent load positioning
- Warehouses needing maximum floor space utilization
- Manufacturing facilities with existing overhead tracks
- Maintenance areas with limited ground clearance
Technical Support and Configuration
For optimal performance:
- Professional installation guidance available
- Technical consultation for span and layout planning
- Complete user manuals and drawings provided
- Ongoing after-sales support
Maintenance Requirements
Simple and cost-effective maintenance:
- Regular inspection of wire rope and wheels
- Periodic lubrication of moving parts
- Brake system check and adjustment
- Electrical connection inspection
- Follow maintenance schedule
Contact technical support for suspension single girder overhead crane configurations, span calculations, installation guidance, and customized solutions. Send Inquiry today to receive a detailed quotation tailored to your workspace requirements.
