Articulating Jib Crane 1-5T – Flexible Folding Arm Lifting Solution
The Articulating Jib Crane 1-5T features novel structure with flexible extension, flexion, convenient operation, high efficiency, and energy saving. During use, press the button to lift the load, utilize beam bending and rotation to avoid obstacles in the working area, maximizing space utilization. Gentle hand push-pull reaches any position, ideal for machinery manufacturing, railways, chemicals, light industry production or maintenance, especially dense equipment lines, short-distance lifting, and frequent operations to improve efficiency.

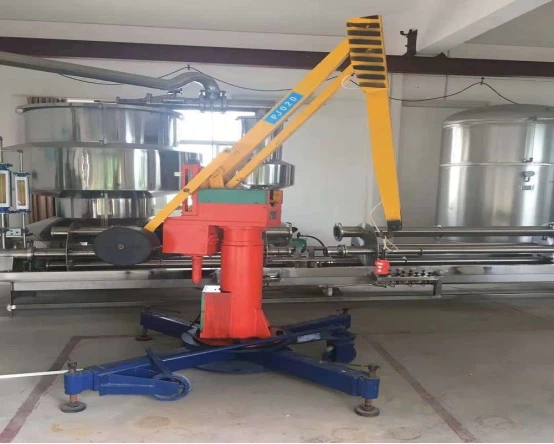

Articulating Jib Crane 1-5T
Technical Specifications and Performance Features
The crane provides 1-5 ton rated load with 1-6 meter cantilever and 1-5 meter lifting height for precise, flexible lifting. This articulating jib crane employs folding arm design to bypass obstacles, extend into equipment, and maximize working area in confined spaces with A3 work level.
The system supports safe internal equipment lifting, avoids collisions, and ensures reliable performance in high-frequency operations.
Mechanical Design Features
The articulating jib crane utilizes quality components for flexible operation:
- Two-part folding arm to bypass equipment/columns
- Cantilever length 1-6 meters
- Lifting height 1-5 meters
- Rated load 1-5 tons
- Beam bending and rotation mechanism
- Dustproof design for extended life The components enable extension into equipment, obstacle avoidance, and manual positioning with minimal effort.
Operational Features
The jib system provides:
- Button-activated load lifting
- Beam flexion/rotation for area maximization
- Hand push-pull for any position access
- Internal equipment material handling
- High-frequency operation suitability
Safety and Protection Systems
Standard safety features include:
- Perfect braking systems
- Dustproof design up to 1 million cycles
- Collision avoidance via folding arm
- Reliable free-maintenance technology
Installation and System Integration
The crane offers flexible setup options:
- Low site requirements near workstations
- Suitable for dense equipment environments
- Integration with production lines
Control System Compatibility
The system accepts:
- Button control for lifting
- Manual push-pull positioning
- Standard interfaces
Technical Performance Data
Standard Specifications:
- Model: Articulating Jib Crane
- Rated load: 1-5 tons
- Cantilever length: 1-6 meters
- Lifting height: 1-5 meters
- Work level: A3
- Product certification: ISO, CE
- Design standard: GB3811
Performance:
- Operation: Folding arm flexion/rotation
- Advantages: Obstacle bypass, internal extension
- Maintenance: Free-maintenance design
Quality Manufacturing Standards
The crane follows established protocols:
- Best technology for safety/efficiency
- Dustproof components
- Comprehensive braking integration
- Certification compliance
Application Suitability
The articulating jib crane serves various applications:
- Machinery manufacturing production lines
- Railway, chemical, light industry maintenance
- Dense equipment short-distance lifting
- Machine tool loading internal transport
- Frequent operations in small workstations
Technical Support and Configuration
For proper system operation:
- Installation guidance for site conditions
- Consultation on cantilever configuration
- User documentation provided
- Ongoing support available
Maintenance Requirements
The system requires:
- Periodic braking system checks
- Dustproof component inspection
- Structural verification
- Minimal maintenance schedules
Contact technical support for specific Articulating Jib Crane configurations, folding arm setups, and integration for your flexible lifting applications.
